Toyota CAMRY 阀体和滤油网(ATM) — Figure 3512

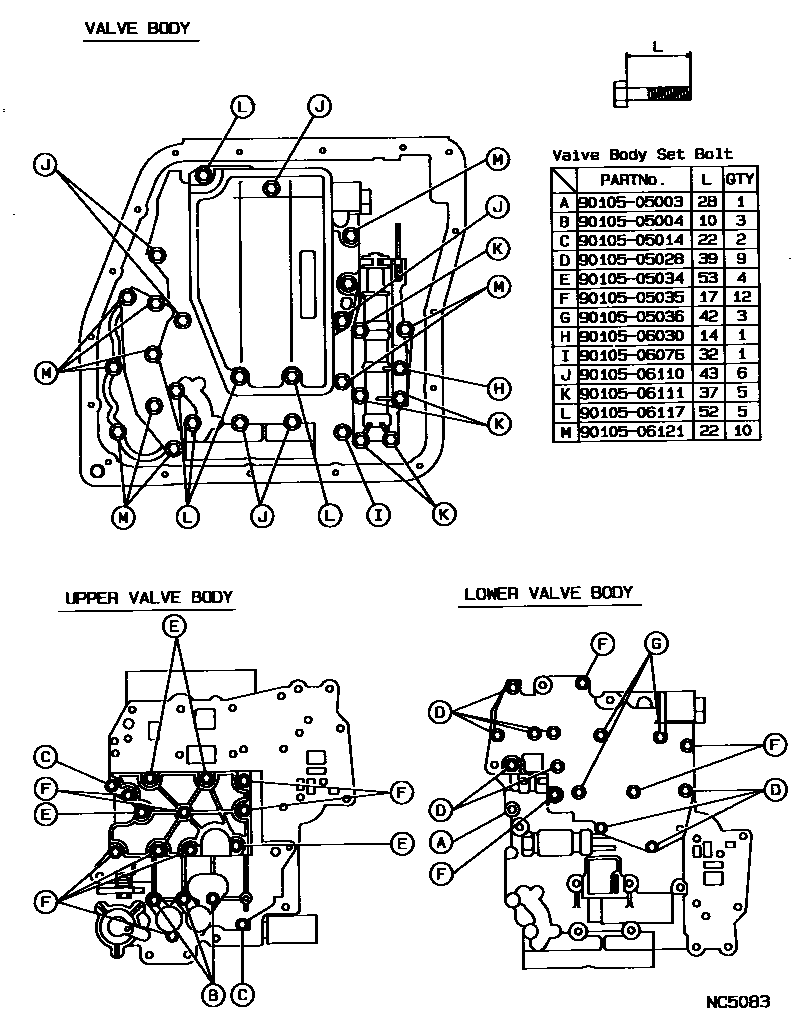

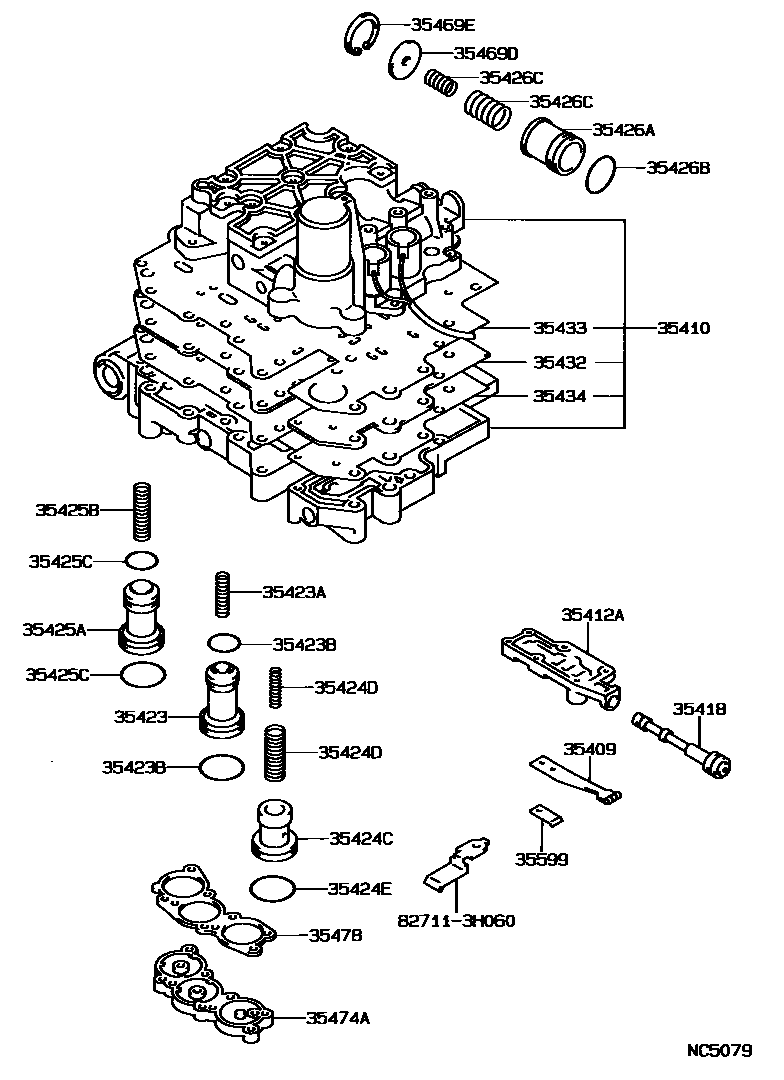

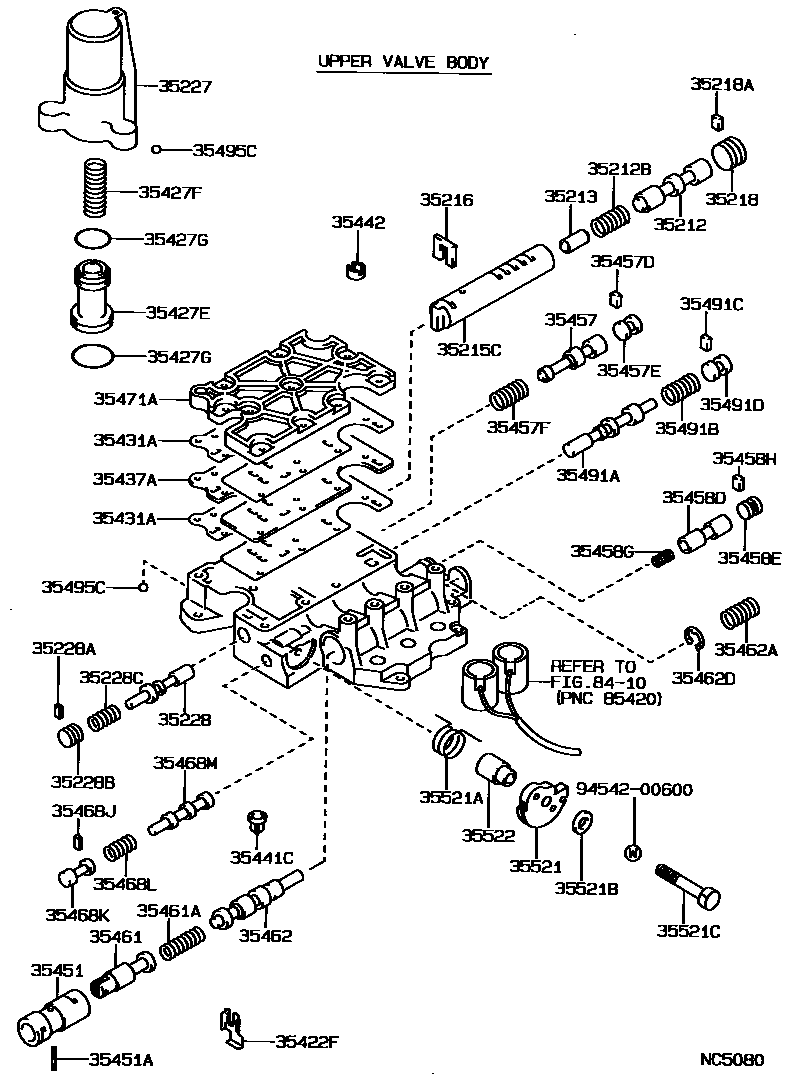

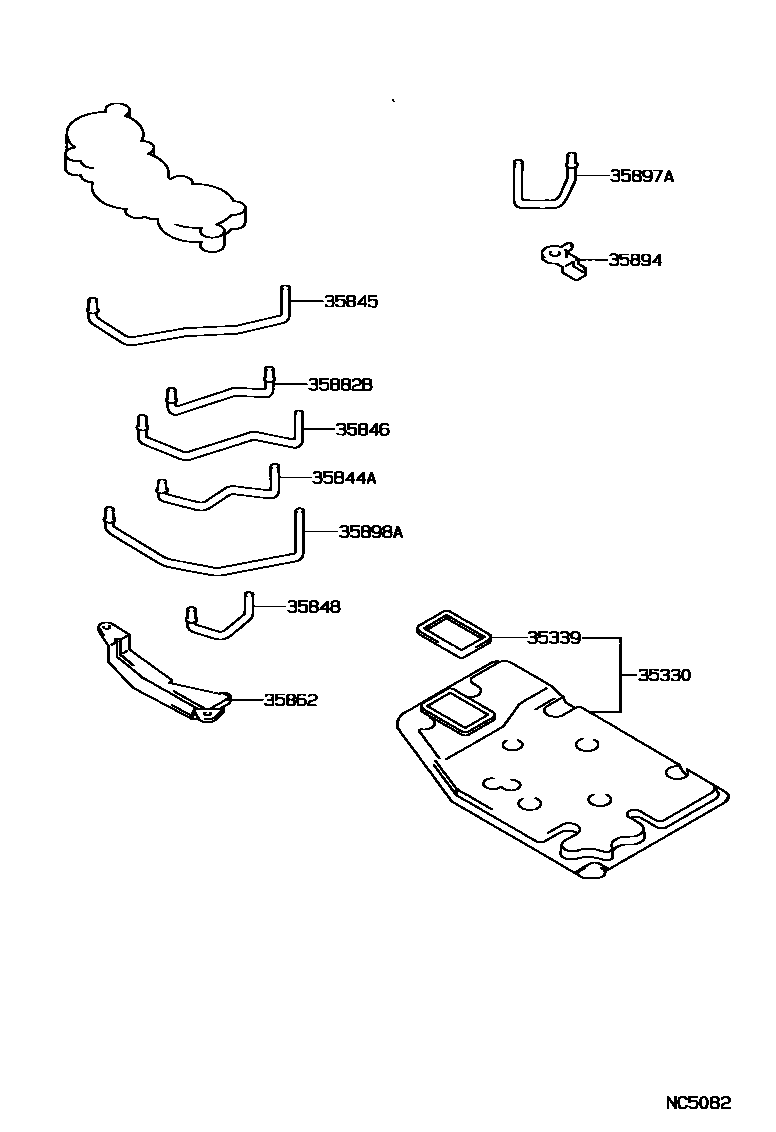

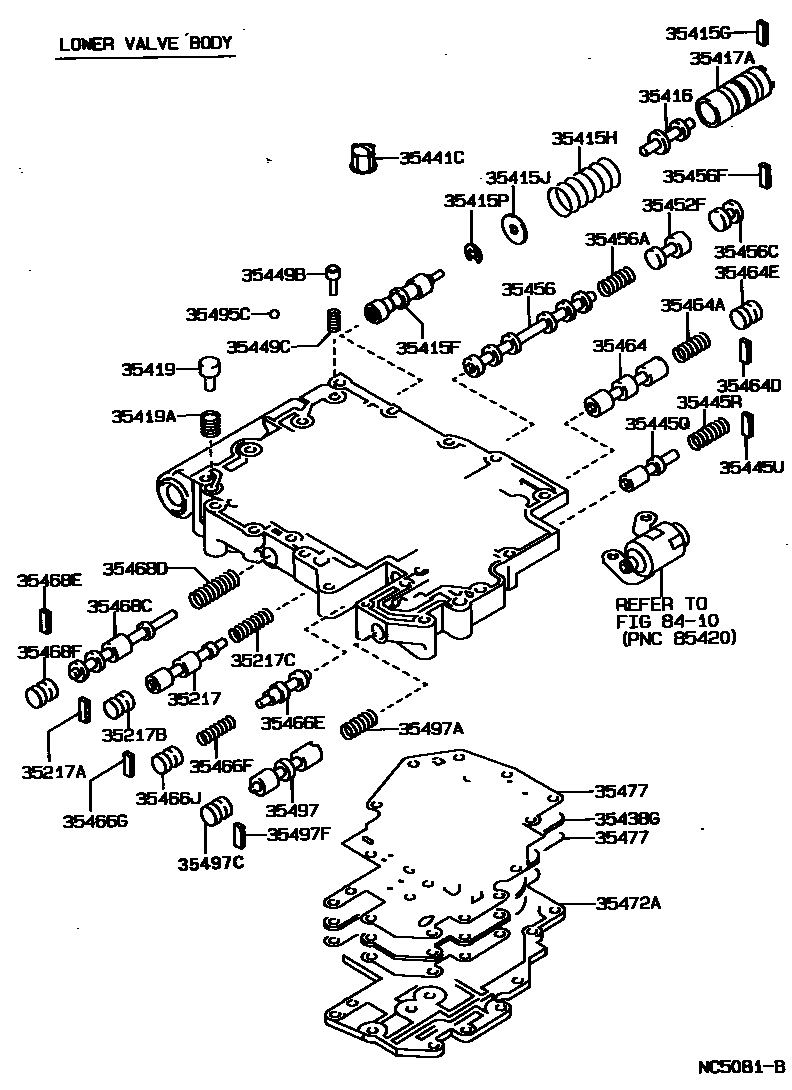

Toyota CAMRY EPC diagram 3512, 阀体和滤油网(ATM), with 5 images and 127 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 35212 | lock relay valve | 35212-32010 |
| 35212B | Compression spring (for locking relay valve) | 90501-07023 |
| 35213 | Lock relay control valve | 35213-32010 |
| 35215C | No. 1 locking relay valve sleeve | 35215-32010 |
| 35216 | Valve sleeve stop | 35216-32020 |
| 35217 | No. 2 accumulator control valve | 35217-32010 |
| 35217A | Straight key (for No. 2 accumulator control valve) | 90282-03001 |
| 35217B | Plunger (for No. 2 accumulator control valve) | 90339-04003 |
| 35217C | compression spring | 90501-06034 |
| 35218 | Lock relay valve plunger | 35218-32010 |
| 35218A | Straight key (for locking the relay valve plunger) | 90282-03011 |
| 35227 | B-0 accumulator cylinder | 35227-32011 |
| 35228 | Second gear regulator valve | 35228-32010 |
| 35228A | Straight key (for second-speed regulator valve) | 90282-03011 |
| 35228B | Plunger (for second-speed regulator valve) | 90339-04025 |
| 35228C | Compression spring (for second-speed regulator valve) | 90501-09084 |
| 35330 | Valve body oil filter assembly | 35330-32030 |
| 35339 | Oil filter gasket | 35339-32020 |
| 35409 | Manual lock spring sub-assembly | 35409-32020 · 35409-32030 |
| 35410 | Transmission valve body assembly | 35410-32090 |
| 35412A | Manual valve body | 35412-32020 |
| 35415F | Main regulator valve | 35415-32020 · 35415-32021 |
| 35415G | Straight key (for main regulator valve) | 90282-03001 |
| 35415H | Compression spring (for main regulator valve) | 90501-16065 · 90501-16120 |
| 35415J | Gasket (for main regulator valve) | 94614-10600 |
| 35415P | E-ring (for main regulator valve) | 90523-06004 |
| 35416 | No. 1 main regulator valve plunger | 35416-32020 |
| 35417A | Main regulator valve sleeve | 35417-32020 · 35417-32021 |
| 35418 | Manual valve | 35418-32010 |
| 35419 | No. 1 one-way valve | 35419-32010 |
| 35419A | Compression spring (for one-way valve) | 90501-10056 |
| 35422F | Valve damping stop | 35422-32020 |
| 35423 | B-2 Accumulator Piston | 35403-32010 |
| 35423A | Compression spring (for B-2 accumulator piston) | 90501-21004 · 90501-25031 |
| 35423B | O-ring (for B-2 accumulator piston) | 90301-21006 · 90301-30005 |
| 35424C | C-1 Accumulator Piston | 35424-32020 · 35424-32021 |
| 35424D | Compression spring (for C-1 accumulator piston) | 90501-29018 · 90501-29029 · 90501-32026 |
| 35424E | O-ring (for C-1 accumulator piston) | 90301-30005 · 90301-36006 |
| 35425A | C-2 Accumulator Piston | 35405-32010 |
| 35425B | Compression spring (for C-2 accumulator piston) | 90501-20094 · 90501-20126 |
| 35425C | O-ring (for C-2 accumulator piston) | 90301-25002 · 90301-34007 |
| 35426A | C-0 Accumulator Piston | 35426-32020 |
| 35426B | O-ring (for C-0 accumulator piston) | 90301-30005 |
| 35426C | Compression spring (for C-0 accumulator piston) | 90501-26036 · 90501-29019 |
| 35427E | B-0 accumulator piston | 35427-32010 |
| 35427F | Compression spring (for B-0 accumulator piston) | 90501-18077 · 90501-18097 |
| 35427G | O-ring (for B-0 accumulator piston) | 90301-20002 · 90301-25002 |
| 35431A | Upper body cover gasket | 35431-32021 |
| 35432 | No. 1 valve body plate | 35432-32040 |
| 35433 | No. 1 valve body gasket | 35433-32031 · 35433-32040 |
| 35434 | No. 2 valve body gasket | 35434-32031 · 35434-32040 |
| 35437A | Upper valve body cover | 35437-32020 |
| 35438G | No. 2 valve body plate | 35438-32010 |
| 35441C | Solenoid valve oil filter | 35441-32010 · 35441-32020 |
| 35442 | Throttle regulator oil filter | 35442-32020 |
| 35445Q | Low gear coast regulator valve | 35445-32010 |
| 35445R | Compression spring (for low range coast regulator valve) | 90501-09086 |
| 35445U | Straight key (for low speed coast regulator valve) | 90282-03002 |
| 35449B | Pressure reducing valve | 35449-32010 |
| 35449C | Compression spring (for pressure reducing valve) | 90501-09032 |
| 35451 | Throttle valve sleeve | 35451-32010 |
| 35451A | Direct sales (with throttle sleeve) | 90250-03036 |
| 35452F | 2nd-3rd gear shift valve plunger | 35452-32010 |
| 35456 | 2nd-3rd gear shift valve | 35456-32030 |
| 35456A | Compression spring (for 2-3 gear shift valve) | 90501-09083 |
| 35456C | Plunger (for 2-3 gear shift valve) | 90339-05017 |
| 35456F | Straight key (for 2-3 gear shift valve) | 90282-03001 |
| 35457 | Throttle regulator valve | 35457-32010 |
| 35457D | Straight key (for throttle regulator valve) | 90282-03011 |
| 35457E | Plunger (for throttle regulator valve) | 90339-04003 |
| 35457F | Compression spring (for throttle regulator valve) | 90501-09037 |
| 35458D | reverse valve | 35458-32010 |
| 35458E | Plunger (for reverse valve) | 90339-04002 |
| 35458G | Compression spring (for reverse valve) | 90501-06026 |
| 35458H | Straight key (for reverse valve) | 90282-03001 |
| 35461 | Downshift plug | 35408-32010 |
| 35461A | Compression spring (for downshift plug) | 90501-10054 |
| 35462 | throttle valve | 35462-32010 |
| 35462A | Compression spring (for throttle valve) | 90501-07022 |
| 35462D | E-ring (for throttle valve) | 90523-06023 |
| 35464 | 1-2 gear shift valve | 35464-32030 |
| 35464A | Compression spring (for 1-2 gear shift valve) | 90501-09088 · 90501-09116 |
| 35464D | Straight key (for 1-2 gear shift valve) | 90282-03011 |
| 35464E | Plunger (for 1-2 gear shift valve) | 90339-04025 |
| 35466E | Second gear lock valve | 35466-32010 |
| 35466F | Compression spring (for second gear lock valve) | 90501-06047 |
| 35466G | Straight key (for second gear lock valve) | 90282-03002 |
| 35466J | Plunger (for second gear lock valve) | 90339-04002 |
| 35468C | Secondary regulator valve | 35468-32030 |
| 35468D | Compression spring (for secondary regulator valve) | 90501-14115 |
| 35468E | Straight key (for secondary regulator valve) | 90282-03003 |
| 35468F | Plunger (for secondary regulator valve) | 90339-04025 |
| 35468J | Straight key (for B-1 throttle control valve) | 90282-03002 |
| 35468K | Plunger (for B-1 throttle control valve) | 90339-04022 |
| 35468L | Compression spring (for B-1 throttle control valve) | 90501-08100 |
| 35468M | B-1 Throttle Control Valve | 35468-32020 |
| 35469D | Spacer (for C-0 accumulator piston) | 35469-32020 |
| 35469E | Snap ring (for C-0 accumulator piston spacer) | 96151-03700 |
| 35471A | Upper valve body cover | 35471-32020 |
| 35472A | Lower valve body cover | 35472-32060 |
| 35474A | Accumulator cover | 35474-32030 |
| 35477 | Valve body cover gasket | 35477-32041 |
| 35478 | Accumulator cover gasket | 35478-32020 |
| 35491A | No. 1 accumulator control valve | 35491-32020 |
| 35491B | Compression spring (for No. 1 accumulator control valve) | 90501-10047 |
| 35491C | Straight key (for No. 1 accumulator control valve) | 90282-03011 |
| 35491D | Plunger (for No. 1 accumulator control valve) | 90339-04025 |
| 35495C | One-way ball No. 1 | 35495-22020 |
| 35497 | 3rd-4th gear shift valve | 35497-32030 |
| 35497A | Compression spring (for 3-4 gear shift valve) | 90501-09083 |
| 35497C | Plunger (for 3-4 gear shift valve) | 90339-04025 |
| 35497F | Straight key (for 3-4 gear shift valve) | 90282-03011 |
| 35521 | throttle cam | 35521-32020 |
| 35521A | Spring (for throttle cam return) | 90508-11003 |
| 35521B | Gasket (for throttle cam assembly) | 90201-06472 |
| 35521C | Bolt (for throttle cam assembly) | 90101-06021 |
| 35522 | Throttle valve cam pin | 35522-22010 |
| 35599 | Manual locking spring cover | 35599-32010 · 35599-32020 |
| 35844A | No. 1 accumulator back pressure pipe | 35844-32030 |
| 35845 | Rear clutch accumulator tube | 35845-32020 |
| 35846 | brake accumulator pipe | 35846-32030 |
| 35848 | Forward clutch accumulator tube | 35848-32020 |
| 35862 | Accumulator fuel supply pipe bracket | 35862-32020 |
| 35882B | Rear servo oil supply pipe | 35882-32010 |
| 35894 | Accumulator tube bracket | 35894-32010 |
| 35897A | No. 1 first and reverse brake pipe | 35897-32010 |
| 35898A | No. 2 accumulator back pressure pipe | 35898-32010 |
