Toyota CAMRY 变速器壳和油底壳(ATM) — Figure 3503

Toyota CAMRY EPC diagram 3503, 变速器壳和油底壳(ATM), with 1 images and 28 PNC and OE references.

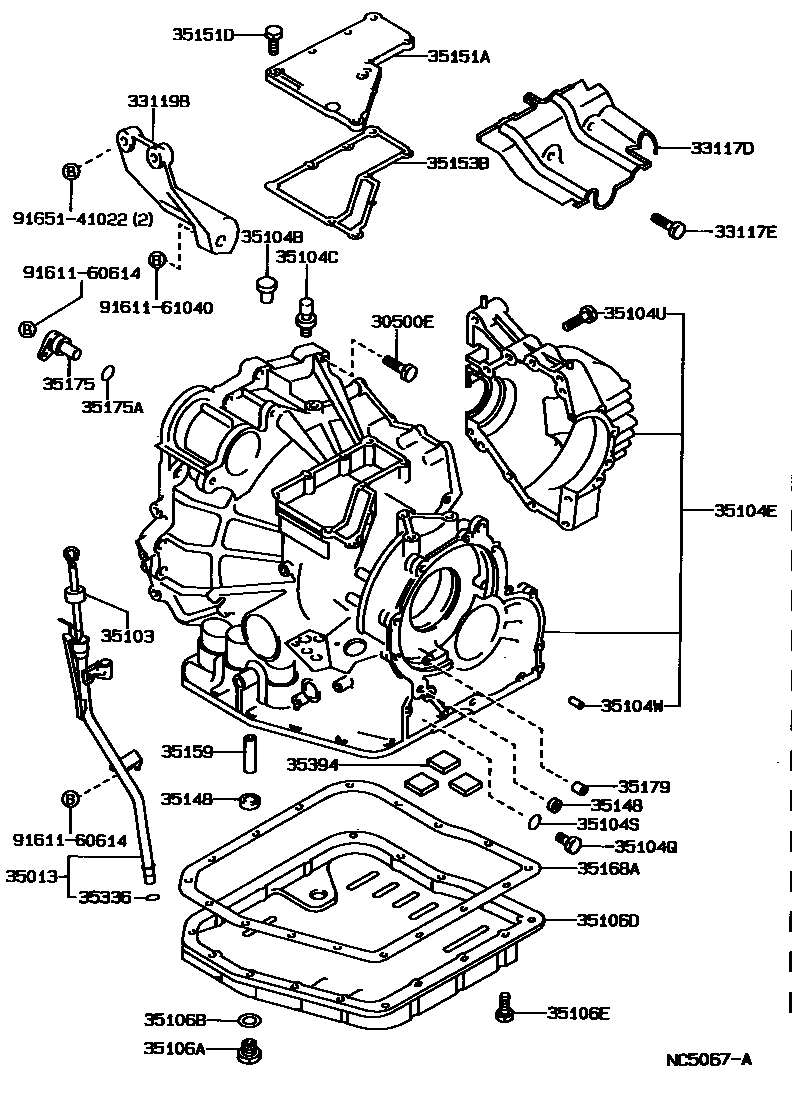

Toyota CAMRY 变速器壳和油底壳(ATM) EPC diagram — NC5067A
变速器壳和油底壳(ATM) — NC5067A (198808 – 999999)

PNC and OE references

PNCPart nameOE numbers
30500EBolts (for securing transaxle and engine)90105-08040 · 90105-10077 · 90119-12250 · 91619-61245 · 91619-61260 · 91619-61265
33117Dautomatic transmission guard plate33117-32040
33117EBolts (for automatic transmission guard)90105-08040
33119BLeft reinforcement plate (ATM)33119-32040
35013Transmission oil pipe sub-assembly35013-32080
35103Transmission oil level scoring assembly35103-32041 · 35103-32042
35104BVentilation plug No. 1 (ATM)90930-03001
35104CVentilation plug No. 2 (ATM)90930-03119
35104EAutomatic transmission axle housing sub-assembly35104-32091 · 35104-32092 · 35104-32094
35104QNo. 1 screw plug (for transmission axle housing)90341-08001
35104SO-ring (for transmission axle housing plug No. 1)90301-06196
35104UBolts (for transaxle housing)90105-10222 · 90105-10223 · 90105-10224
35104WDirect sales (for transmission axle housing)90250-10232
35106ADrain plug sub-assembly (ATM)90341-18016
35106BDrain plug gasket (ATM)90430-18008
35106DAutomatic transmission axle oil pan sub-assembly35106-32030 · 35106-32031 · 35106-32032 · 35106-32040 · 35106-32041
35106EBolts (for transaxle oil pan)90119-06173
35148Governor oil supply pipe No. 1 gasket35148-16010
35151ATransmission axle housing upper cover35151-32011
35151DBolts (for transmission axle housing upper cover)90105-06113 · 90109-08167 · 90109-10120
35153BTransmission axle housing upper cover gasket35153-32010
35159brake drum gasket35159-32011
35168AAutomatic transaxle oil pan gasket35168-32020
35175No. 2 transmission axle housing cover35175-32010
35175AO-ring (for transmission axle housing cover)90301-21002
35179overdrive brake pad35179-32010
35336O-ring (for transmission filler pipe)90301-09173
35394Oil filter magnet (for transmission)35394-30011
