Toyota CAMRY 燃油喷射系统 — Figure 2211

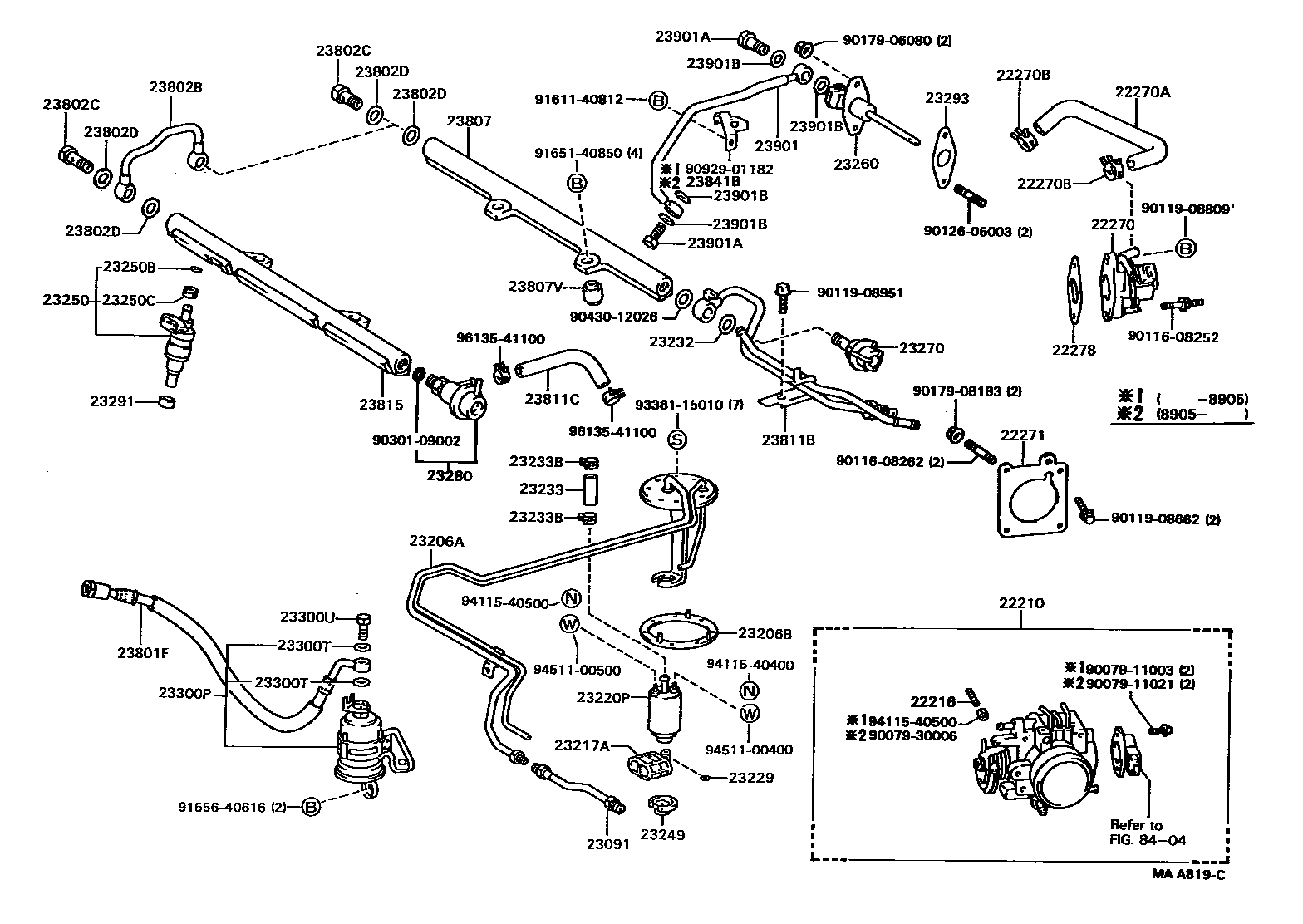

Toyota CAMRY EPC diagram 2211, 燃油喷射系统, with 1 images and 41 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 22210 | Throttle body assembly | 22210-62030 · 22210-62060 · 22210-62100 |
| 22216 | Deceleration buffer adjustment screw | 22216-62050 · 22216-74010 |
| 22270 | Idle speed control valve assembly (for throttle body) | 22270-62010 |
| 22270A | Air hose No. 1 (for idle speed control valve) | 17341-62010 |
| 22270B | Clip (for air hose) | 90467-23003 |
| 22271 | Throttle body gasket | 22271-62020 |
| 22278 | Idle speed control valve gasket | 22278-62020 |
| 23091 | Fuel pump pipe sub-assembly | 23091-74060 · 23091-74070 |
| 23206A | fuel pump bracket | 23206-74460 · 23206-74480 |
| 23206B | fuel pump bracket gasket | 77169-14010 |
| 23217A | fuel pump filter | 23217-16030 · 23217-16043 |
| 23220P | fuel pump assembly | 23220-16084 · 23220-43070 |
| 23229 | Clip (for fuel pump filter) | 23229-16010 |
| 23232 | Gasket (for fuel pump hose) | 23232-28010 |
| 23233 | fuel pump hose | 23239-16010 |
| 23233B | Clamp (for fuel pump hose) | 90467-13001 |
| 23249 | Rubber gasket (for fuel pump) | 23249-74150 |
| 23250 | Fuel injector assembly | 23209-62020 |
| 23250B | O-ring (for fuel injector) | 90301-07001 |
| 23250C | Gasket (for injector) | 90480-13005 |
| 23260 | Cold start injector assembly | 23260-69035 |
| 23270 | Fuel pressure pulsation damper assembly | 23270-62010 |
| 23280 | Fuel pressure regulator assembly | 23280-62020 |
| 23291 | Injector vibration isolation pad | 23291-41010 |
| 23293 | Cold start injector gasket | 23293-62020 |
| 23300P | Fuel filter (for EFI) | 23030-79025 |
| 23300T | Gasket (for fuel filter) | 90430-12005 |
| 23300U | Connector bolt (for fuel filter) | 90401-12097 |
| 23801F | No. 1 fuel hose | 90923-01354 |
| 23802B | No. 2 fuel pipe sub-assembly | 23812-62010 |
| 23802C | Connector bolt (for No. 2 fuel pipe) | 90401-12015 |
| 23802D | Gasket (for No. 2 fuel line) | 90430-12005 |
| 23807 | Oil pipe sub-assembly | 23814-62021 |
| 23807V | No. 1 spacer (for oil pipe) | 90561-08020 |
| 23811B | No. 1 fuel pipe | 23811-62021 |
| 23811C | Fuel hose (for fuel line to pressure regulator) | 95333-06020 |
| 23815 | No. 2 oil pipeline | 23815-62020 · 23815-62021 |
| 23841B | No. 1 fuel pipe clamp (for EFI) | 23841-62010 |
| 23901 | Fuel pipe sub-assembly | 23901-62010 · 23901-62011 · 23901-62020 |
| 23901A | Connector bolt (for fuel pipe) | 90401-08003 · 90401-08010 |
| 23901B | Gasket (for fuel lines) | 90430-08005 |
