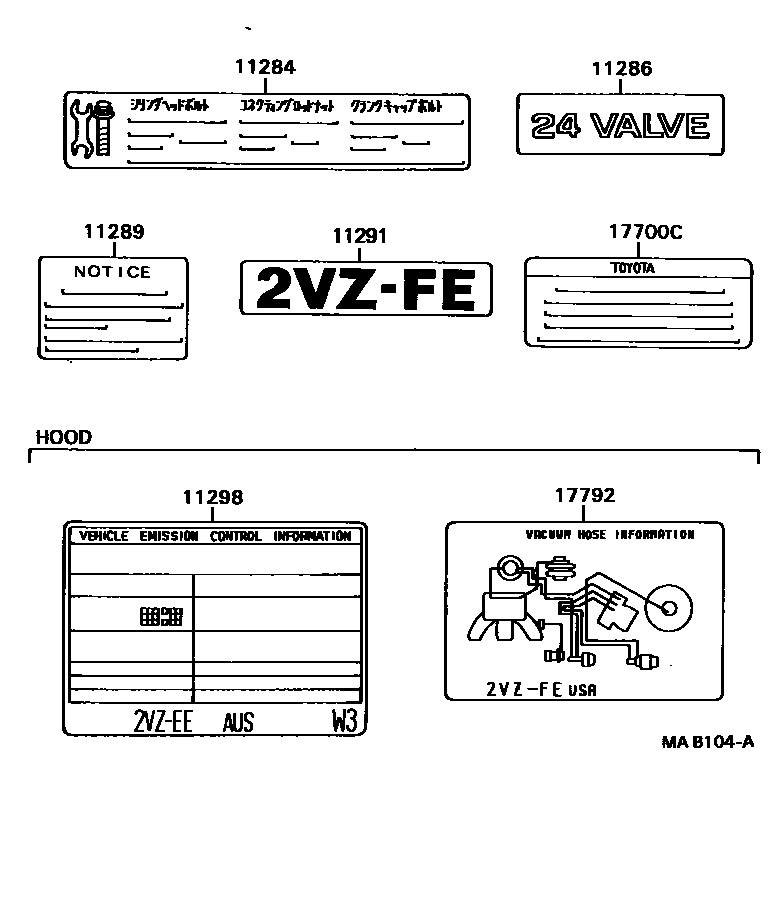

Toyota CAMRY 警示铭牌和名称铭牌(发动机) — Figure 1709
Toyota CAMRY EPC diagram 1709, 警示铭牌和名称铭牌(发动机), with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11284 | Engine bolt information plate | 11284-62010 |
| 11286 | Engine specification plate | 11286-62010 |
| 11289 | Spark plug warning nameplate | 11289-73020 |
| 11291 | Engine name plate | 11291-62020 |
| 11298 | Emission control information plate | 11298-62030 |
| 17700C | Air filter warning plate (for engine models) | 17791-74010 |
| 17792 | Engine vacuum hose information plate | 17792-62010 · 17792-62030 · 17792-62050 |
