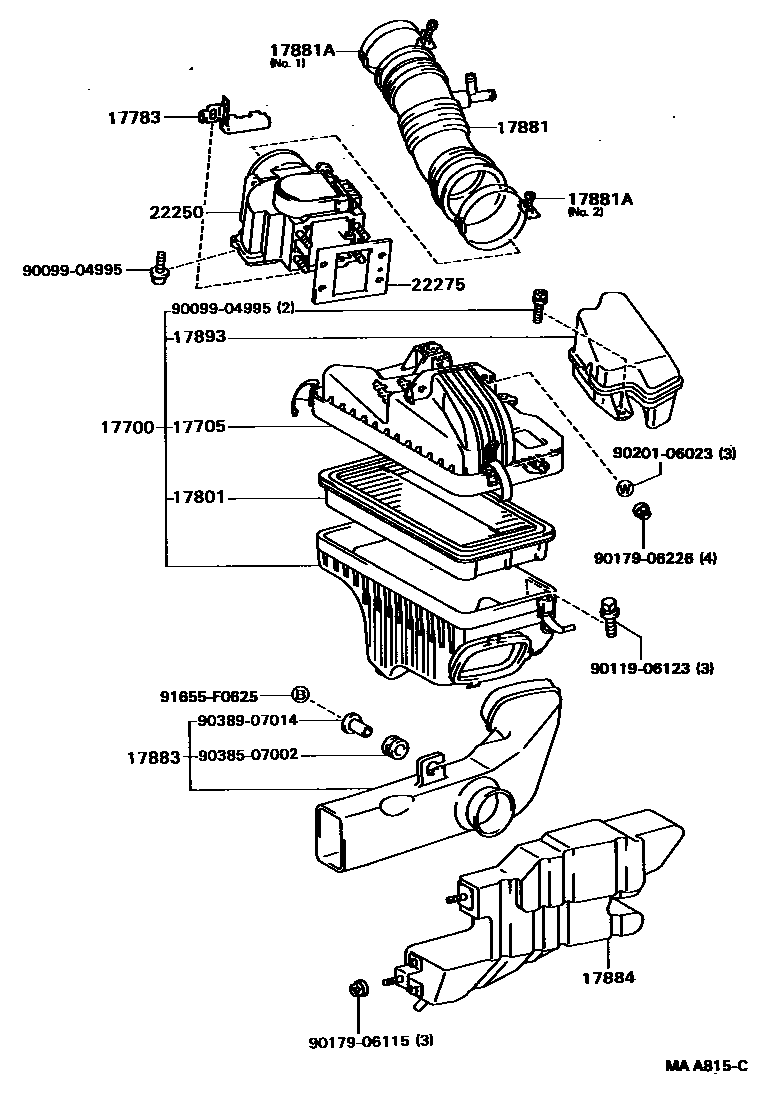

Toyota CAMRY Air Cleaner — Figure 1703
Toyota CAMRY EPC diagram 1703, Air Cleaner, with 1 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17700 | air filter assembly | 17700-62020 |
| 17705 | Air filter cover sub-assembly | 17705-62020 |
| 17783 | air filter baffle | 17783-74030 |
| 17801 | Air filter element sub-assembly | 17801-74020 |
| 17881 | No. 1 air cleaner hose | 17881-62020 |
| 17881A | Clamp (for No. 1 air cleaner hose) | 96111-10750 · 96111-10900 |
| 17883 | No. 3 air cleaner hose | 17882-63110 |
| 17884 | No. 4 air cleaner hose | 17883-62010 · 17883-62011 |
| 17893 | Intake resonator | 17893-62010 |
| 22250 | Intake air flow meter assembly | 22250-62020 |
| 22275 | air flow meter gasket | 22275-43010 |
