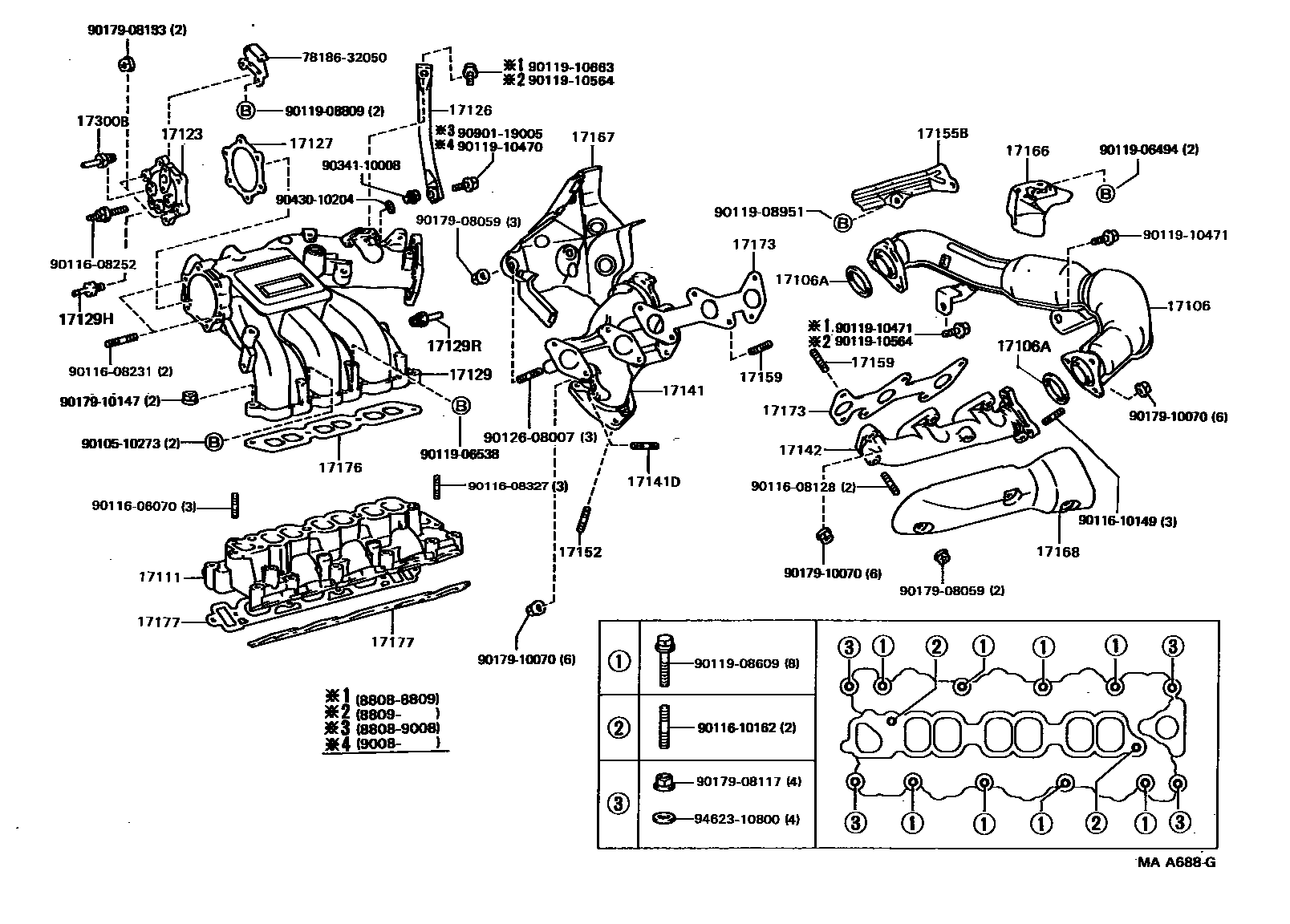

Toyota CAMRY Manifold — Figure 1701
Toyota CAMRY EPC diagram 1701, Manifold, with 1 images and 22 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17106 | Exhaust crossover pipe assembly | 17106-62011 · 17106-62012 |
| 17106A | Exhaust pipe gasket | 90917-06048 |
| 17111 | Intake Manifold | 17111-62020 |
| 17123 | Pressure tank cover | 17123-62010 · 17123-62011 |
| 17126 | No. 2 pressure tank stay | 17126-62010 |
| 17127 | Pressure tank cover gasket | 17127-62020 |
| 17129 | Intake pressure tank | 17109-62010 · 17109-62011 · 17109-62012 |
| 17129H | Connector No. 4 | 90404-51010 |
| 17129R | Headed tapered thread plug (for air intake surge tank) | 90345-51008 |
| 17141 | exhaust manifold | 17141-62020 |
| 17141D | Studs (for oxygen sensor) | 90116-08128 · 90126-08007 |
| 17142 | No. 2 exhaust manifold housing | 17142-62010 |
| 17152 | Studs (for manifold to exhaust) | 90116-10149 |
| 17155B | Exhaust manifold No. 5 heat shield | 17155-62010 |
| 17159 | Studs (for manifold to cylinder head) | 90116-08251 · 90116-10150 |
| 17166 | Exhaust manifold No. 4 heat shield | 17166-62011 |
| 17167 | Exhaust manifold No. 1 heat shield | 17167-62010 |
| 17168 | Exhaust manifold No.2 insulation pad | 17168-62010 |
| 17173 | Gasket (exhaust manifold to cylinder head) | 17173-62020 |
| 17176 | Gasket (intake surge tank to intake manifold) | 17176-62020 |
| 17177 | No. 1 gasket (intake manifold to cylinder head) | 17177-62030 |
| 17300B | Connector (for intake control valve) | 90404-51026 · 90404-51072 |
