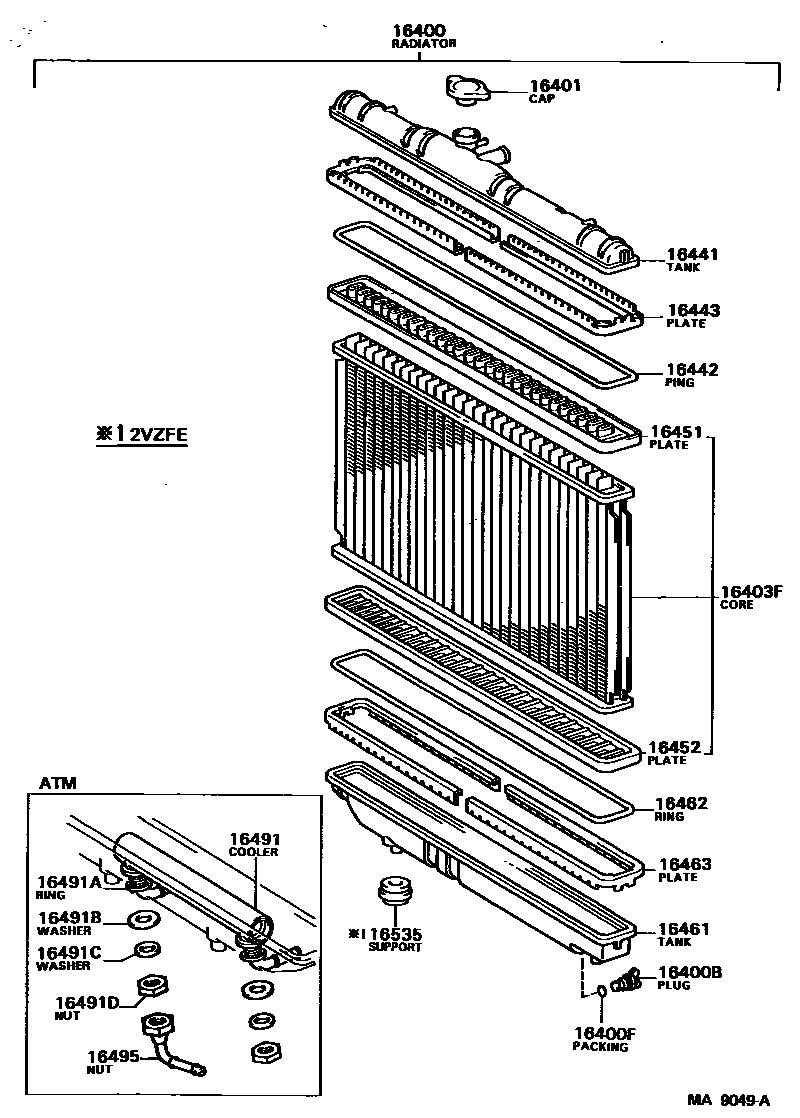

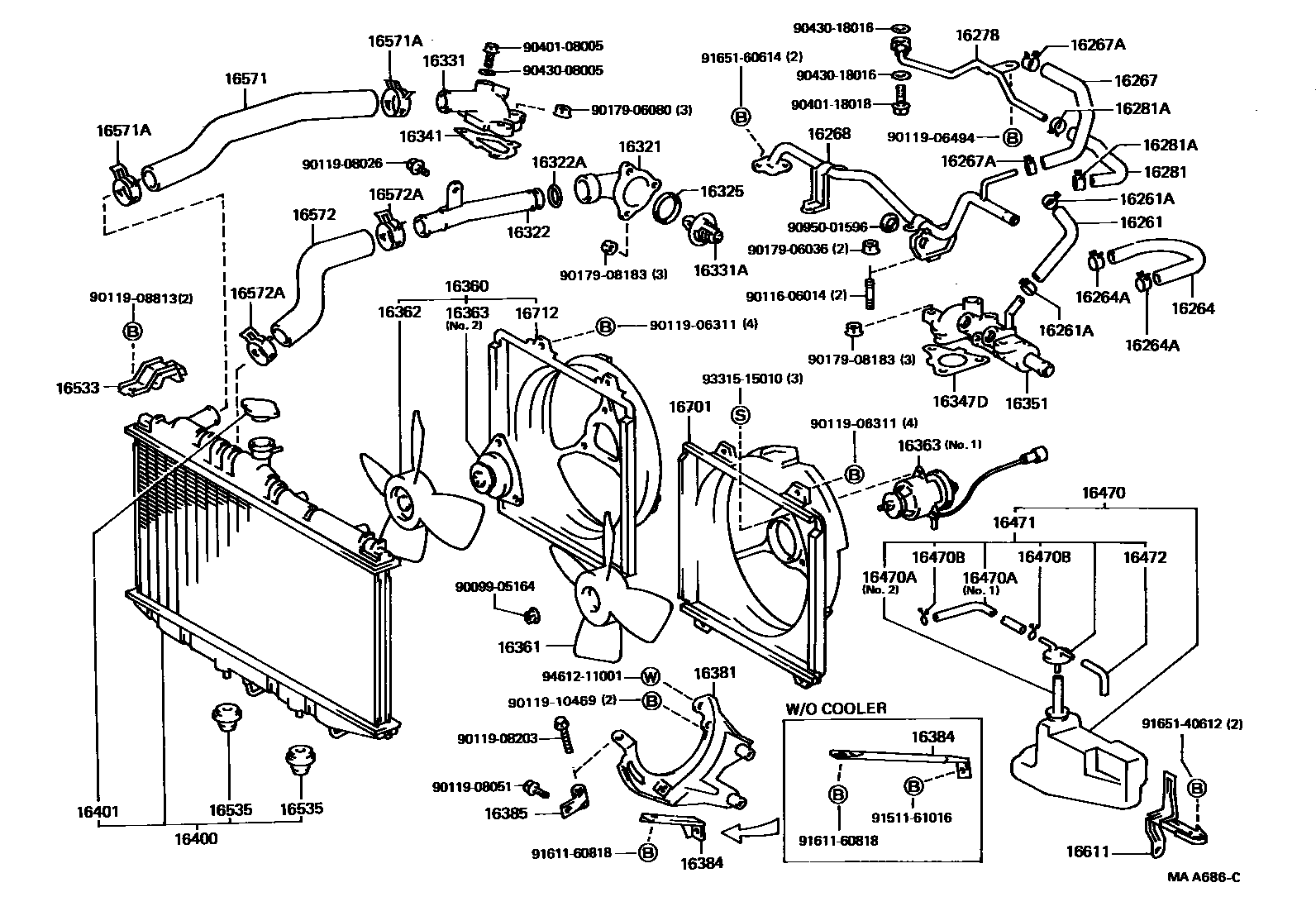

Toyota CAMRY RADIATOR & WATER OUTLET — Figure 1603
Toyota CAMRY EPC diagram 1603, RADIATOR & WATER OUTLET, with 2 images and 59 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16261 | HOSE, WATER BY-PASS | 16261-62010 |
| 16261A | CLAMP OR CLIP, WATER BY-PASS HOSE | 90467-13001 · 96135-41300 |
| 16264 | HOSE, WATER BY-PASS, NO.2 | 16264-62020 |
| 16264A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.2 | 90467-13001 · 96135-41300 |
| 16267 | HOSE, WATER BY-PASS, NO.3 | 16267-62010 |
| 16267A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.3 | 90467-13001 · 96135-41300 |
| 16268 | PIPE, WATER BY-PASS, NO.1 | 16268-62010 · 16268-62011 |
| 16278 | PIPE, WATER BY-PASS, NO.2 | 16278-62010 |
| 16281 | HOSE, WATER BY-PASS, NO.4 | 16281-62010 |
| 16281A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.4 | 90467-13001 · 96135-41300 |
| 16321 | water inlet | 16321-62010 |
| 16322 | PIPE, WATER INLET | 16322-62010 |
| 16322A | O-RING, WATER INLET | 96711-35031 |
| 16325 | GASKET, WATER INLET HOUSING, NO.1 | 16325-62010 |
| 16331 | Water outlet | 16331-62010 · 16331-62011 |
| 16331A | thermostat | 90916-03075 |
| 16341 | GASKET, WATER OUTLET | 16341-62020 |
| 16347D | water bypass liner | 16347-62020 |
| 16351 | water bypass outlet | 16351-62021 |
| 16360 | Blower assembly with hood | 88590-32110 |
| 16361 | Fan | 16361-64030 |
| 16362 | Fan No. 2 | 88453-32040 |
| 16363 | cooling fan motor | 16363-55010 · 88550-32060 |
| 16381 | Fan belt adjustment lever | 16381-62011 · 16381-62012 |
| 16384 | Fan belt adjustment lever bracket | 16384-62010 · 16384-62021 |
| 16385 | Fan belt adjustment slider | 16385-62010 |
| 16400 | Radiator assembly | 16400-62040 |
| 16400B | Radiator drain switch screw plug | 23322-54010 |
| 16400F | Seal (for radiator drain switch) | 96711-19007 |
| 16401 | Radiator cover sub-assembly | 16401-63010 |
| 16403F | Radiator core sub-assembly | 16403-62020 |
| 16441 | Radiator water tank | 16441-62010 |
| 16442 | O-ring (for radiator tank) | 16462-62010 |
| 16443 | Radiator upper tank locking plate | 16463-62010 |
| 16451 | Radiator core upper plate | 16452-62010 |
| 16452 | Radiator core lower plate | 16452-62010 |
| 16461 | Radiator lower tank | 16461-62020 |
| 16462 | O-ring (for radiator lower tank) | 16462-62010 |
| 16463 | Radiator lower tank locking plate | 16463-62010 |
| 16470 | Radiator reservoir assembly | 16470-62011 · 16470-62021 |
| 16470A | Hoses or tubes (for radiator reservoir) | 90445-12078 · 90445-12897 |
| 16470B | Clip or clip (for radiator reservoir hose) | 90467-11085 |
| 16471 | Liquid storage tank cover sub-assembly | 16405-62011 |
| 16472 | Breather hose | 85338-74040 |
| 16491 | Oil cooler (for ATM) | 16491-62040 |
| 16491A | O-ring (for automatic transmission oil cooler) | 16492-35080 · 16492-62060 |
| 16491B | Flat Washer (for automatic transmission oil cooler) | 16493-42141 |
| 16491C | Spring washer (for automatic transmission oil cooler) | 16494-42141 |
| 16491D | Nut (for automatic transmission oil cooler) | 16496-42141 · 16496-70290 |
| 16495 | Oil line nut (for automatic transmission oil cooler) | 16495-62030 |
| 16533 | Radiator upper bracket | 16533-64071 |
| 16535 | Radiator lower support | 16535-64021 |
| 16571 | Radiator water inlet hose | 16571-62010 |
| 16571A | Hose clamp or clip (for radiator water inlet) | 90467-37001 · 90467-37004 |
| 16572 | Radiator outlet hose | 16572-62010 |
| 16572A | Hose clamp or clip (for radiator outlet No. 1) | 90467-34003 |
| 16611 | Radiator reservoir bracket | 16611-74030 |
| 16701 | Fan cover sub-assembly | 16711-62020 |
| 16712 | No. 2 fan cover | 88454-32050 |
