Toyota CAMRY Water Pump — Figure 1601

Toyota CAMRY EPC diagram 1601, Water Pump, with 2 images and 2 PNC and OE references.

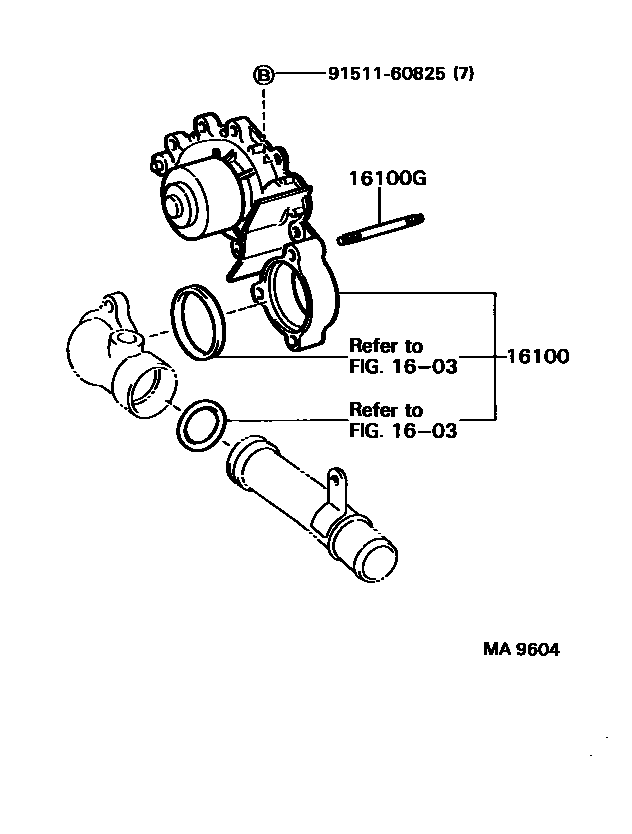

Toyota CAMRY Water Pump EPC diagram — MA9604
Water Pump — MA9604 (198808 – 199105)

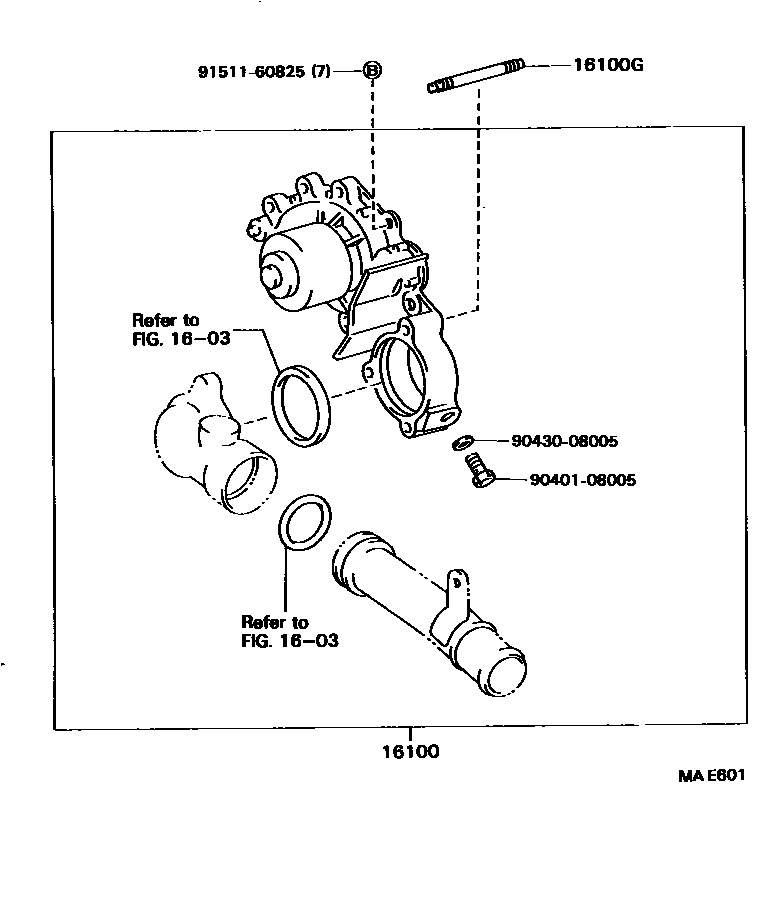

Toyota CAMRY Water Pump EPC diagram — MAE601
Water Pump — MAE601 (199105 – 999999)

PNC and OE references

PNCPart nameOE numbers
16100Engine water pump assembly16100-69206 · 16100-69305
16100GStuds (for water pump assembly)90116-08270
