Toyota CAMRY Engine Oil Pump — Figure 1501

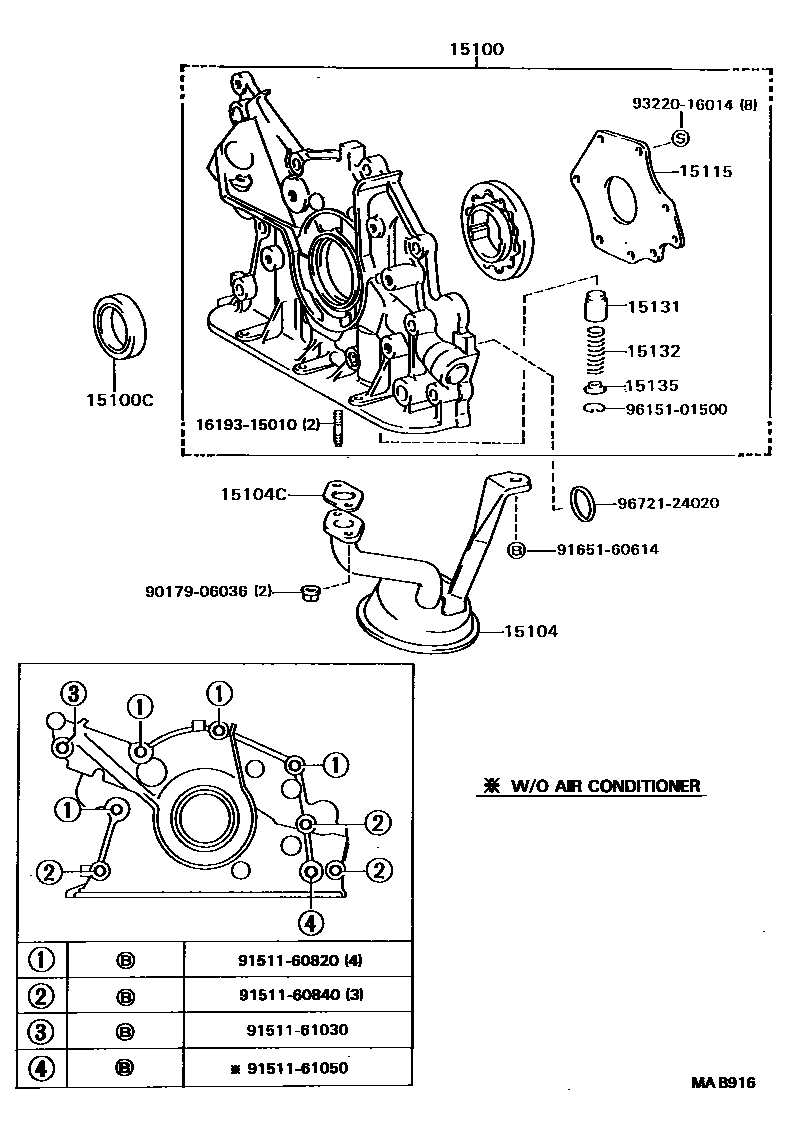

Toyota CAMRY EPC diagram 1501, Engine Oil Pump, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 15100 | Oil pump assembly | 15100-62020 |
| 15100C | Seals (for oil pump) | 90311-40006 · 90311-40013 |
| 15104 | Oil filter sub-assembly | 15104-62010 |
| 15104C | Gasket (for oil filter) | 15147-62020 |
| 15115 | oil pump cover | 15115-62010 |
| 15131 | Oil pump pressure reducing valve | 15131-24010 |
| 15132 | Oil pump pressure reducing valve spring | 15132-62010 |
| 15135 | Oil pump pressure reducing valve retaining ring | 15135-15010 |
