Toyota CAMRY Camshaft & Valve — Figure 1302

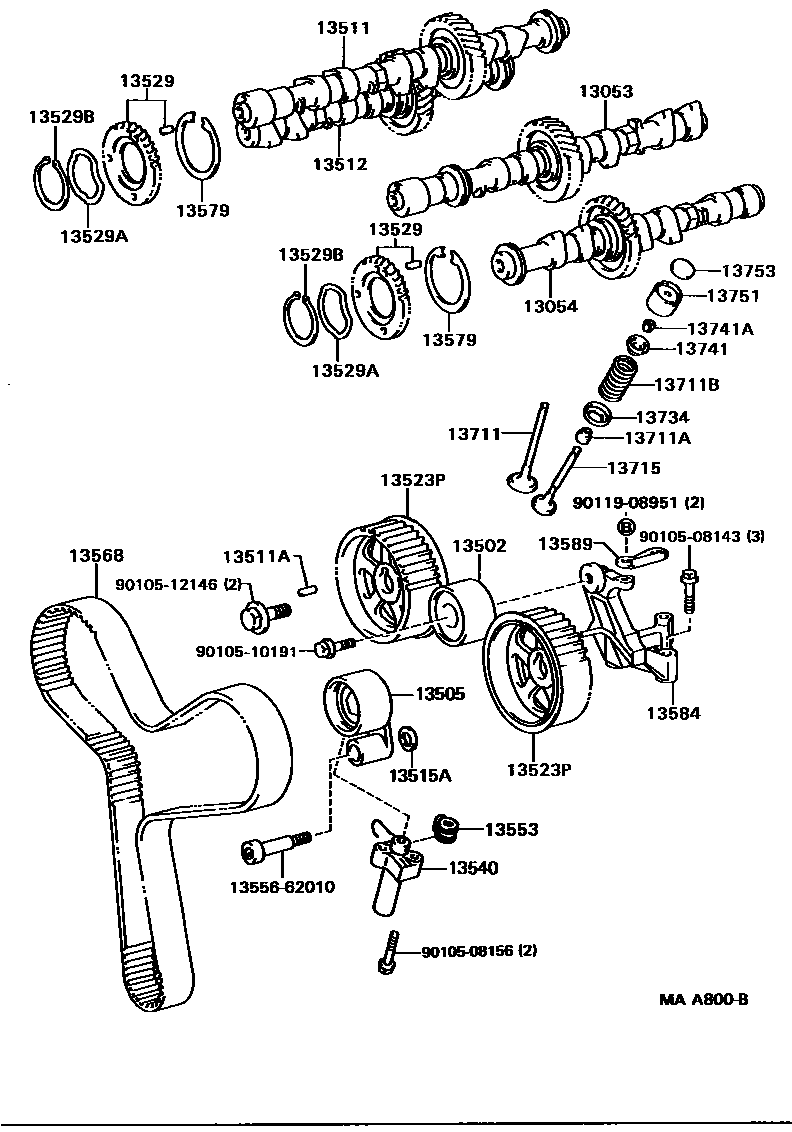

Toyota CAMRY EPC diagram 1302, Camshaft & Valve, with 1 images and 27 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 13053 | No. 3 camshaft sub-assembly | 13053-62010 |
| 13054 | No. 4 camshaft sub-assembly | 13054-62020 |
| 13502 | No. 2 timing belt idler pulley sub-assembly | 13503-62010 |
| 13505 | No. 1 timing belt idler pulley sub-assembly | 13505-62031 |
| 13511 | camshaft | 13501-62010 |
| 13511A | Direct pin (for camshaft locking pin) | 90250-05121 |
| 13512 | Camshaft No. 2 | 13502-62020 |
| 13515A | Flat washer (for distributor drive gear) | 90201-10098 |
| 13523P | Camshaft timing pulley | 13051-62010 |
| 13529 | Camshaft counter gear | 13529-62900 |
| 13529A | Wave Washer (for Camshaft Counter Gear) | 90206-42001 |
| 13529B | Shaft snap ring (for camshaft counter gear) | 90520-41004 |
| 13540 | No. 1 chain tensioner assembly | 13540-62011 |
| 13553 | Chain tensioner dust cover | 13553-62010 |
| 13568 | timing belt | 13568-62020 |
| 13579 | Camshaft timing gear bolt washer | 13579-62010 |
| 13584 | Timing belt idler bracket | 13584-62020 |
| 13589 | Idler gear bracket stay | 13589-62010 |
| 13711 | intake valve | 13711-62020 |
| 13711A | Oil seal or O-ring (for valve stem) | 90913-02066 |
| 13711B | Compression spring (for inner side) | 90504-30003 |
| 13715 | exhaust valve | 13715-62020 |
| 13734 | Valve spring seat | 13734-62010 |
| 13741 | Valve spring seat ring | 13741-16010 |
| 13741A | Valve spring seat lock plate | 90913-03021 |
| 13751 | valve lifter | 13751-16010 |
| 13753 | valve adjustment gasket | 13753-16020 · 13753-16040 · 13753-16060 · 13753-16080 · 13753-16100 · 13753-16120 · 13753-16140 · 13753-16160 · 13753-16180 · 13753-16200 · 13753-16220 · 13753-16240 · 13753-16260 · 13753-16280 · 13753-16300 · 13753-16320 · 13753-16340 |
