Toyota CAMRY Crankshaft & Piston — Figure 1301

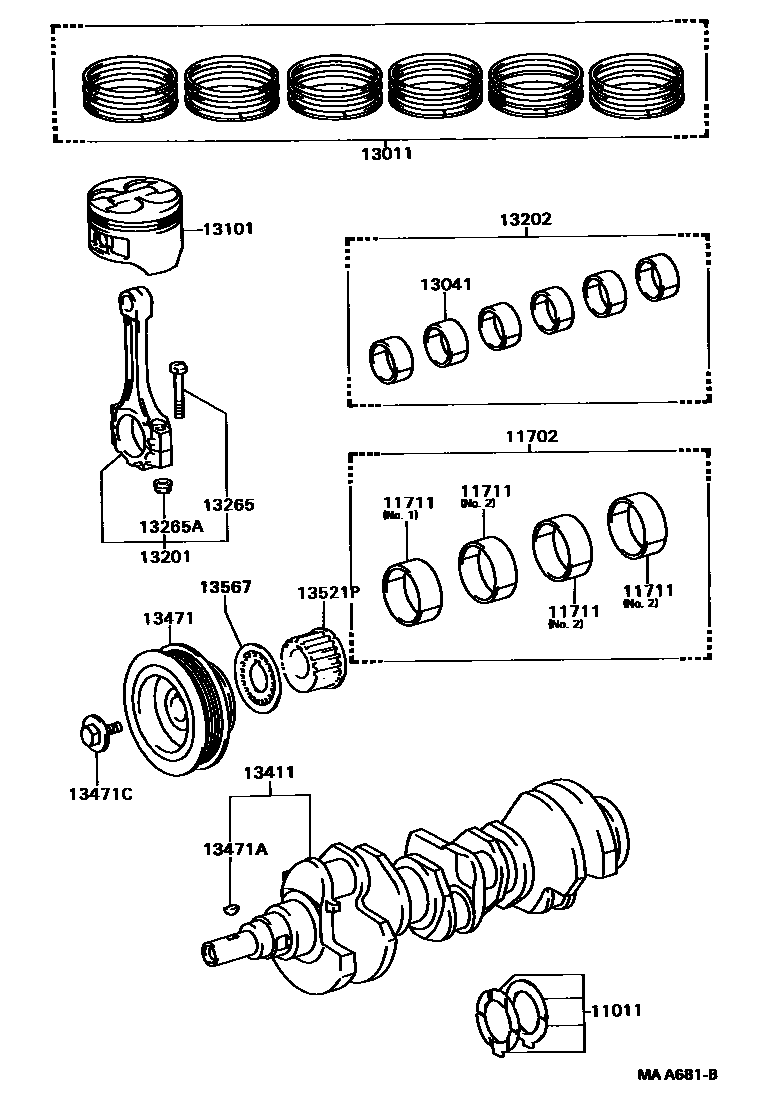

Toyota CAMRY EPC diagram 1301, Crankshaft & Piston, with 1 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11011 | Crankshaft thrust washer assembly | 11011-62010 |
| 11702 | crankshaft bearing assembly | 11704-62010 |
| 13011 | Piston ring assembly | 13011-62040 · 13013-62040 |
| 13101 | Piston sub-assembly with pin | 13103-62020 |
| 13201 | Connecting rod sub-assembly | 13201-69085 |
| 13202 | Connecting rod bearing assembly | 13204-62010 |
| 13265 | Connecting rod bolts | 13265-62010 |
| 13265A | Hexagonal nut (for connecting rod bolts) | 90179-08118 |
| 13411 | crankshaft | 13411-62901 |
| 13471 | crankshaft pulley | 13408-62010 |
| 13471A | Crankshaft key (for crankshaft pulley assembly) | 90280-05010 · 95161-20519 |
| 13471C | Bolt (for crankshaft pulley assembly) | 90105-16031 |
| 13521P | crankshaft timing pulley | 13521-62020 |
| 13567 | No. 2 timing belt guide | 13567-62010 |
