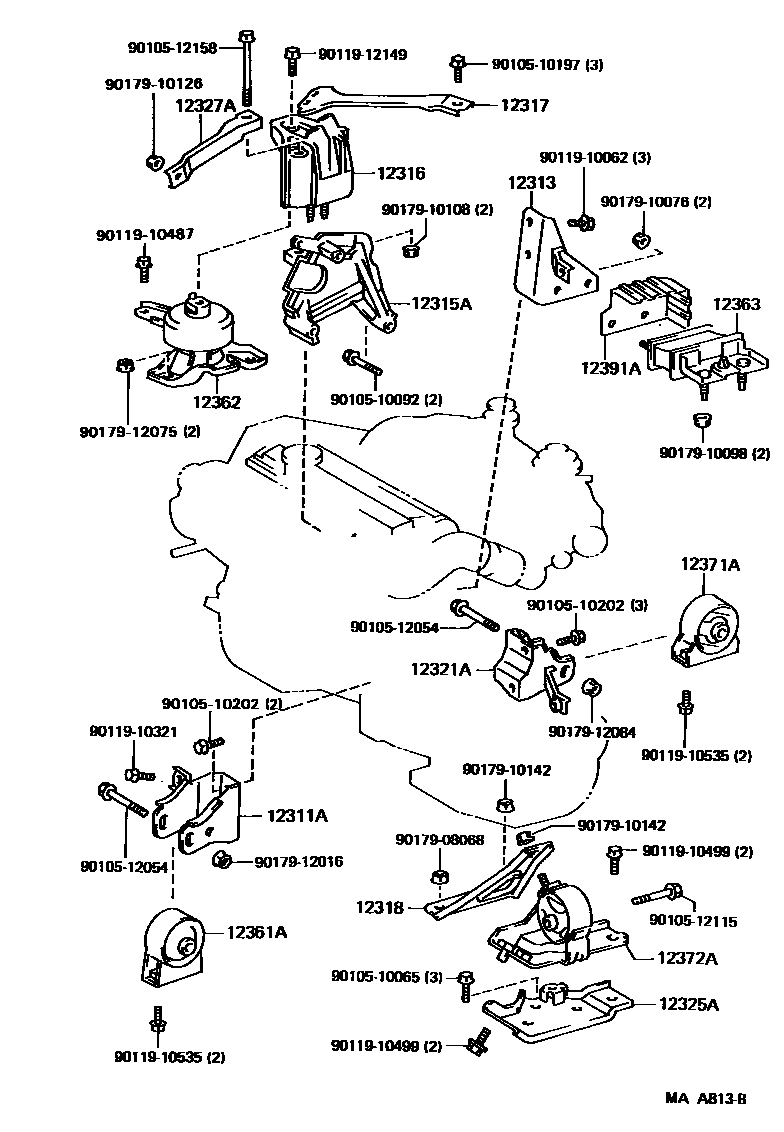

Toyota CAMRY Engine Mounting — Figure 1107
Toyota CAMRY EPC diagram 1107, Engine Mounting, with 1 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 12311A | Engine front mounting bracket (for transverse engine) | 12311-62010 |
| 12313 | Engine mount control bracket (for transversely mounted engines) | 12313-62010 |
| 12315A | Engine right side mounting bracket (for transversely mounted engine) | 12315-62020 |
| 12316 | Engine No. 2 right side suspension bracket | 12316-62010 |
| 12317 | Engine right mounting bracket | 12317-62020 |
| 12318 | Engine left mounting bracket | 12318-62030 |
| 12321A | Rear engine mounting bracket (for transverse engine) | 12321-62030 · 12321-62090 |
| 12325A | Engine left side mounting bracket (for transversely mounted engine) | 12325-62020 |
| 12327A | Engine No. 2 right side mounting bracket | 12327-62020 |
| 12361A | Engine front mounting vibration isolation pad (for transversely mounted engine) | 12361-62020 |
| 12362 | Engine right side mounting vibration isolation pad (for transversely mounted engine) | 12362-62020 |
| 12363 | Engine center mount vibration isolation pad | 12363-74010 |
| 12371A | Engine rear mount vibration isolation pad | 12371-62020 |
| 12372A | Engine left-side mounting vibration isolation pad (for transversely mounted engines) | 12372-62020 |
| 12391A | Engine center mount vibration isolation pad | 12391-62010 |
