Toyota CAMRY Timing Gear Cover & Rear End Plate — Figure 1106

Toyota CAMRY EPC diagram 1106, Timing Gear Cover & Rear End Plate, with 1 images and 17 PNC and OE references.

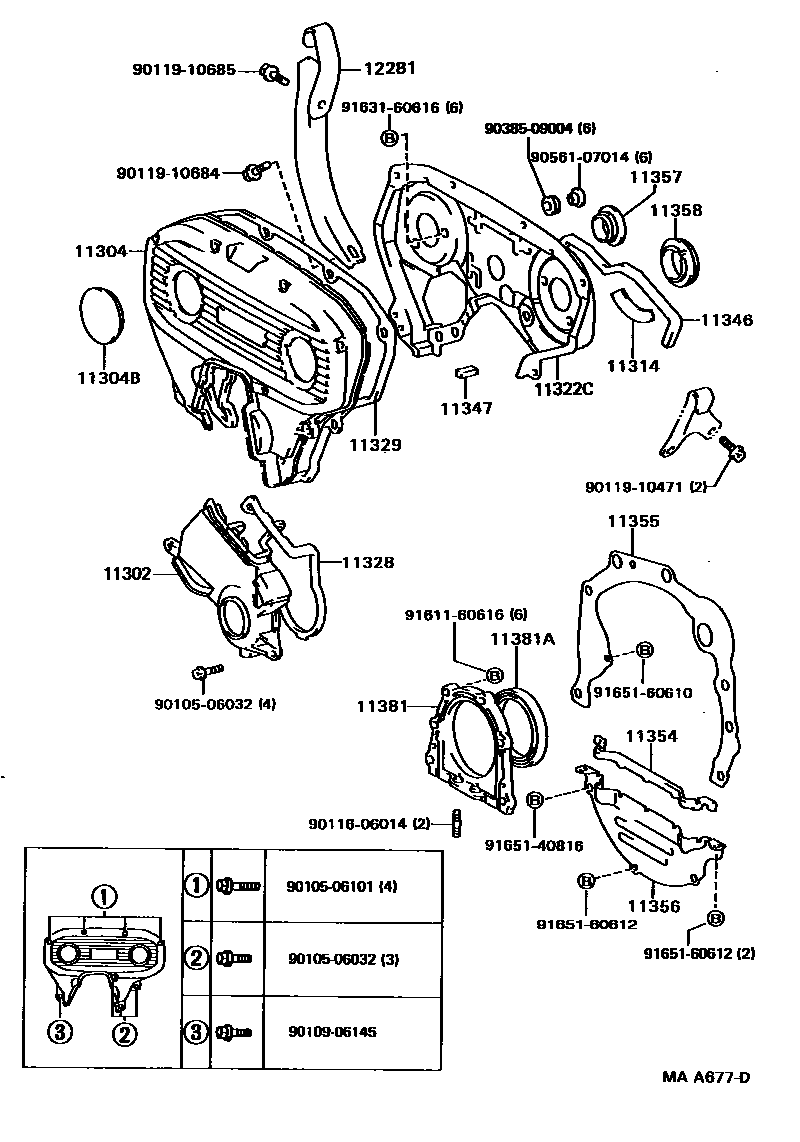

Toyota CAMRY Timing Gear Cover & Rear End Plate EPC diagram — MAA677D
Timing Gear Cover & Rear End Plate — MAA677D (198808 – 999999)

PNC and OE references

PNCPart nameOE numbers
11302TIMING CHAIN OR BELT COVER SUB-ASSY11302-62020
11304No. 2 timing chain or timing belt cover11303-62020
11304BHalf-round plug (for No. 2 timing chain cover)90950-01554
11314No. 2 timing chain cover gasket11319-62010 · 11319-62020
11322CNo. 3 timing belt cover11304-62020 · 11304-62021
11328GASKET, TIMING GEAR OR CHAIN COVER11328-62020
11329Timing gear rear cover gasket11329-62010
11346No. 4 timing belt cover gasket11346-62010 · 11346-62011
11347No. 5 timing belt cover gasket11347-62010
11354Flywheel housing dust seal11354-62010
11355rear end plate11355-62010
11356No. 2 rear end plate11356-62010
11357No. 6 timing belt cover gasket11357-62010
11358No. 7 timing belt cover gasket11358-62010
11381RETAINER, ENGINE REAR OIL SEAL11381-62010
11381ASEAL, ENGINE REAR OIL90311-92001 · 90311-92005
12281Engine No. 1 hanger12281-62020
