Toyota CAMRY Cylinder Block — Figure 1105

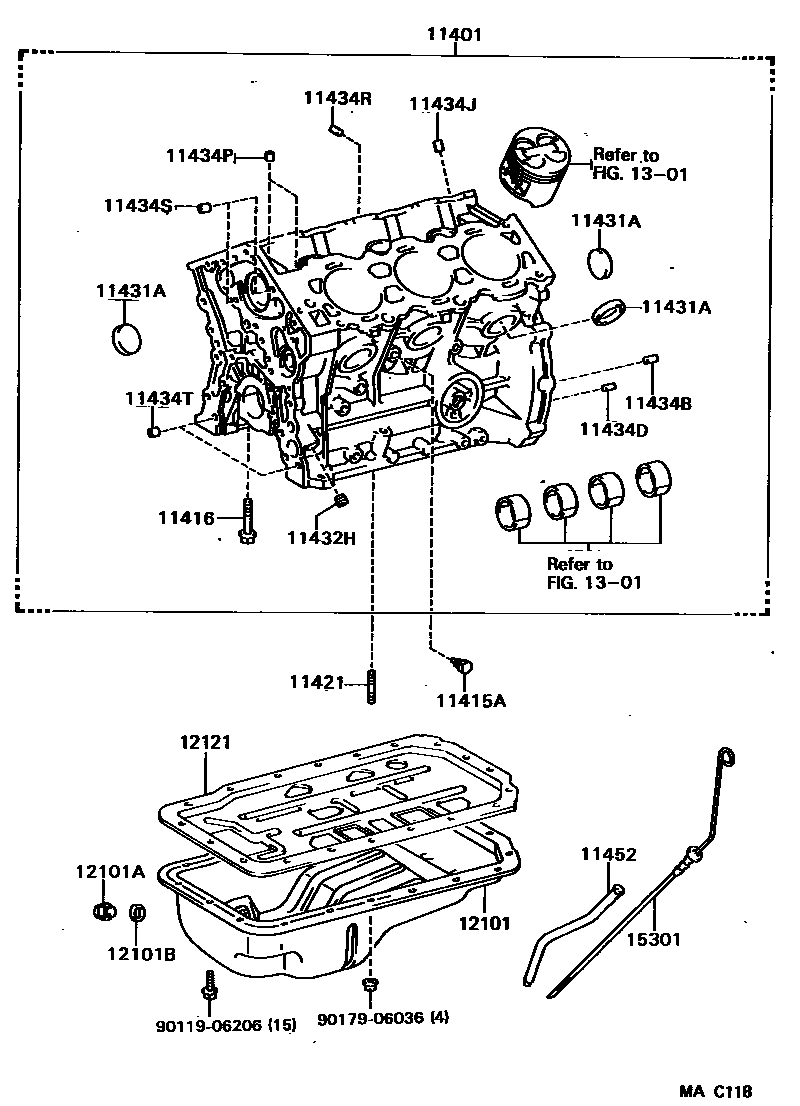

Toyota CAMRY EPC diagram 1105, Cylinder Block, with 1 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11401 | Cylinder block sub-assembly | 11401-69325 · 11401-69385 |
| 11415A | Water drain switch screw plug (for cylinder block) | 96431-23814 |
| 11416 | Bolts (for crankshaft bearing cap assembly) | 90910-02072 |
| 11421 | Stud bolts (for oil pan) | 90116-06014 · 90116-06119 |
| 11431A | No. 1 sealing plug (for cylinder block) | 96411-43500 |
| 11432H | No. 5 headed tapered thread plug | 90344-53015 |
| 11434B | Direct sales (for clutch housing assembly) | 90250-10113 |
| 11434D | Direct sales (for engine rear oil seal) | 90250-06003 |
| 11434J | Ring pin (for cylinder head assembly) | 90253-16001 |
| 11434P | Direct sales (for oil pump components) | 90253-11021 |
| 11434R | Direct selling (for drive shaft bearing bracket) | 90250-06003 |
| 11434S | Ring pin (for water pump assembly) | 90253-11021 |
| 11434T | Ring pin (for timing belt idler bracket assembly) | 90253-11021 |
| 11452 | Engine oil level gauge guide | 11452-62010 |
| 12101 | Oil pan sub-assembly | 12101-62010 · 12101-62030 · 12101-62031 |
| 12101A | Screw plug (for draining oil from the oil pan) | 90341-12012 |
| 12101B | Gasket (for oil pan drain plug) | 90430-12020 · 90430-12027 |
| 12121 | No. 1 oil pan baffle | 12122-62010 |
| 15301 | Engine oil level scoring assembly | 15301-62010 · 15301-62020 |
