Toyota CAMRY Heating & Air Conditioning - Compressor — Figure 8719

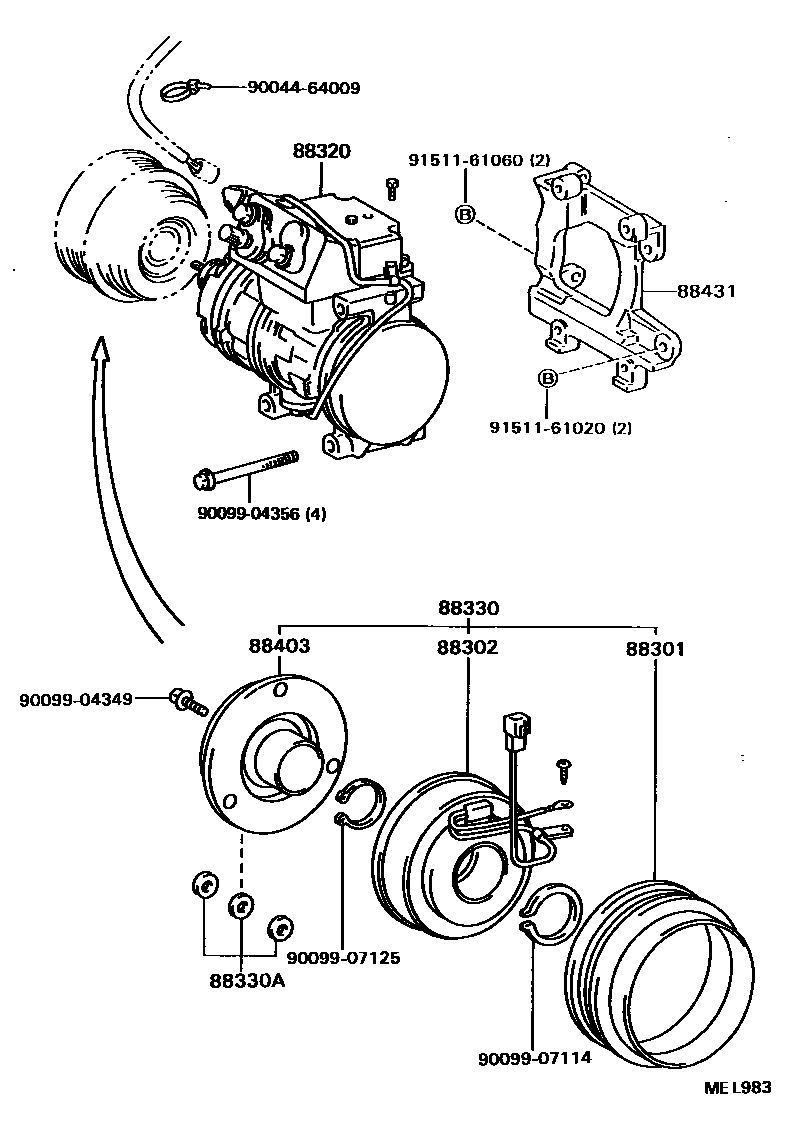

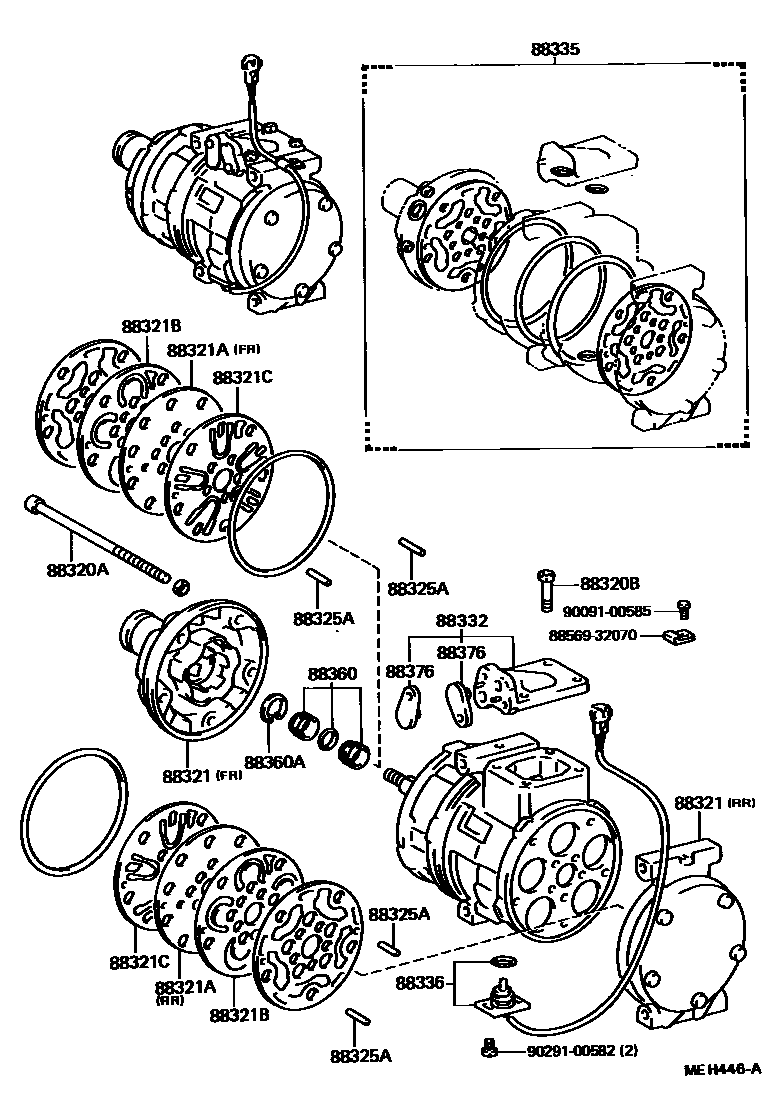

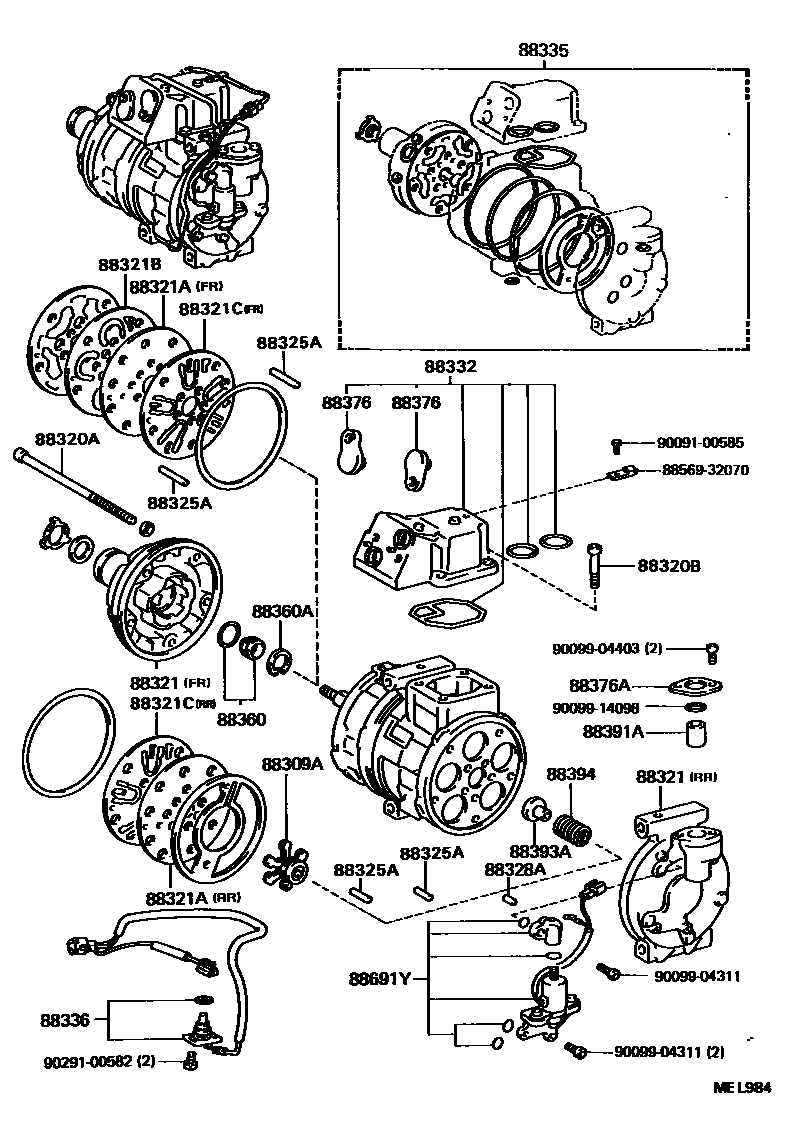

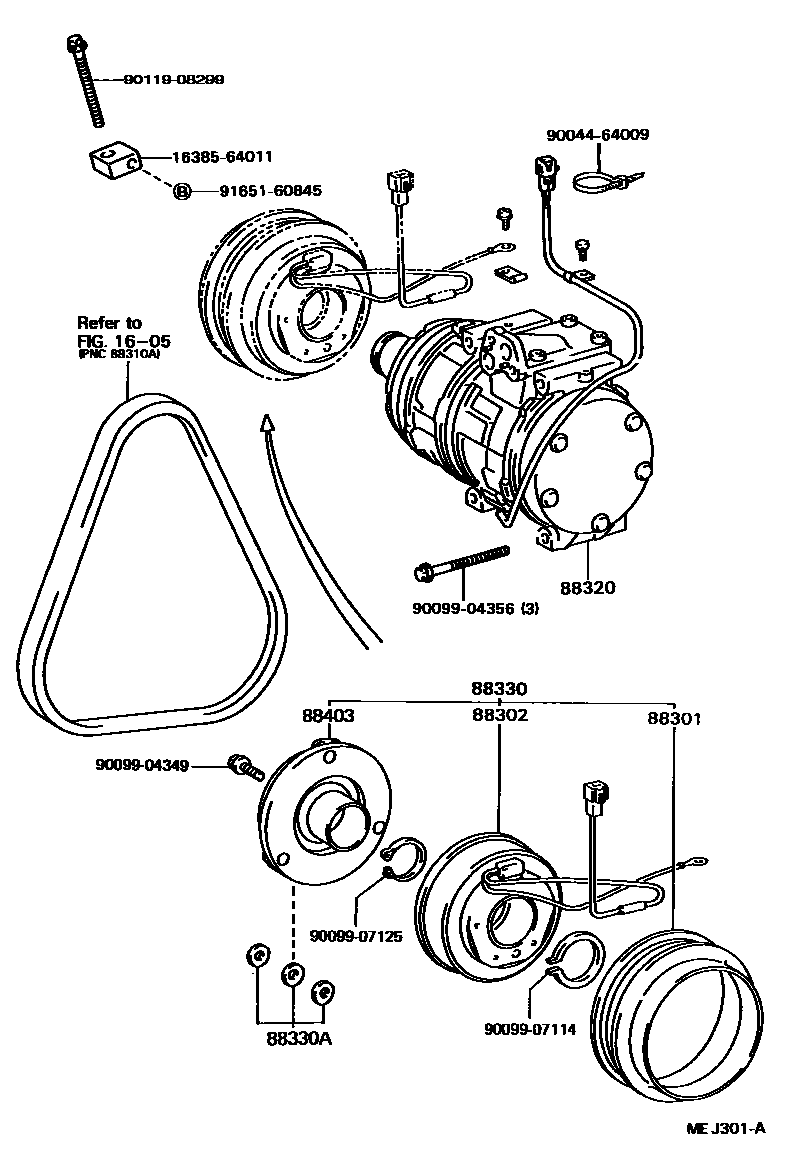

Toyota CAMRY EPC diagram 8719, Heating & Air Conditioning - Compressor, with 4 images and 27 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88301 | Electromagnetic clutch rotor sub-assembly | 88412-20090 · 88412-32030 |
| 88302 | Electromagnetic clutch stator sub-assembly | 88411-32021 · 88411-32031 |
| 88309A | Compressor pump sub-assembly | 88309-32010 |
| 88320 | Cooler Compressor Assembly | 88320-32080 · 88320-32090 |
| 88320A | Through bolt | 90099-04958 |
| 88320B | Service valve bolts | 90099-04924 |
| 88321 | Cooler compressor cylinder head | 88321-14021 · 88322-14020 · 88322-32030 |
| 88321A | Valve sub-assembly | 88341-14020 · 88341-14021 · 88342-14020 · 88342-32010 |
| 88321B | Valve reed sub-assembly | 88344-14020 · 88344-14021 |
| 88321C | suction valve reed | 88343-14020 · 88343-32010 |
| 88322 | Cooler compressor suction service valve | 88371-32060 |
| 88325A | cylinder pin | 90099-08058 |
| 88328A | compressor pin | 88329-32010 |
| 88330 | Magnetic Clutch Assembly | 88410-32030 · 88410-32040 |
| 88330A | Washer (for electromagnetic clutch) | 88355-14020 |
| 88332 | Cooler compressor discharge service valve | 88371-32060 · 88371-32080 |
| 88335 | Overhaul gasket assembly | 88335-32010 · 88335-32020 |
| 88336 | compressor sensor | 88336-17010 · 88336-32040 |
| 88360 | Cooler compressor shaft seal assembly | 88360-14030 · 88360-14040 |
| 88360A | Compressor seal ring | 90096-90022 |
| 88376 | blind cover | 88376-17020 · 88376-22020 |
| 88376A | compressor cover | 88376-32010 |
| 88391A | float valve | 88391-32010 |
| 88393A | Retainer Plate | 88393-32010 |
| 88394 | compressor spring | 88394-32010 |
| 88431 | Compressor No. 1 mounting bracket | 88431-32010 |
| 88691Y | Solenoid valve | 88691-32070 |
