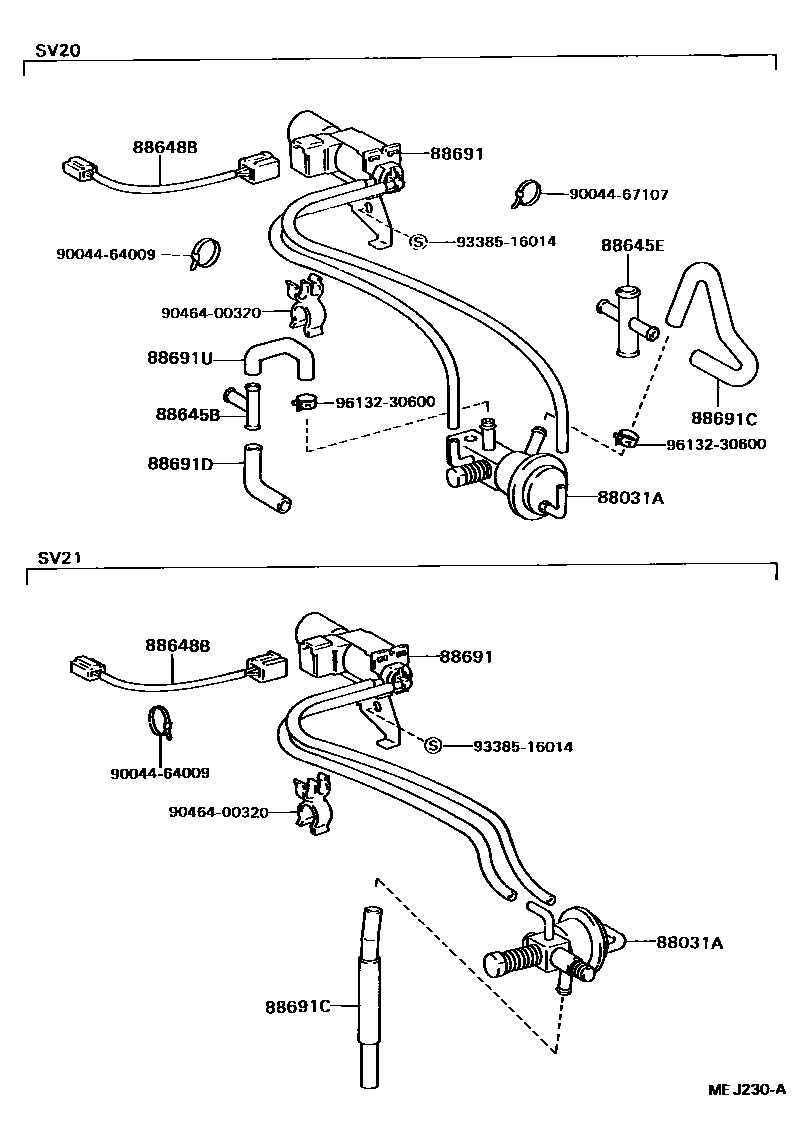

Toyota CAMRY 暖风和空调系统 - 真空管 — Figure 8717
Toyota CAMRY EPC diagram 8717, 暖风和空调系统 - 真空管, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88031A | Idle speed lift actuator diaphragm sub-assembly | 88606-20050 · 88606-32010 |
| 88645B | Connector No. 1 (for idle speed lifting device) | 88892-20250 |
| 88645E | Connector No. 2 (for idle speed lifting device) | 88892-20260 |
| 88648B | No. 1 cooler wiring harness | 88648-32070 |
| 88691 | Solenoid valve (for idle speed lifting device) | 88690-32310 · 88690-32330 |
| 88691C | Vacuum hose No. 1 (for idle lift) | 88689-20160 · 88689-32050 |
| 88691D | Vacuum hose No. 2 (for idle lift) | 88689-20170 |
| 88691U | Tube (for vacuum hose) | 88689-20180 |
