Toyota CAMRY antenna — Figure 8604

Toyota CAMRY EPC diagram 8604, antenna, with 2 images and 6 PNC and OE references.

Toyota CAMRY antenna EPC diagram — MEJ011
antenna — MEJ011 (198611 – 999999)

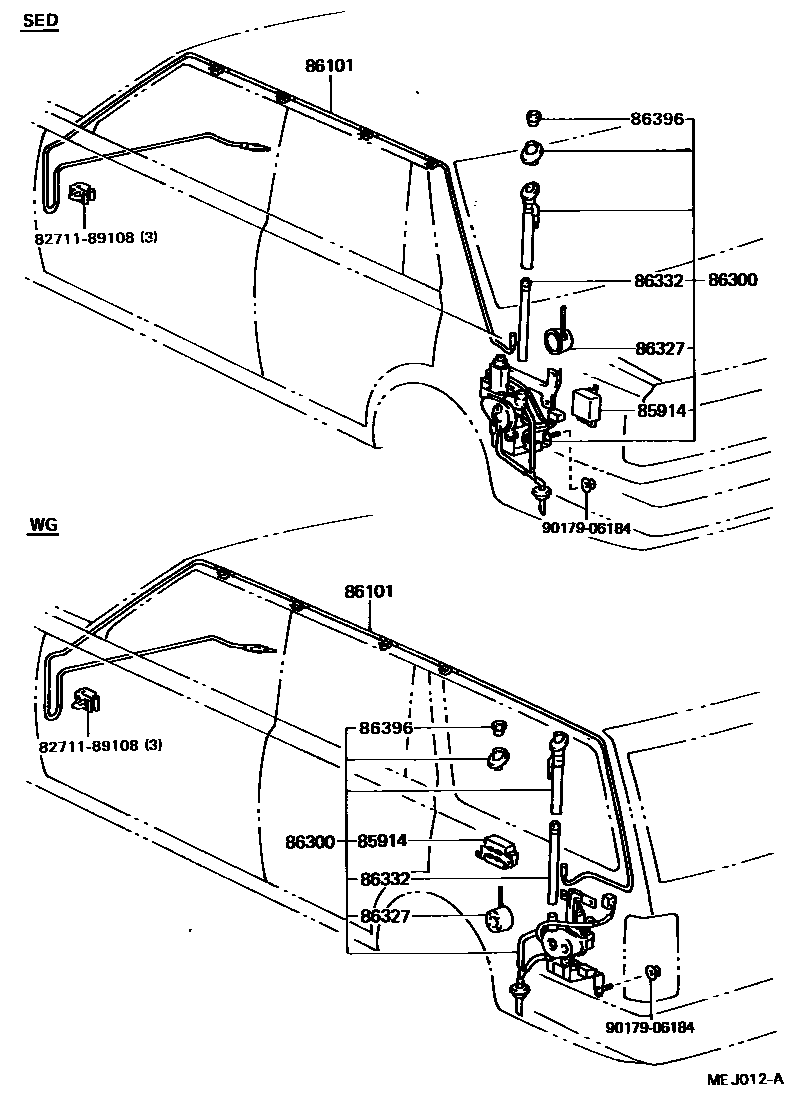

Toyota CAMRY antenna EPC diagram — MEJ012A
antenna — MEJ012A (198611 – 999999)

PNC and OE references

PNCPart nameOE numbers
85914Electric antenna control relay85914-14020
86101Antenna wire sub-assembly86101-32020 · 86101-32030
86300Antenna assembly with fixing parts86300-32100 · 86300-32101 · 86300-32130 · 86300-32131 · 86300-32140 · 86300-32141
86327Cable with antenna drum86327-22210 · 86327-22211
86332antenna mast86336-14350 · 86336-32130
86396Antenna nut86396-14041
