Toyota CAMRY 扬声器 — Figure 8602

Toyota CAMRY EPC diagram 8602, 扬声器, with 2 images and 3 PNC and OE references.

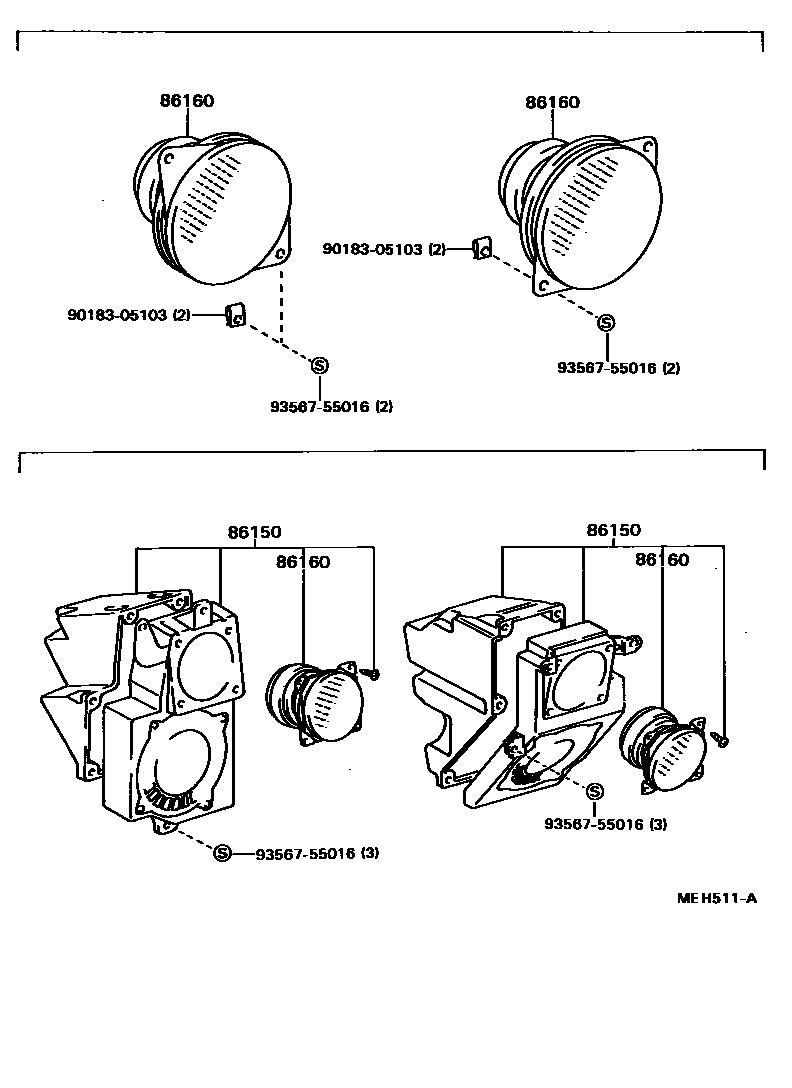

Toyota CAMRY 扬声器 EPC diagram — MEH511A
扬声器 — MEH511A (198611 – 999999)

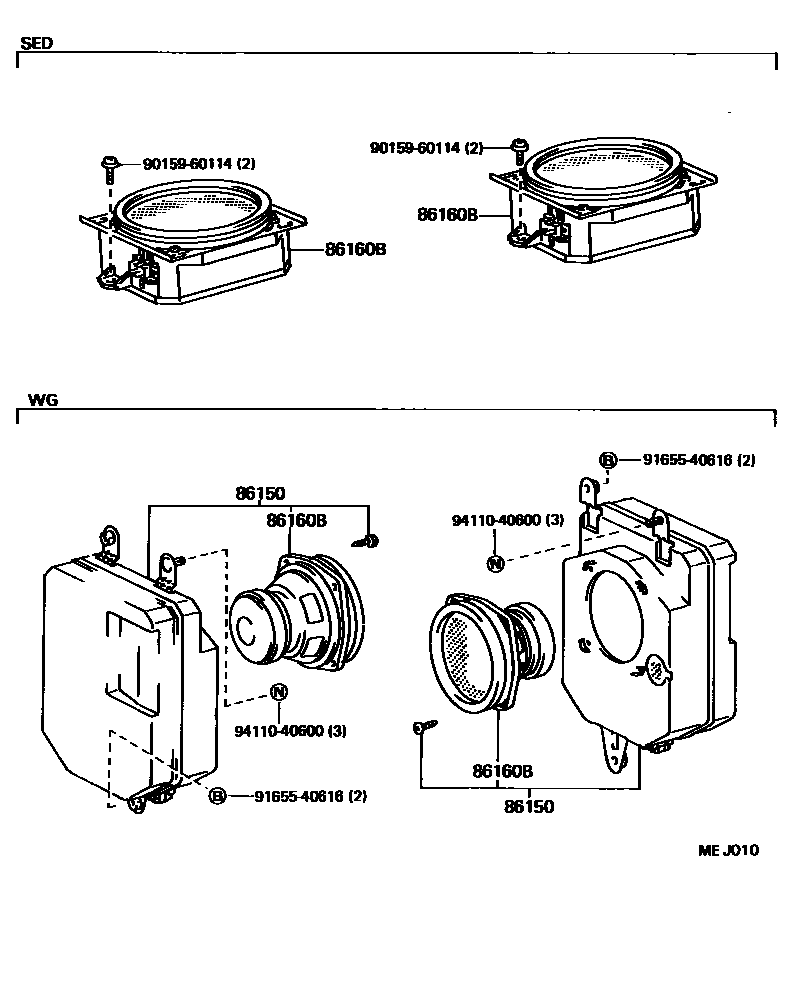

Toyota CAMRY 扬声器 EPC diagram — MEJ010
扬声器 — MEJ010 (198611 – 999999)

PNC and OE references

PNCPart nameOE numbers
86150No. 1 loudspeaker assembly with box86150-32080 · 86150-32090 · 86150-32120 · 86150-32130
86160No. 1 front speaker assembly86160-32120 · 86160-32130
86160BRear speaker assembly86160-32100 · 86160-32150
