Toyota CAMRY 巡航控制(自动行驶) — Figure 8408

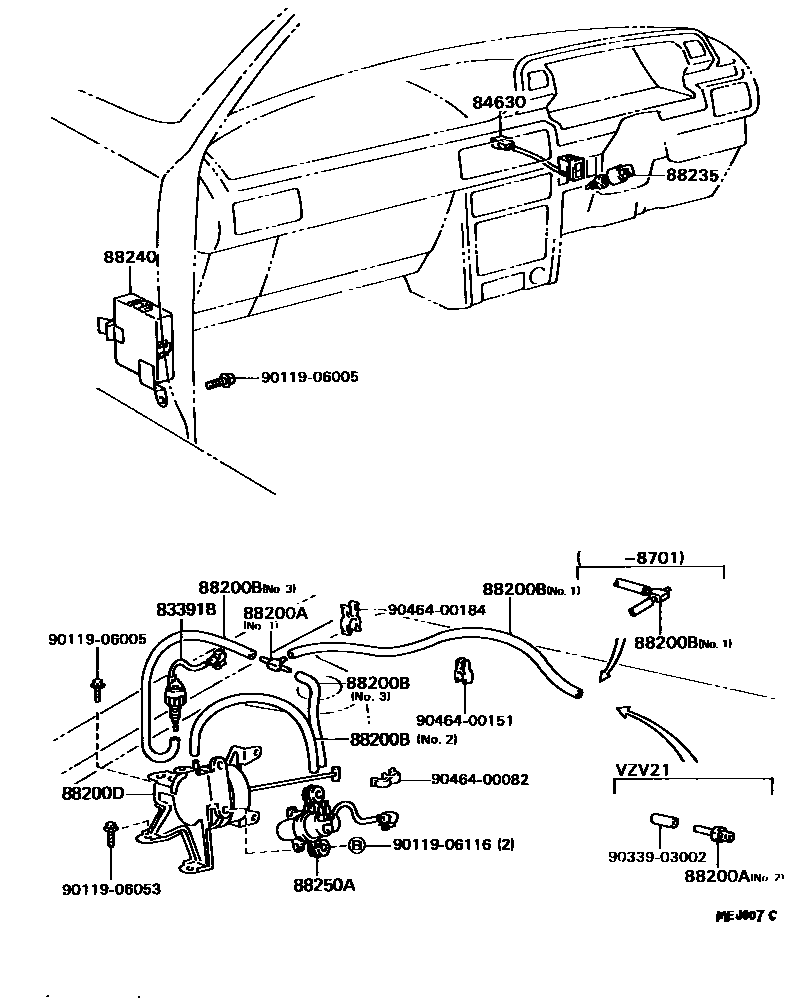

Toyota CAMRY EPC diagram 8408, 巡航控制(自动行驶), with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 83391B | Automatic driving vacuum switch | 83391-14090 · 83391-32040 |
| 84630 | Cruise control main switch assembly | 84630-32080 |
| 88200A | cruise control vacuum fitting or tube | 90404-51010 · 90413-04005 |
| 88200B | cruise control vacuum hose | 88283-32040 · 95411-10060 · 95411-10095 · 95411-19930 |
| 88200D | Cruise control actuator assembly | 88200-32070 · 88200-32071 · 88200-32072 |
| 88235 | Cruise control (automatic driving) release switch assembly | 88280-20010 |
| 88240 | Cruise control ECU assembly | 88240-32130 · 88240-32131 |
| 88250A | cruise control pump assembly | 88251-32070 · 88251-32071 |
