Toyota CAMRY 仪表 — Figure 8301

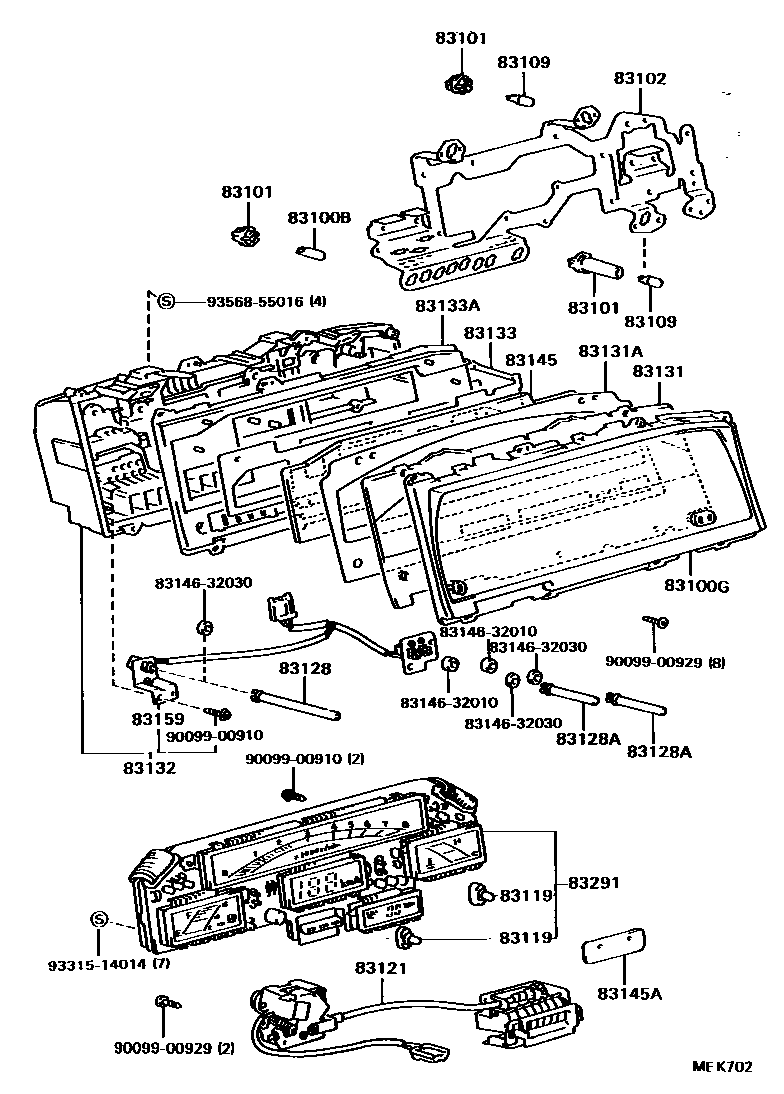

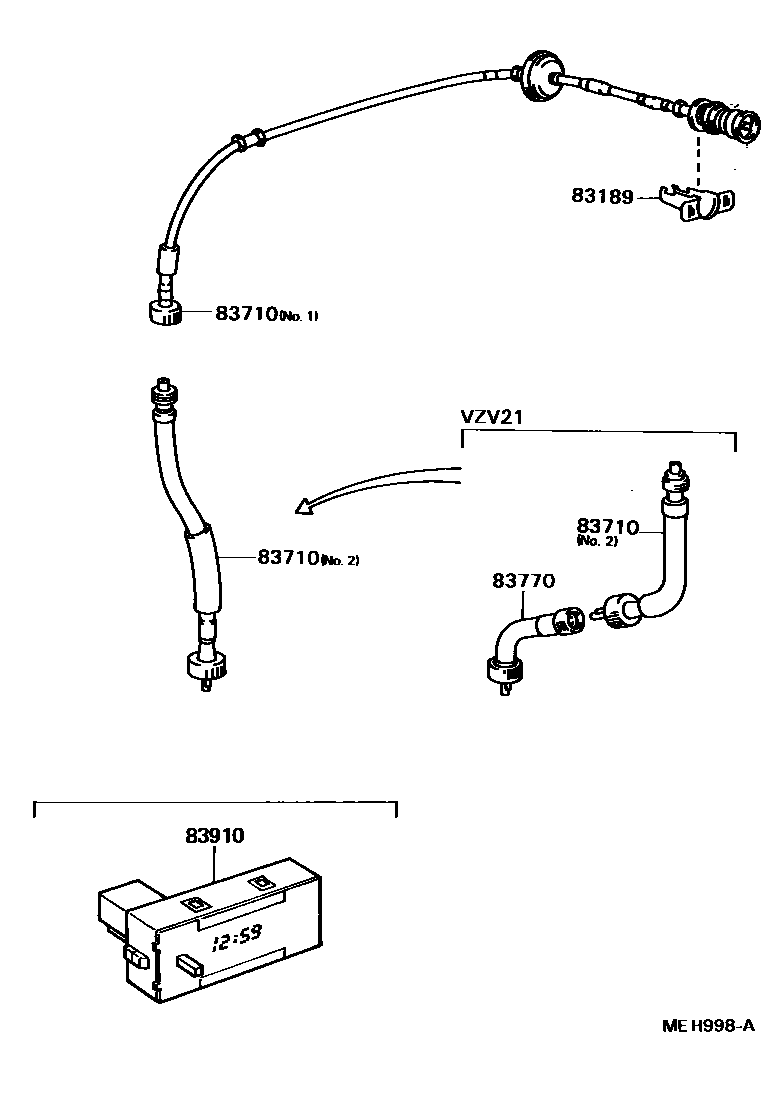

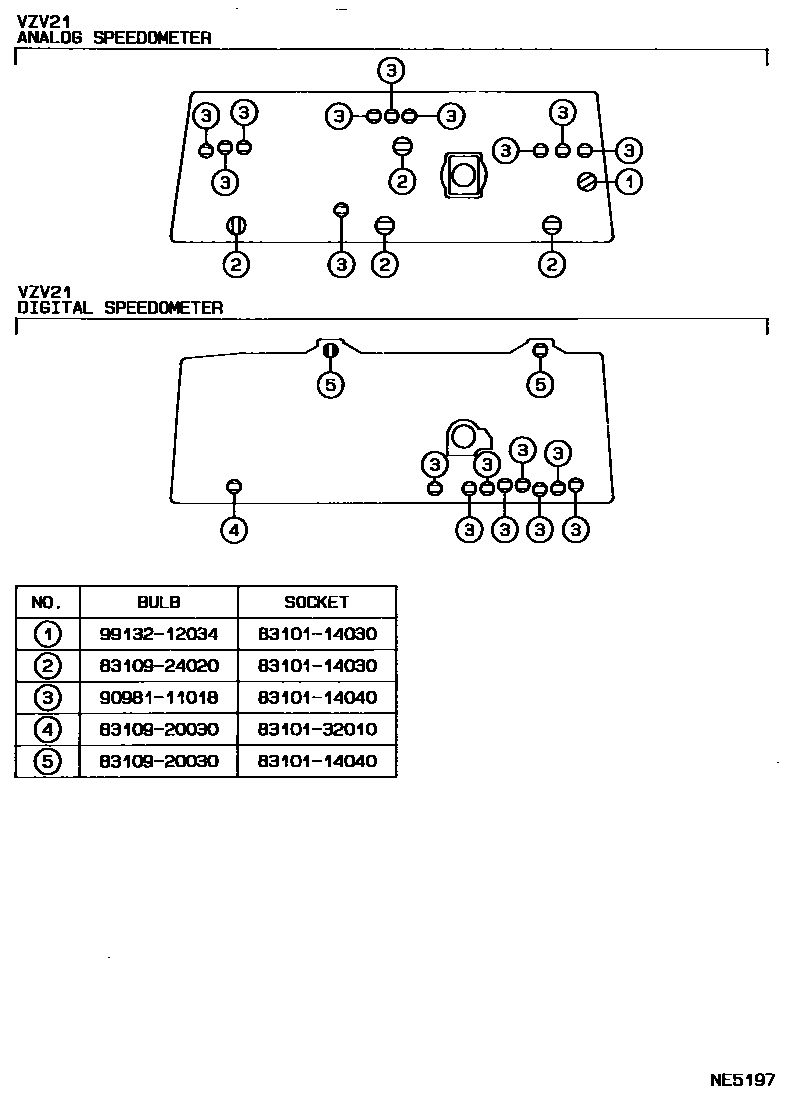

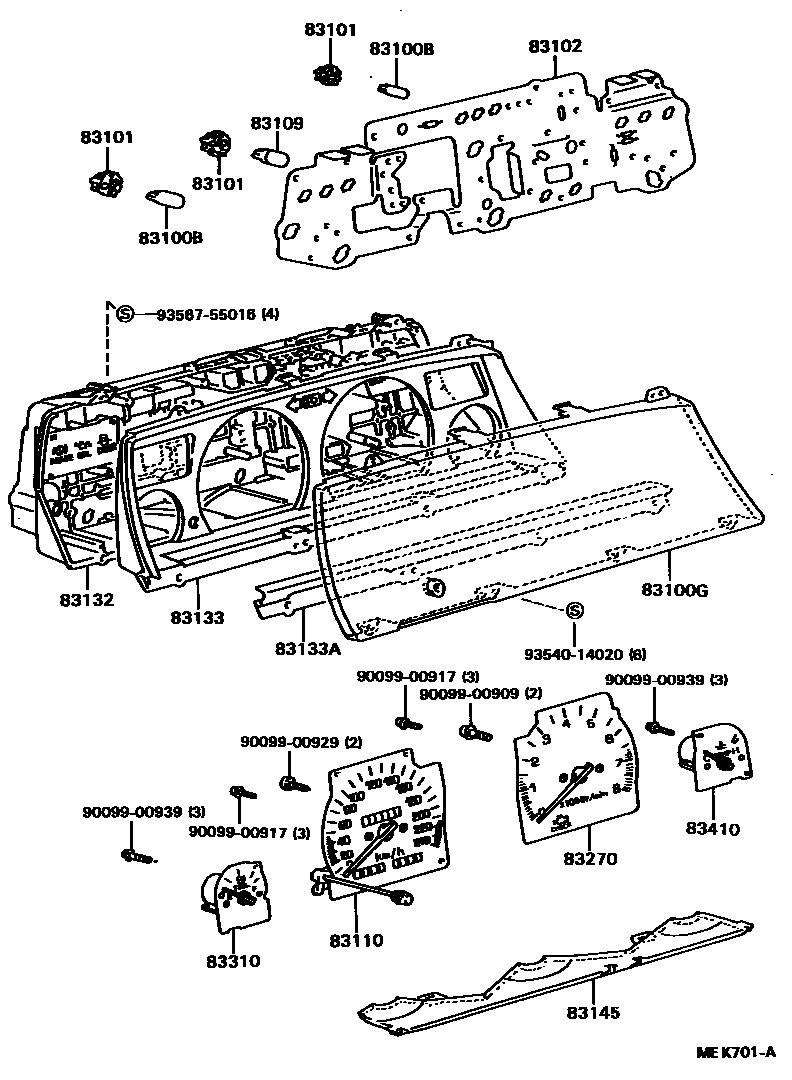

Toyota CAMRY EPC diagram 8301, 仪表, with 4 images and 26 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 83100B | Combination instrument bulb No. 1 | 90981-11018 · 99132-12034 |
| 83100G | Instrument cluster glass | 83133-32350 · 83138-32010 |
| 83101 | Combined instrument lamp holder sub-assembly | 83101-14030 · 83101-14040 · 83101-32010 |
| 83102 | Combination instrument No. 1 circuit board sub-assembly | 83149-32010 · 83247-32820 |
| 83109 | Combined instrument bulb No. 2 | 83109-20030 · 83109-24020 |
| 83110 | Speedometer assembly | 83110-32550 |
| 83119 | Instrument cluster No. 3 light bulb | 83119-24030 |
| 83121 | total counter | 83121-32110 |
| 83128 | trip odometer handle | 83128-32130 |
| 83128A | instrument handle | 83128-32110 |
| 83131 | Instrument panel No. 1 | 83131-32490 |
| 83131A | Instrument panel No. 2 | 83131-32230 |
| 83132 | Instrument cluster housing | 83132-32440 · 83132-32890 |
| 83133 | Combined instrument panel No. 1 | 83133-32330 · 83133-32490 |
| 83133A | Combined instrument panel No. 2 | 83133-32430 · 83133-32590 |
| 83145 | Instrument No. 1 lampshade | 83145-32330 · 83145-32350 |
| 83145A | Instrument No. 2 lampshade | 83145-32390 |
| 83159 | No.1 instrument switch | 83159-32110 |
| 83189 | instrument bracket | 83189-20020 |
| 83270 | Engine tachometer assembly | 83242-32750 |
| 83291 | Instrument cluster ECU | 83291-32140 |
| 83310 | Fuel gauge assembly | 83243-32410 |
| 83410 | Water temperature meter assembly | 83244-32430 |
| 83710 | No. 1 speedometer transmission cable assembly | 83710-32040 · 83710-32110 · 83710-32130 · 83710-32240 |
| 83770 | Speedometer transmission flexible shaft joint assembly | 83770-22100 |
| 83910 | clock assembly | 83910-32060 |
