Toyota CAMRY 线束和卡夹 — Figure 8202

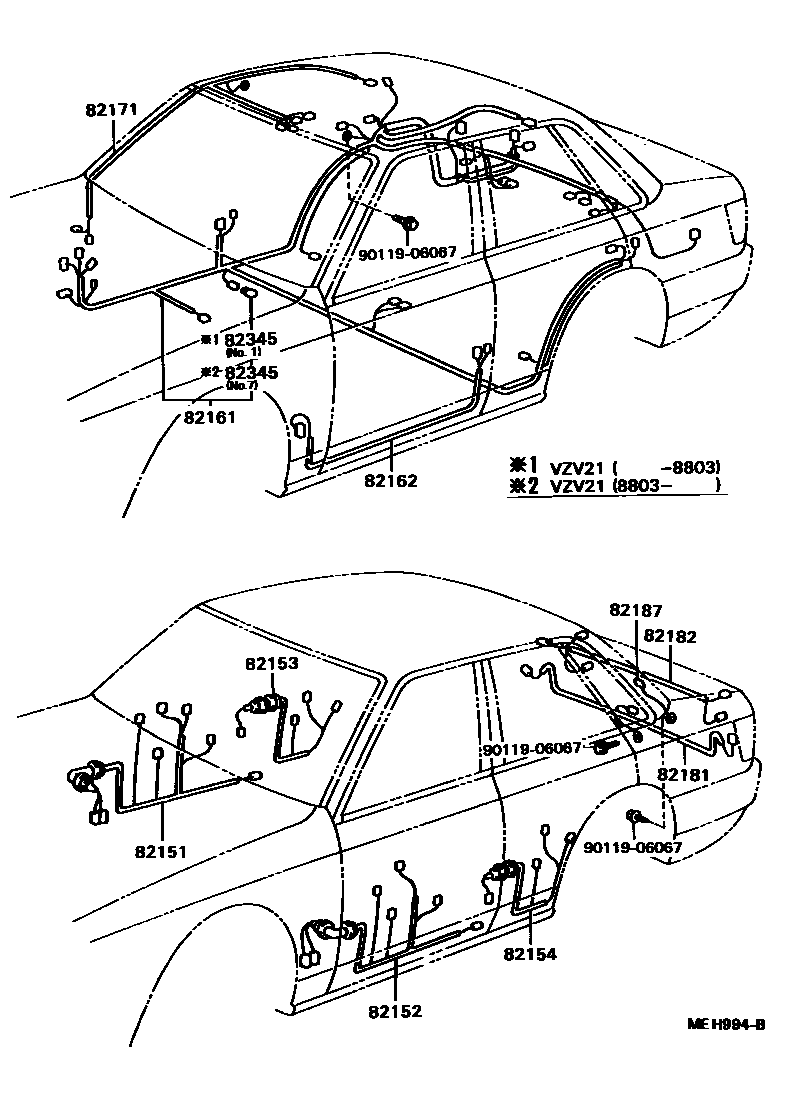

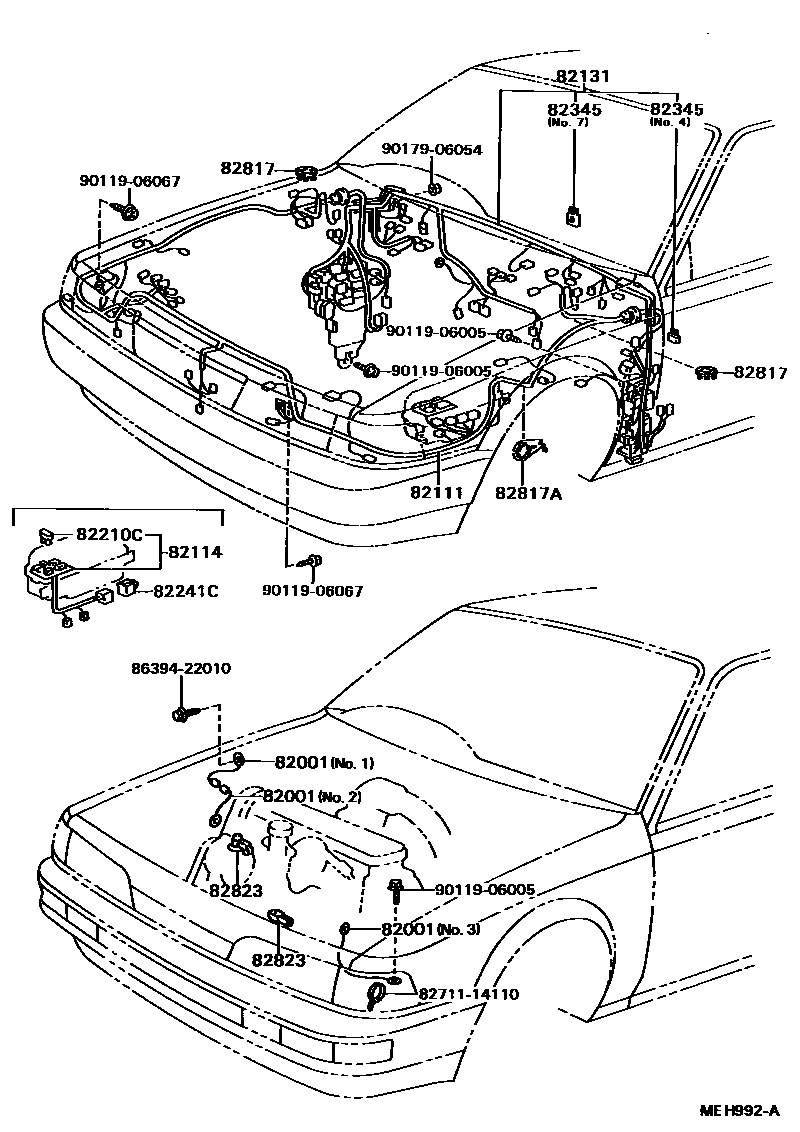

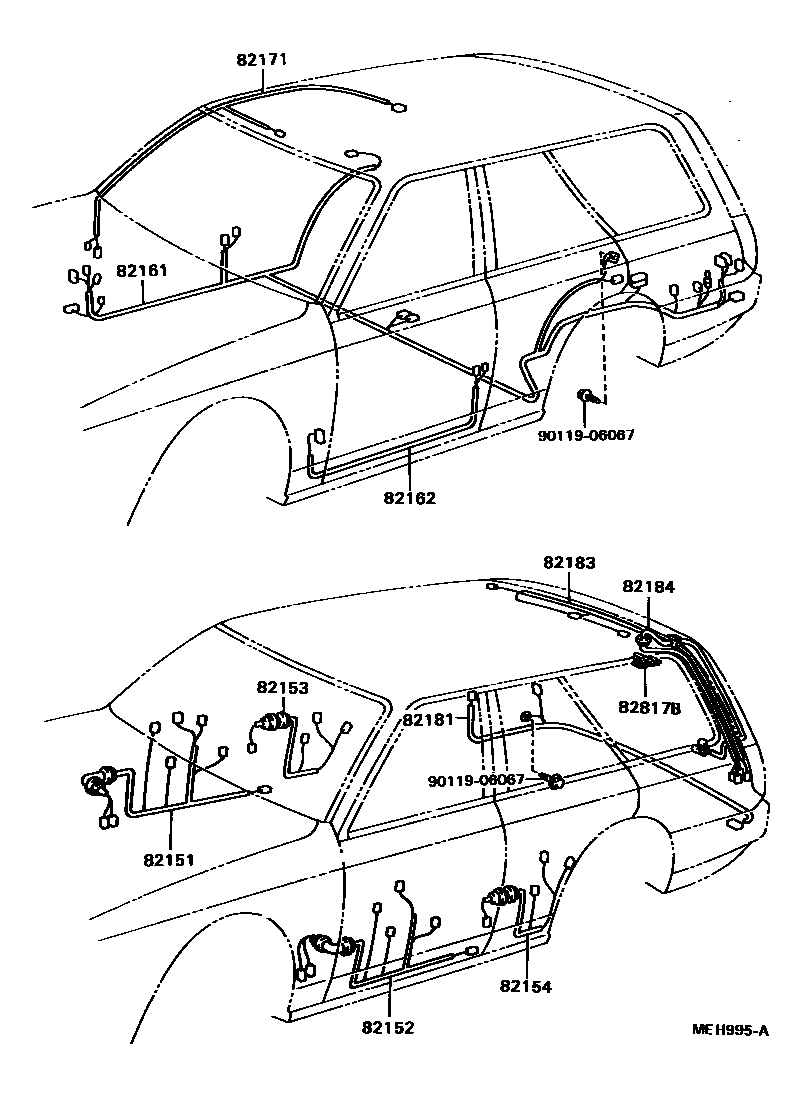

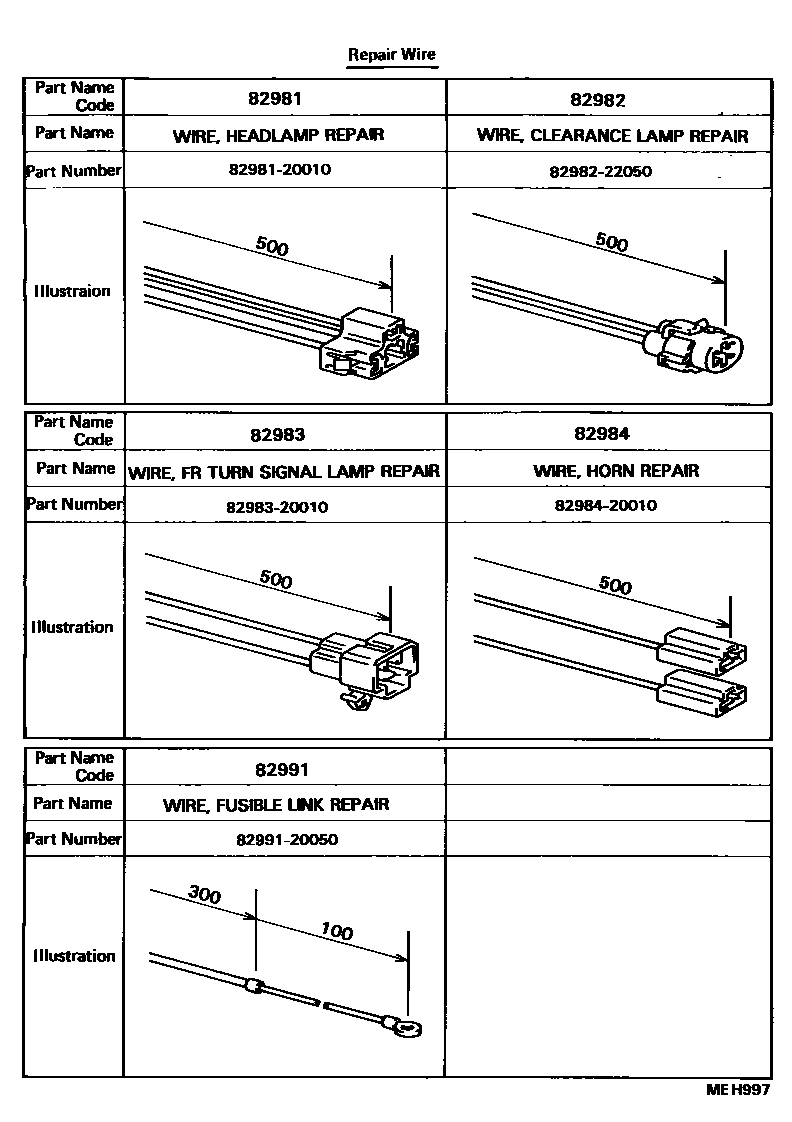

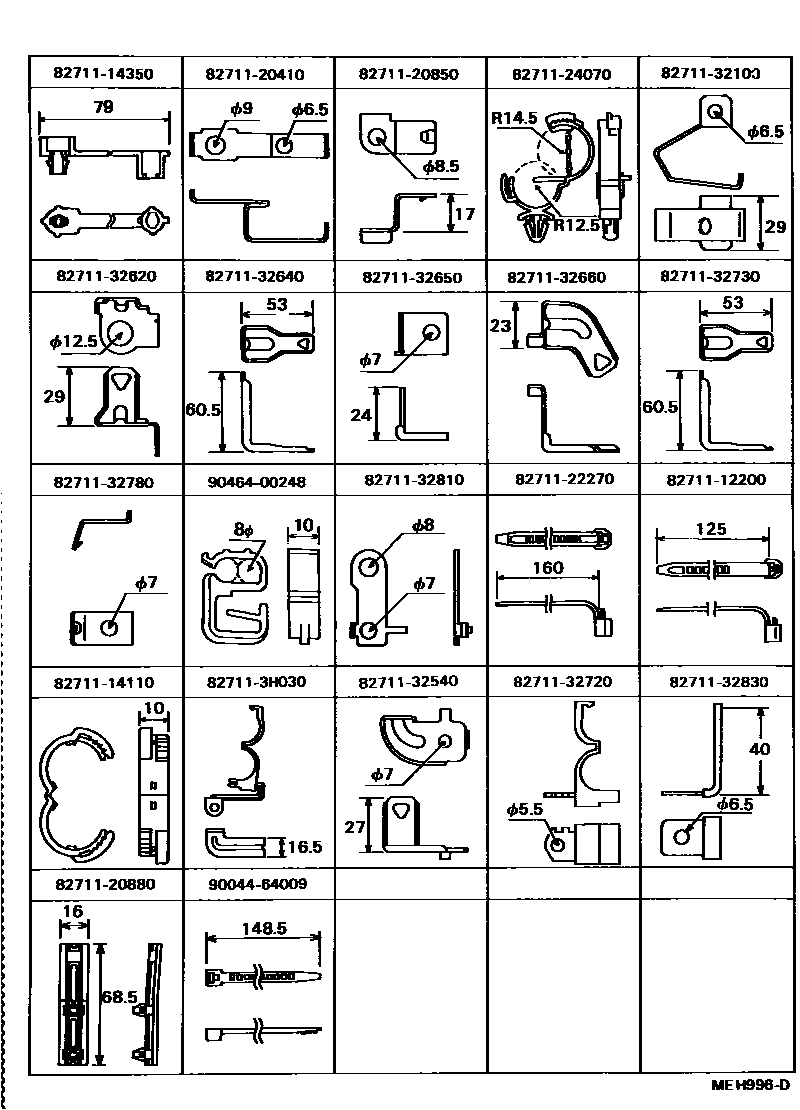

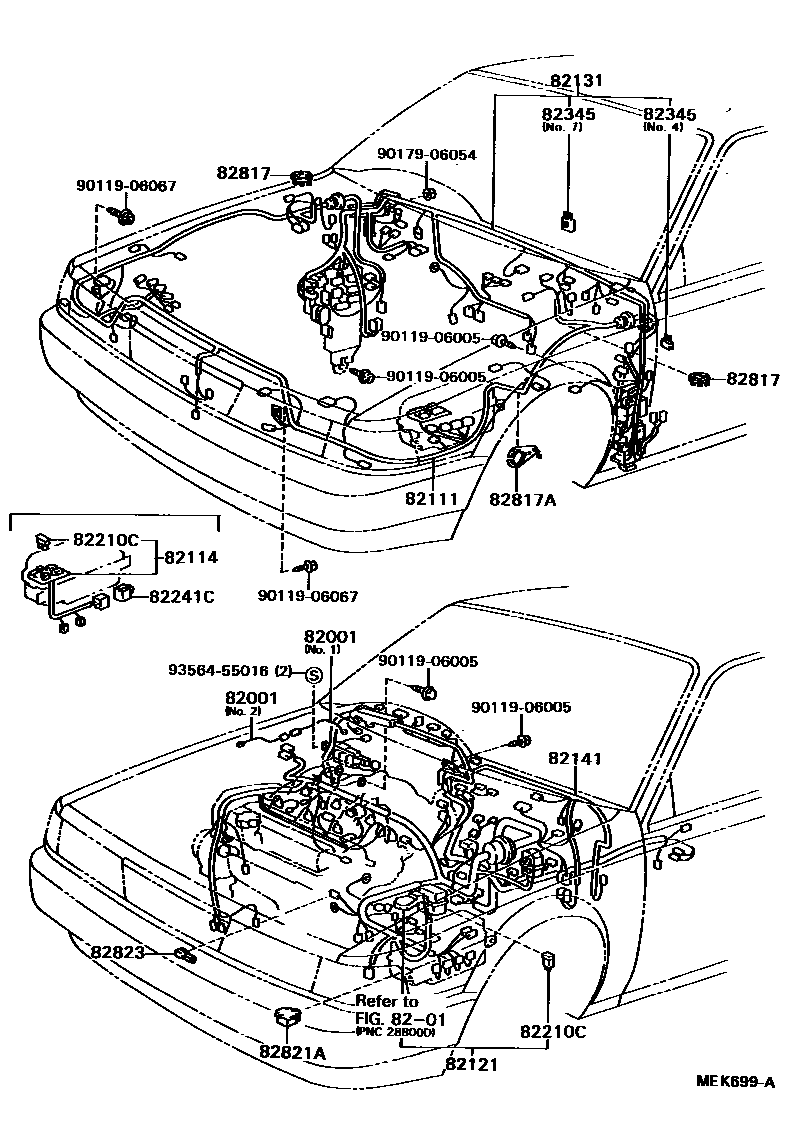

Toyota CAMRY EPC diagram 8202, 线束和卡夹, with 7 images and 32 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 82001 | Connection cable No. 1 | 90980-07136 · 90980-07205 · 90980-07206 · 90980-07270 · 90980-07280 · 90980-07287 |
| 82111 | Engine room main wiring harness | 82111-32130 · 82111-32131 · 82111-32230 · 82111-32231 |
| 82114 | Engine room wiring harness No. 4 | 82114-32030 |
| 82121 | Engine wiring harness | 82121-3H030 |
| 82131 | Front panel wiring harness | 82131-3H320 |
| 82141 | Dashboard wiring harness | 82141-32220 · 82141-32230 |
| 82151 | Right front door wiring harness | 82151-32330 |
| 82152 | Left front door wiring harness | 82152-32320 |
| 82153 | Rear door wiring harness No. 1 | 82153-32070 |
| 82154 | Rear door wiring harness No. 2 | 82153-32070 |
| 82161 | floor wiring harness | 82161-32350 · 82161-32360 · 82161-32410 · 82161-32420 · 82161-32560 |
| 82162 | Floor wiring harness No. 2 | 82162-32060 |
| 82171 | Roof No. 1 wiring harness | 82171-32040 · 82171-32050 · 82171-32210 · 82171-32230 |
| 82181 | Luggage No. 1 wiring harness | 82181-32030 · 82181-32200 |
| 82182 | Luggage No. 2 wiring harness | 82182-32050 |
| 82183 | Luggage No. 3 wiring harness | 82183-32030 |
| 82184 | Rear door No. 1 wiring harness | 82184-32030 |
| 82187 | Rear window wiring harness No. 2 | 82187-32020 |
| 82210C | fuse | 90982-08188 · 90982-08189 · 90982-08203 · 90982-08253 |
| 82241C | Relay harness | 82241-32020 |
| 82345 | diode | 82345-12050 · 82345-20060 · 82345-32020 |
| 82671 | junction box | 82671-14010 · 82671-32030 |
| 82817 | No. 1 wire harness protection device | 82817-32420 |
| 82817A | No. 2 wire harness protection device | 82817-32310 |
| 82817B | No. 3 wire harness protection device | 82817-32050 |
| 82821A | Connector cover | 82821-32080 |
| 82823 | No. 1 terminal cover | 82823-20030 · 82823-22050 |
| 82981 | Headlight repair line | 82981-20010 |
| 82982 | Width light repair line | 82982-22050 |
| 82983 | Front turn signal lamp repair line | 82983-20010 |
| 82984 | Speaker repair line | 82984-20010 |
| 82991 | Fuse repair line | 82991-20050 |
