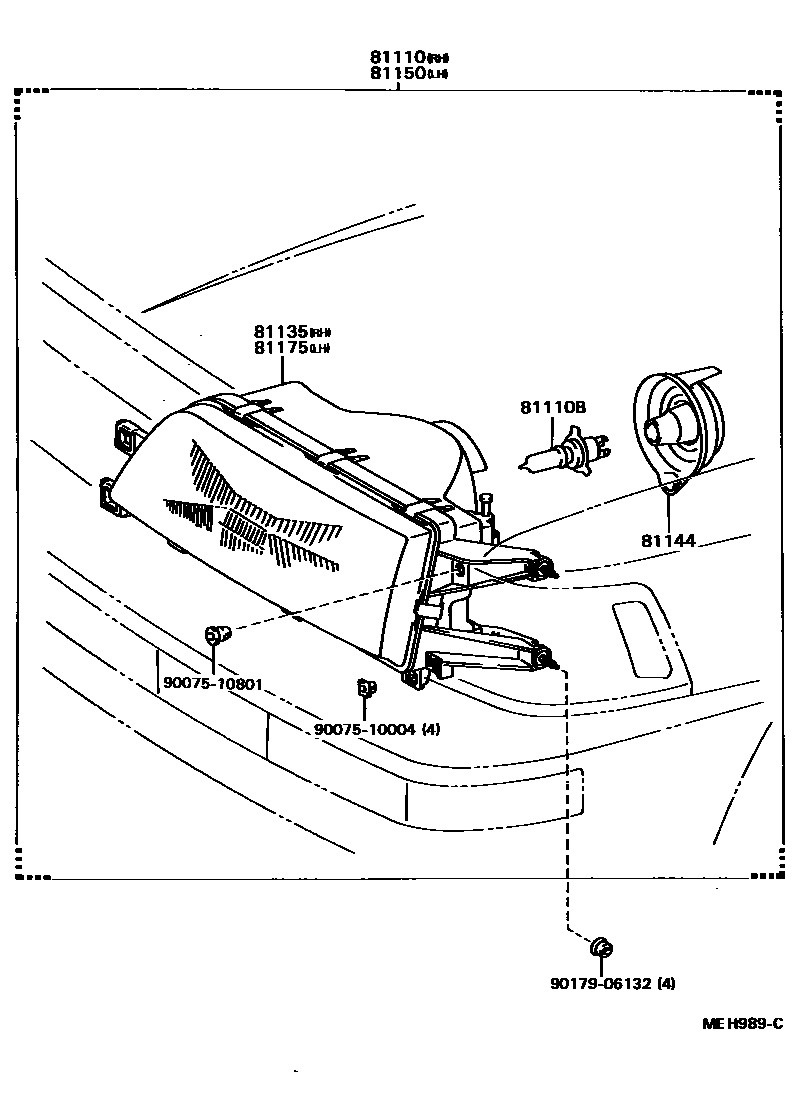

Toyota CAMRY Headlamp — Figure 8101
Toyota CAMRY EPC diagram 8101, Headlamp, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81110 | Right headlight assembly | 81110-32150 |
| 81110B | Bulb (for headlight No. 1) | 90981-13015 |
| 81135 | Right headlight assembly assembly | 81130-32150 |
| 81144 | No. 1 headlight cover | 81139-20730 |
| 81150 | Left headlight assembly | 81150-32150 |
| 81175 | Left headlight assembly assembly | 81170-32150 |
