Toyota CAMRY 燃油箱和燃油管 — Figure 7701

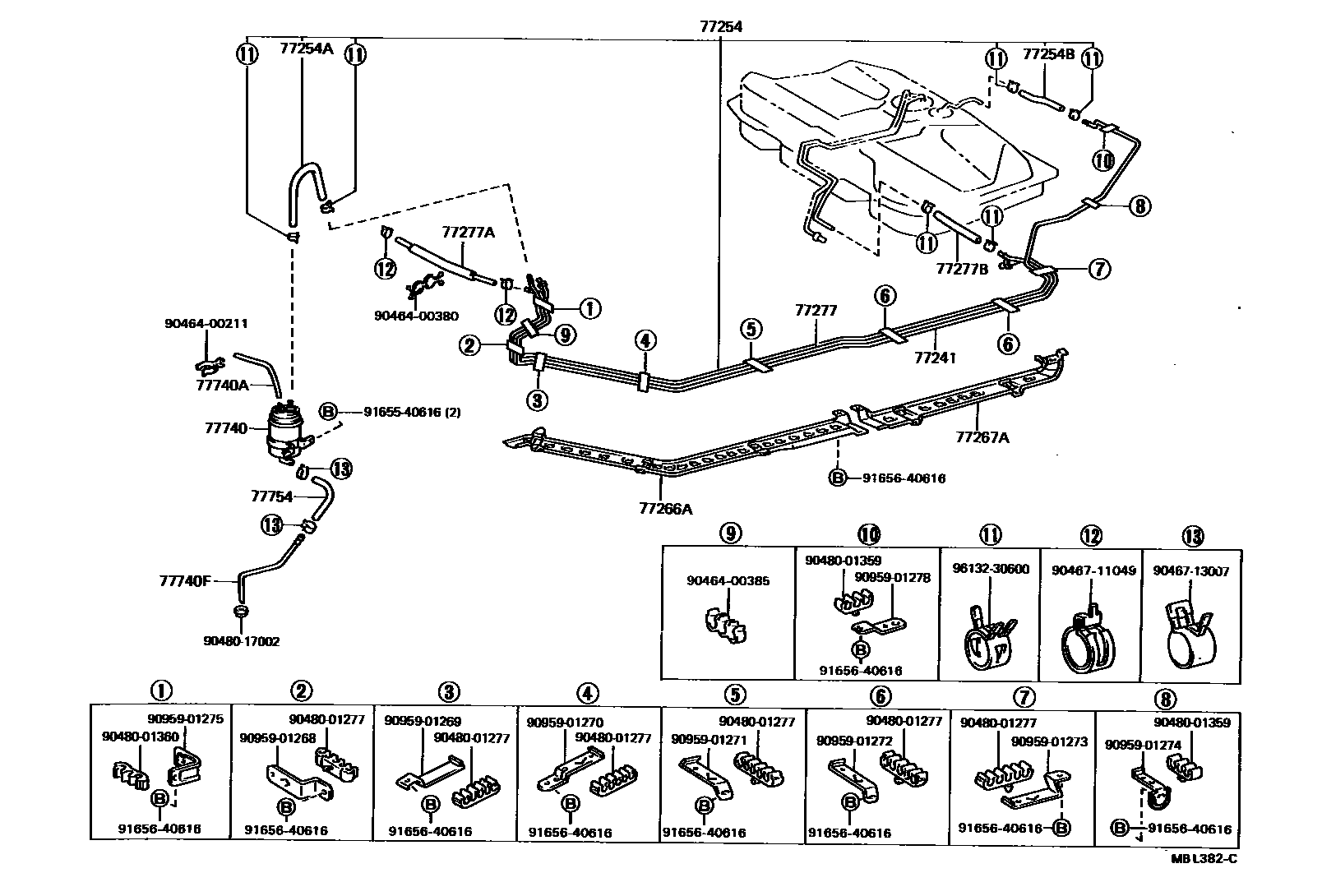

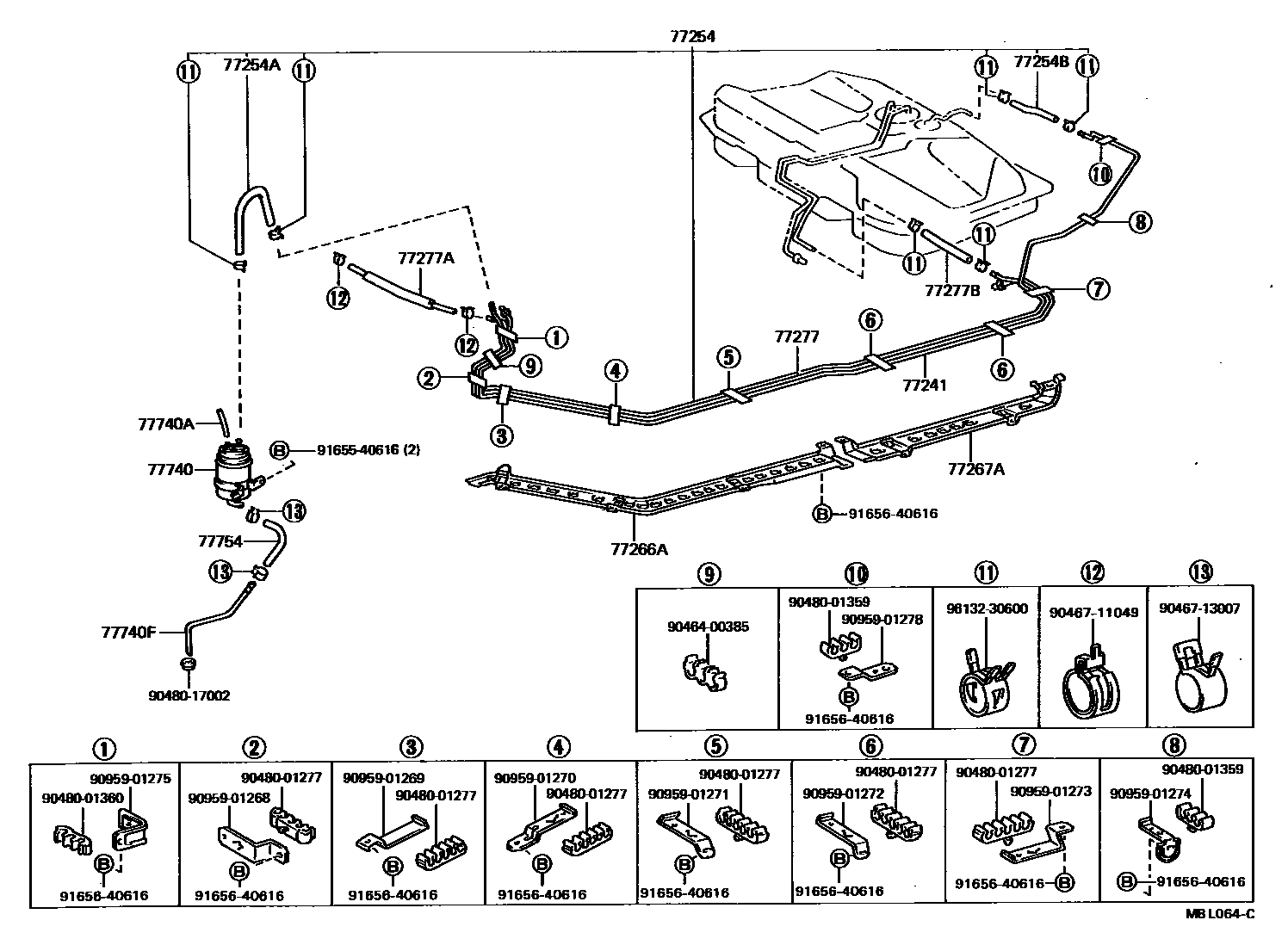

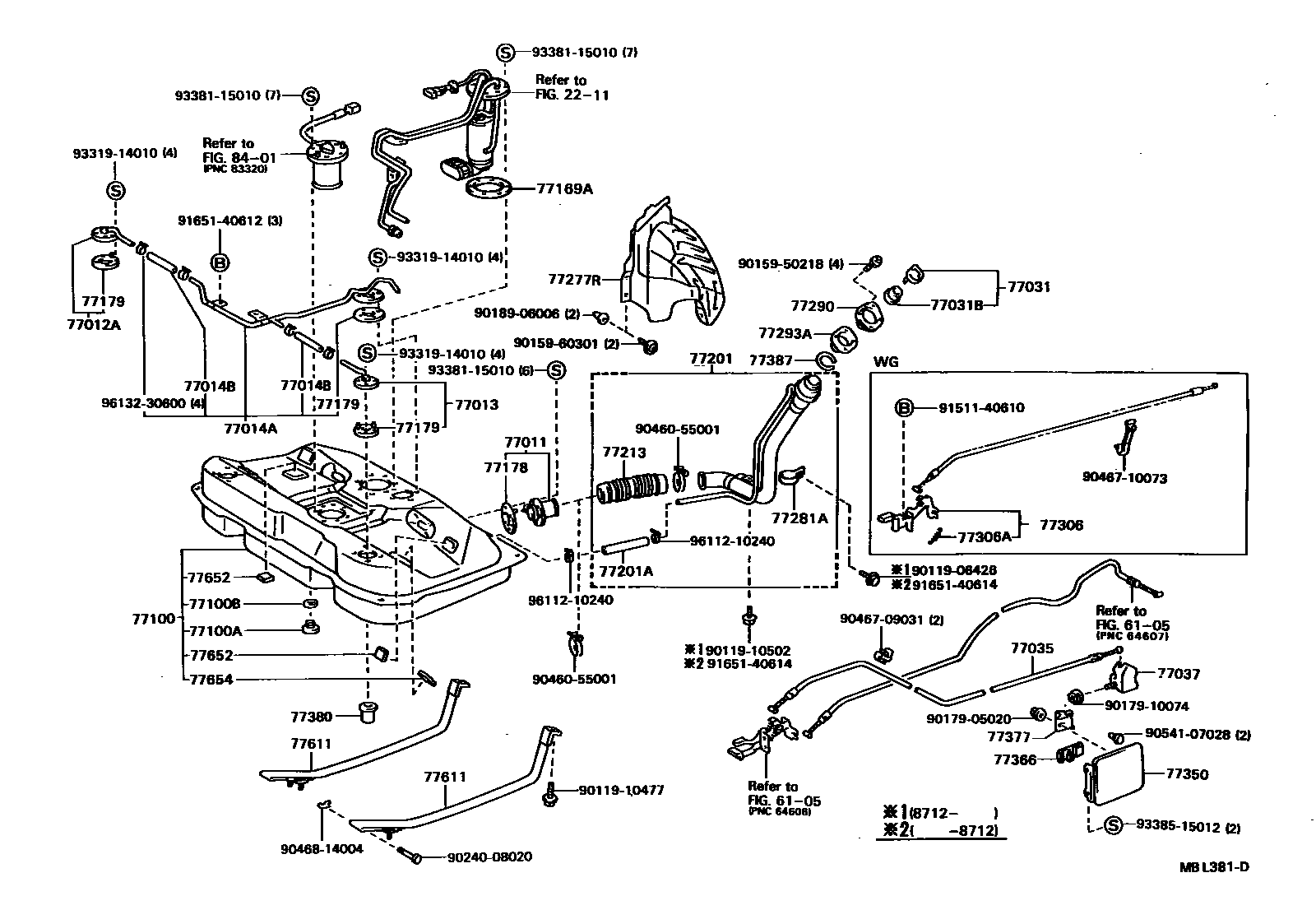

Toyota CAMRY EPC diagram 7701, 燃油箱和燃油管, with 3 images and 45 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 77011 | Filling pipe sub-assembly under fuel tank | 77011-20010 · 77011-20020 |
| 77012A | No. 1 fuel tank breather pipe sub-assembly | 77012-32010 · 77012-32020 |
| 77013 | No. 2 fuel tank breather pipe sub-assembly | 77012-32010 · 77012-32020 |
| 77014A | No. 3 fuel tank breather pipe sub-assembly | 77014-32010 · 77014-32020 |
| 77014B | Fuel hose (for fuel tank breather pipe) | 95332-06010 · 95333-06010 |
| 77031 | Fuel tank cap assembly | 77310-16010 · 77310-16011 |
| 77031B | Gasket (for fuel tank cap) | 77316-16010 |
| 77035 | Fuel filler cap lock control cable sub-assembly | 77035-32060 |
| 77037 | Fuel filler cap lock sub-assembly | 77037-12040 |
| 77100 | fuel tank assembly | 77001-32904 · 77001-39215 |
| 77100A | Screw plug (for fuel tank) | 90341-20004 |
| 77100B | Gasket (for fuel tank) | 90430-20007 |
| 77169A | Fuel suction pipe fixed gasket | 77169-14010 |
| 77178 | Fuel tank filler pipe lower gasket | 77178-20010 |
| 77179 | Fuel tank front mounting bracket | 77179-16010 |
| 77201 | Fuel tank inlet pipe sub-assembly | 77210-32052 |
| 77201A | No. 1 fuel hose (for fuel tank inlet pipe) | 90445-22002 |
| 77213 | Fuel tank auxiliary fuel inlet hose | 77213-32020 |
| 77241 | No. 1 main fuel pipe | 77251-32090 |
| 77254 | No. 1 fuel evaporation exhaust pipe | 77019-32060 |
| 77254A | No. 1 fuel hose (for No. 1 drain pipe) | 77259-32020 · 95333-06030 |
| 77254B | No. 2 fuel hose (for No. 1 drain pipe) | 95333-06020 |
| 77266A | No. 1 fuel line protection device | 77266-32020 |
| 77267A | No. 2 fuel pipe protection device | 77267-32020 |
| 77277 | No. 1 fuel return pipe | 77255-32070 |
| 77277A | No. 1 fuel hose (for No. 1 return pipe) | 23271-62010 · 90447-12018 · 90447-12085 |
| 77277B | No. 2 fuel hose (for No. 1 return pipe) | 95333-06017 · 95333-06020 |
| 77277R | Fuel tank filler pipe protection device | 77277-32020 |
| 77281A | Fuel filler pipe clamp | 77281-32010 |
| 77290 | Fuel tank filler pipe cover assembly | 77290-32020 · 77290-32021 |
| 77293A | No. 3 fuel tank filler pipe cover | 77293-20010 |
| 77306 | Fuel filler cap lock opening lever sub-assembly | 77306-14030 |
| 77306A | Fuel filler cap opening lever spring | 90506-09004 |
| 77350 | Fuel filler cap assembly | 77350-32030 |
| 77366 | Fuel filler cap hinge spring | 77360-24010 |
| 77377 | Fuel filler cap lock retainer | 77377-20030 |
| 77380 | Fuel shut-off valve assembly | 77380-14020 |
| 77387 | fuel inlet ring | 77391-16011 |
| 77611 | fuel tank strap | 77601-32050 · 77602-32040 |
| 77652 | No. 1 fuel tank liner | 77651-32050 |
| 77654 | No. 2 fuel tank liner | 77652-32030 |
| 77740 | Carbon canister assembly | 77740-32030 |
| 77740A | No. 1 fuel hose (for canister) | 90999-92003 · 95411-19930 |
| 77740F | No. 1 fuel pipe (for charcoal canister) | 77264-32030 |
| 77754 | No. 1 carbon canister outlet hose | 77754-32030 |
