Toyota CAMRY 侧防护条 — Figure 7503

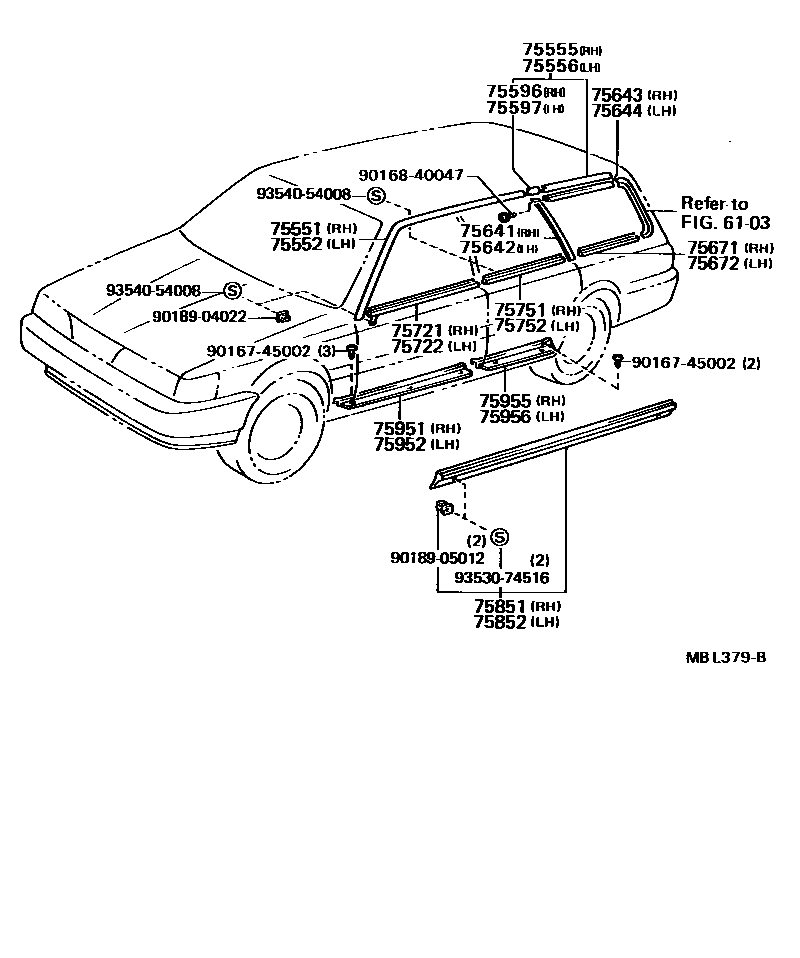

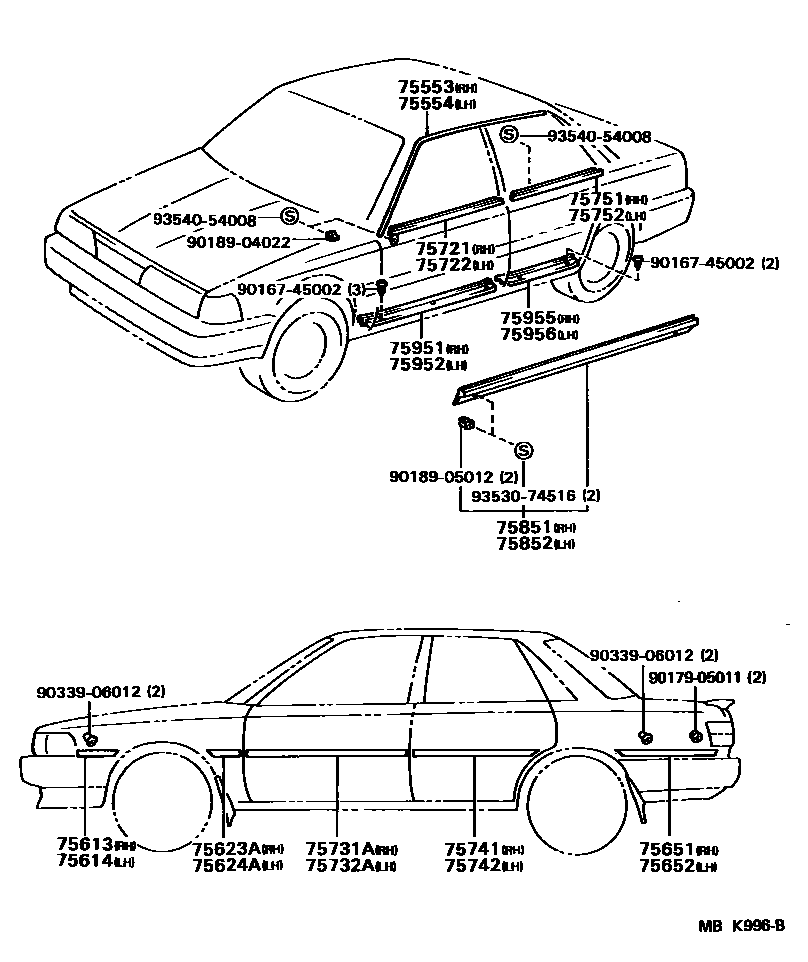

Toyota CAMRY EPC diagram 7503, 侧防护条, with 2 images and 30 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 75551 | Drainage groove side decorative strip on the right side of the roof | 75551-32040 |
| 75552 | Drainage groove side decorative strip on the left side of the roof | 75552-32040 |
| 75553 | Drainage groove side decorative strip on the right side of the roof | 75551-32030 |
| 75554 | Drainage groove side decorative strip on the left side of the roof | 75552-32030 |
| 75555 | Decorative strip on the right side of the roof, rear gutter side | 75553-32030 |
| 75556 | Decorative strip on the left side of the roof, rear gutter side | 75554-32030 |
| 75596 | Drainage channel side decorative strip joint cover on the right side of the roof | 75596-32010 |
| 75597 | Drainage channel side decorative strip joint cover on the left side of the roof | 75597-32010 |
| 75613 | Right front fender outer protective strip | 75613-32020 |
| 75614 | Left front fender outer protective strip | 75614-32020 |
| 75623A | Right front fender outer rear protective strip | 75623-32060 |
| 75624A | Left front fender outer rear protective strip | 75624-32060 |
| 75641 | Right front corner window outer protective strip | 75641-32010 |
| 75642 | Left front corner window protection strip | 75642-32010 |
| 75643 | Protective strip on the outside of the right corner window | 75643-32010 |
| 75644 | Protective strip on the outside of the left corner window | 75644-32010 |
| 75651 | Right side outer protective strip | 75651-32020 |
| 75652 | Left side outer protective strip | 75652-32020 |
| 75671 | Right corner window decorative strip | 75671-32010 |
| 75672 | Left corner window decorative strip | 75672-32010 |
| 75721 | Right front door waistline protection strip | 75710-32030 |
| 75722 | Left front door waistline protection strip | 75720-32030 |
| 75731A | Right front door outer protective strip | 75731-32140 |
| 75732A | Left front door outer protective strip | 75732-32140 |
| 75741 | Right rear door outer protective strip | 75741-32170 |
| 75742 | Left rear door outer protective strip | 75742-32170 |
| 75751 | Right rear door waistline protection strip | 75730-32020 |
| 75752 | Left rear door waistline protection strip | 75740-32020 |
| 75851 | Right side door sill panel protective strip | 75850-39075 |
| 75852 | Left side door sill panel protective strip | 75850-39075 |
