Toyota CAMRY 丰田徽标和铭牌(车外和车内) — Figure 7501

Toyota CAMRY EPC diagram 7501, 丰田徽标和铭牌(车外和车内), with 1 images and 6 PNC and OE references.

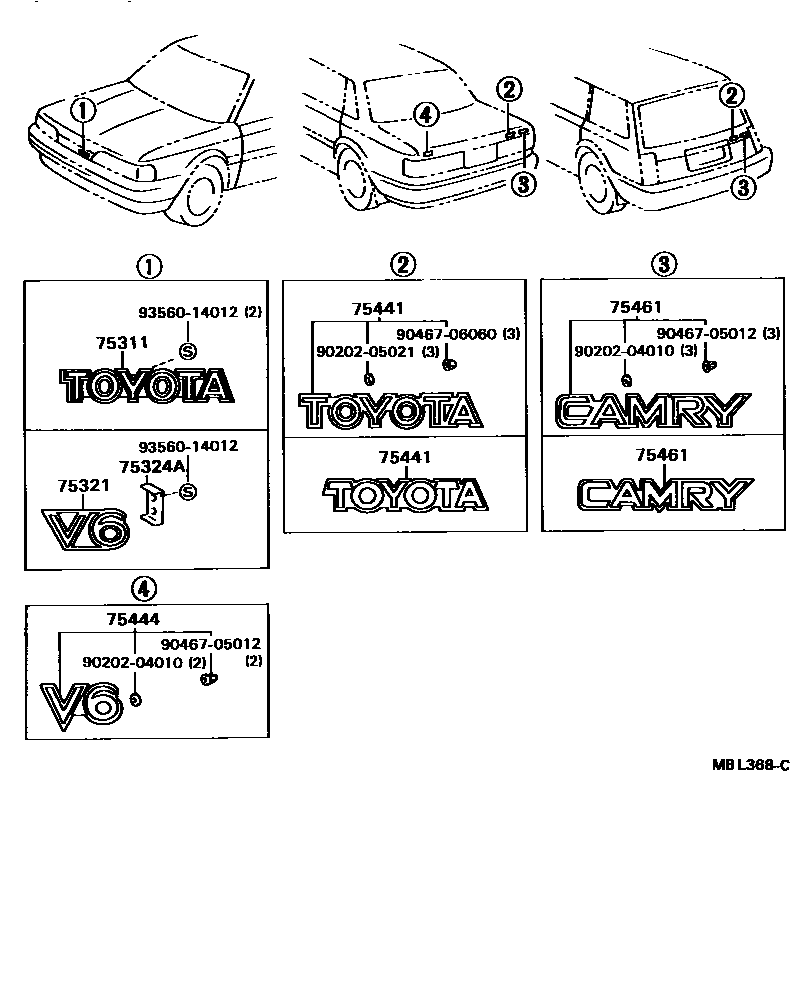

Toyota CAMRY 丰田徽标和铭牌(车外和车内) EPC diagram — MBL368C
丰田徽标和铭牌(车外和车内) — MBL368C (198611 – 999999)

PNC and OE references

PNCPart nameOE numbers
75311Radiator grille (or front panel) plate75311-32100
75321Radiator grille or front plate75321-32050
75324ARadiator grille nameplate fasteners75324-14150
75441No. 1 rear nameplate75441-32020 · 75441-32030
75444Trunk door No. 4 nameplate75444-32100
75461No. 2 rear nameplate (model mark)75442-32050 · 75442-32070
