Toyota CAMRY 安全带和儿童保护座椅 — Figure 7104

Toyota CAMRY EPC diagram 7104, 安全带和儿童保护座椅, with 2 images and 5 PNC and OE references.

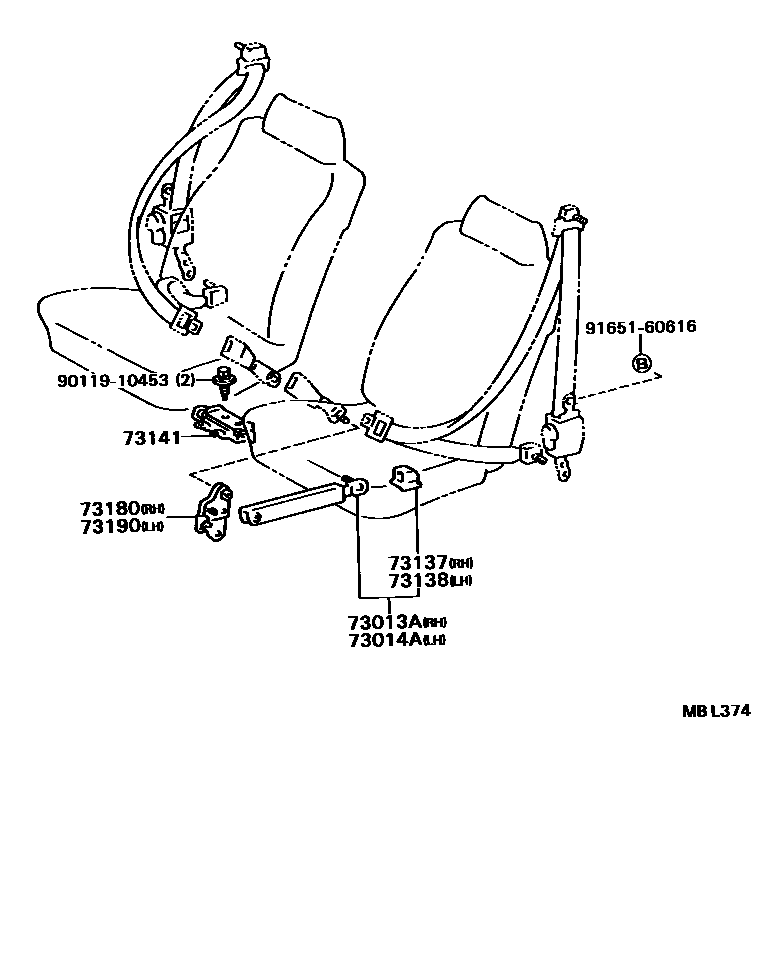

Toyota CAMRY 安全带和儿童保护座椅 EPC diagram — MBL374
安全带和儿童保护座椅 — MBL374 (198611 – 999999)

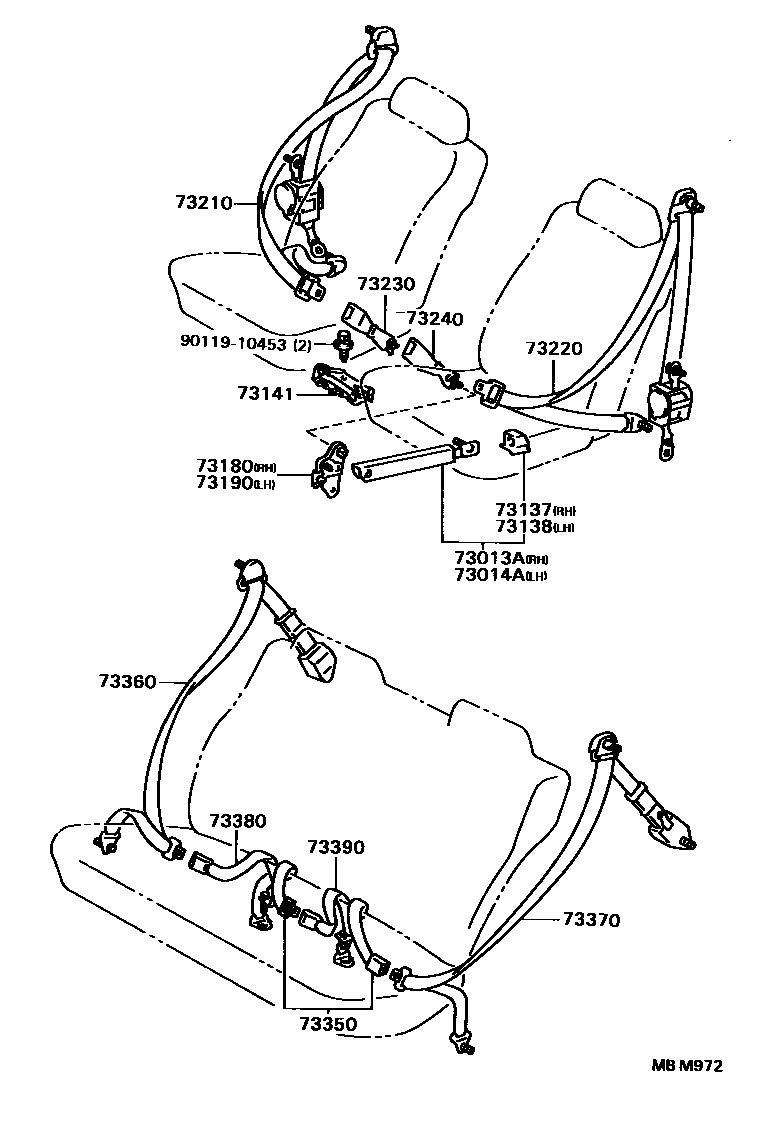

Toyota CAMRY 安全带和儿童保护座椅 EPC diagram — MBM972
安全带和儿童保护座椅 — MBM972 (198802 – 999999)

PNC and OE references

PNCPart nameOE numbers
73141Front seat belt anchor base73141-32040
73180Right seat belt inner anchor bracket assembly73011-32020
73190Left side seat belt inner anchor bracket assembly73012-32020
73380Three-point inner safety belt assembly for the right rear seat73380-32160
73390Three-point inner safety belt assembly for the left rear seat73380-32160
