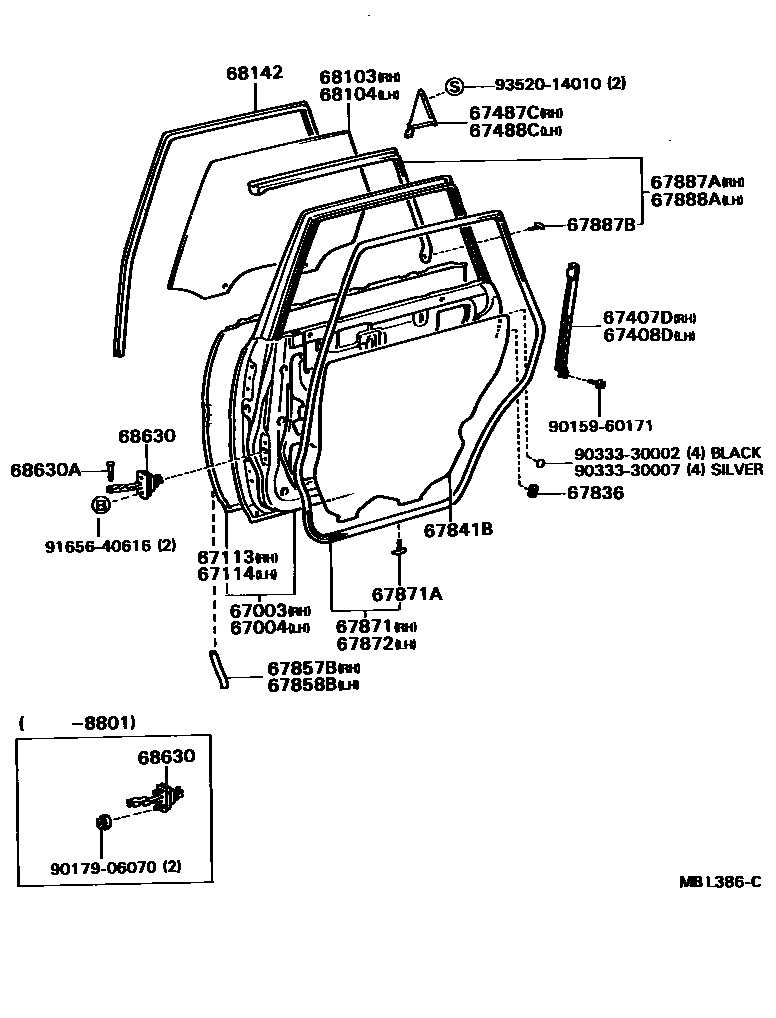

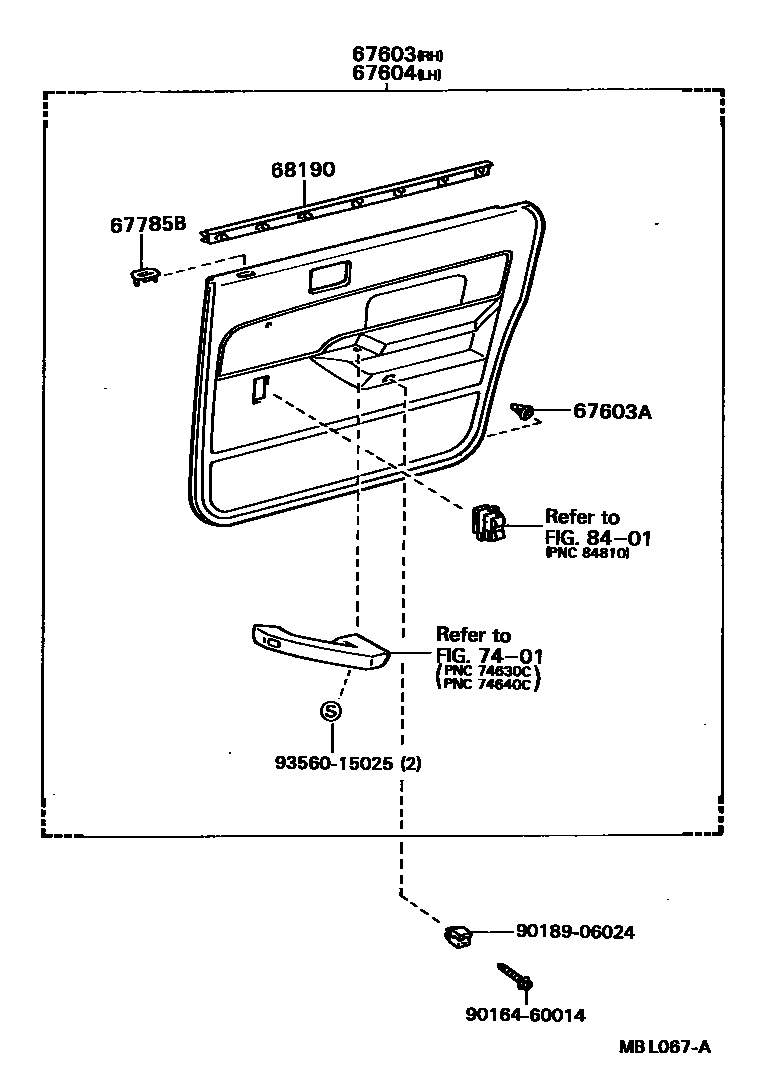

Toyota CAMRY 后门板和后门玻璃 — Figure 6705
Toyota CAMRY EPC diagram 6705, 后门板和后门玻璃, with 2 images and 25 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 67003 | Right rear door panel sub-assembly | 67003-32100 |
| 67004 | Left rear door panel sub-assembly | 67004-32100 |
| 67113 | Right rear door outer panel | 67113-32040 |
| 67114 | Left rear door outer panel | 67114-32040 |
| 67407D | Right rear door window glass rear guide channel sub-assembly | 67407-32030 |
| 67408D | Left rear door window glass rear guide channel sub-assembly | 67408-32030 |
| 67487C | Right rear door rear rail seal | 67487-32030 |
| 67488C | Left rear door rear rail seal | 67488-32030 |
| 67603A | Fixings (for rear door trim) | 67771-14040 |
| 67836 | Right rear door lock child restraint cover | 67836-14010 |
| 67841B | Rear door access hole cover | 67841-32050 |
| 67857B | Right rear door panel protector | 58741-12060 |
| 67858B | Left rear door panel protector | 58741-12060 |
| 67871 | Right rear door sealing strip | 67871-32050 · 67871-32070 |
| 67871A | Fixings (for rear door sealing strip) | 67867-20010 · 67867-32010 · 67868-20010 · 67868-30040 · 67868-32030 |
| 67872 | Left rear door sealing strip | 67872-32050 · 67872-32070 |
| 67887A | Right rear door seal No. 2 | 67887-32010 · 67887-32020 |
| 67887B | Catch (for rear door seal strip) | 67869-20020 · 67869-30020 |
| 67888A | Left rear door seal No. 2 | 67888-32010 · 67888-32020 |
| 68103 | Right rear door glass sub-assembly | 68113-32050 · 68113-32090 |
| 68104 | Left rear door glass sub-assembly | 68114-32050 · 68114-32090 |
| 68142 | Rear door glass lift chute | 68142-32050 · 68142-32070 · 68152-32010 · 68152-32030 |
| 68190 | Rear door glass inner sealing strip assembly | 68190-32030 |
| 68630 | Rear door opening limiter assembly | 68630-32030 · 68630-32031 |
| 68630A | Pin (for rear door opening limiter) | 68617-32010 |
