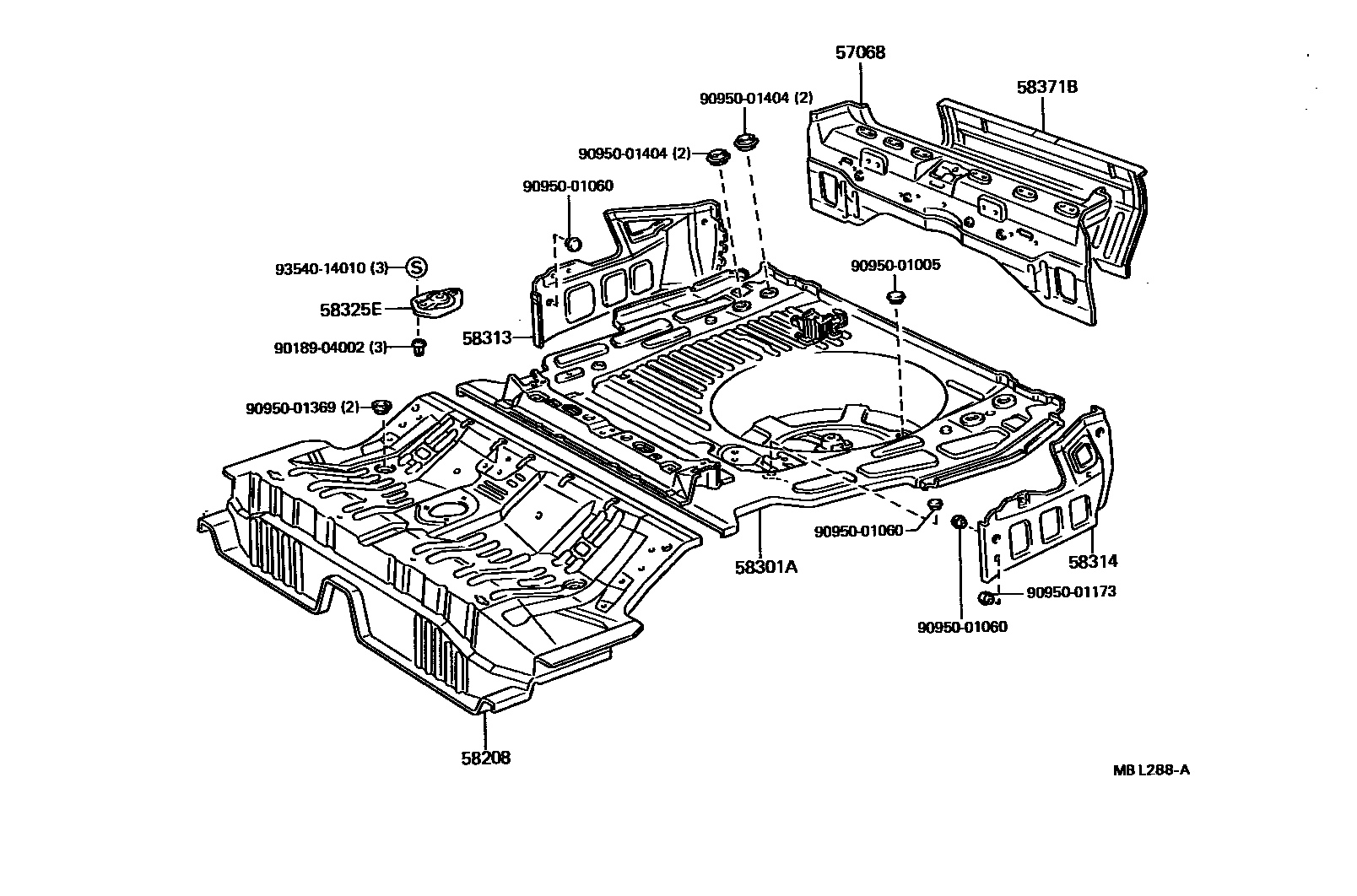

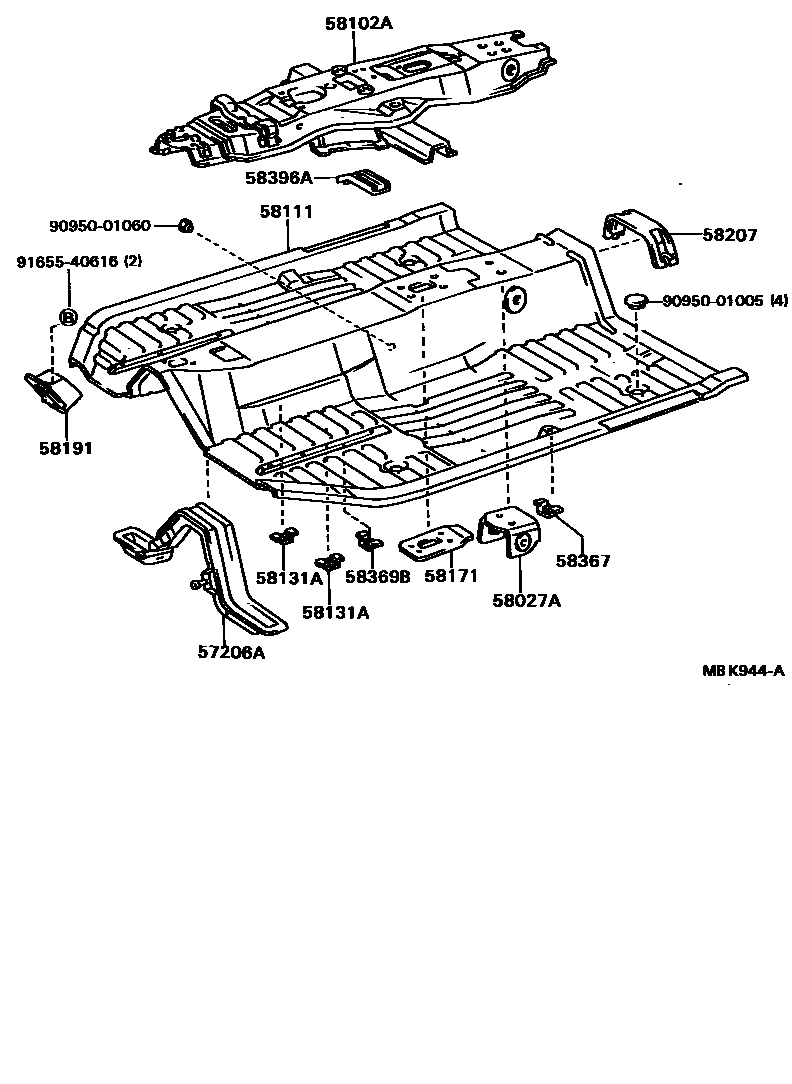

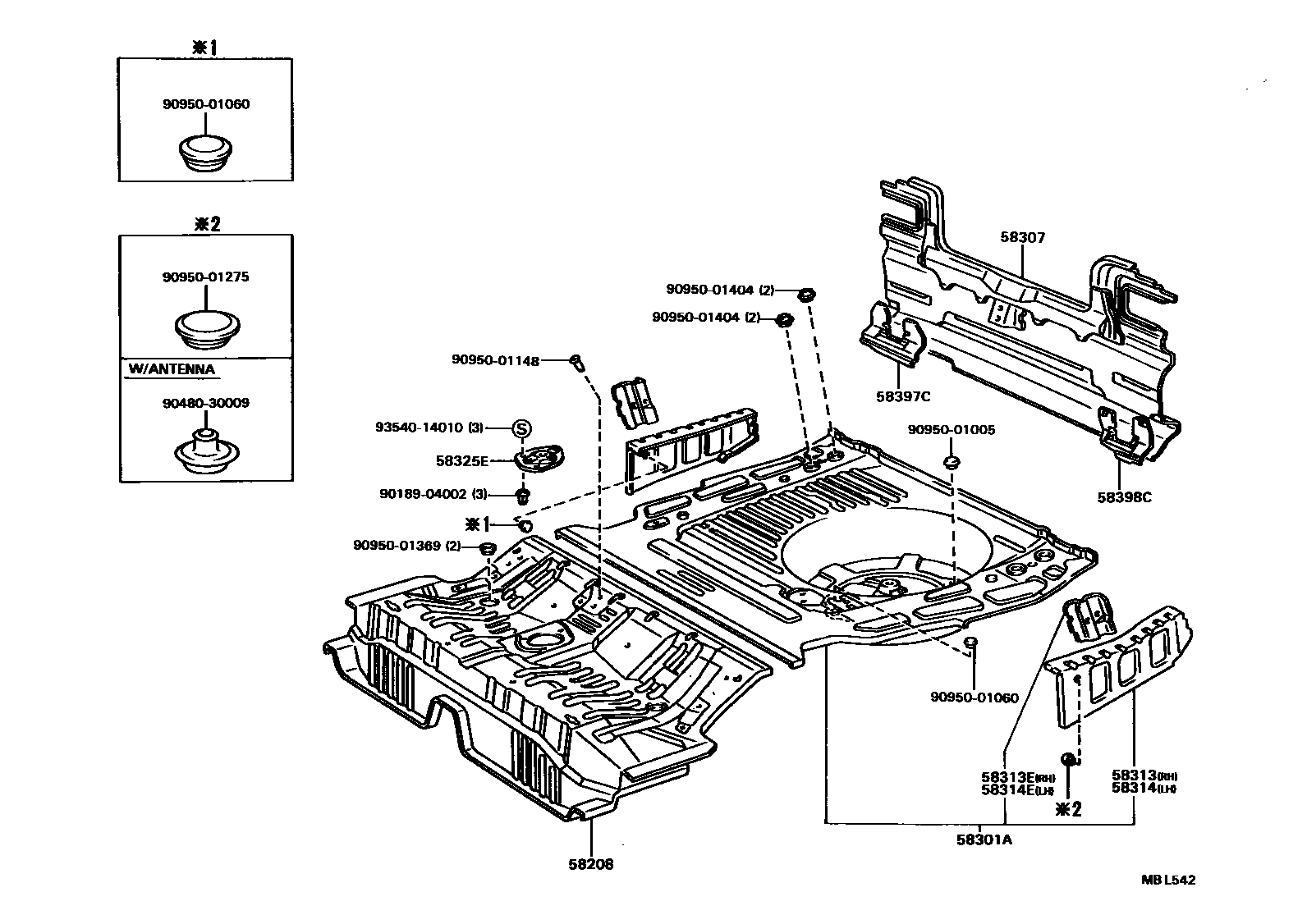

Toyota CAMRY 浅盘形地板和车身下背板 — Figure 5801
Toyota CAMRY EPC diagram 5801, 浅盘形地板和车身下背板, with 3 images and 23 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 57068 | Rear floor inner rear cross member sub-assembly | 57068-32020 |
| 57206A | Front floor No. 2 cross member sub-assembly | 57206-32010 |
| 58027A | Seat belt anchor reinforcement sub-assembly | 58027-32030 |
| 58102A | Front floor reinforcement sub-assembly | 58102-32900 |
| 58111 | front floor pan | 58111-32020 · 58111-32030 |
| 58131A | Front floor insulation pad bracket No. 1 | 58131-32010 |
| 58171 | Parking brake base reinforcement | 58107-32010 · 58171-32010 |
| 58191 | Front floor footrest | 58191-32030 |
| 58207 | Parking brake No. 1 cable bracket sub-assembly | 58207-32020 |
| 58208 | central floor base | 58201-32040 · 58201-32041 · 58201-32050 · 58201-32051 · 58201-32070 · 58201-32071 |
| 58301A | Rear floor sub-assembly | 58301-32150 · 58301-32900 |
| 58307 | Body lower back panel sub-assembly | 58307-32120 |
| 58313 | Rear floor right panel | 58313-32050 · 58313-32060 |
| 58313E | Rear floor right side panel extension | 58315-32020 |
| 58314 | rear floor left panel | 58314-32050 · 58314-32060 |
| 58314E | Rear floor left side panel extension | 58317-32020 |
| 58325E | Rear floor access hole cover | 58325-32020 |
| 58367 | Fuel pipe clamp bracket | 58266-22040 |
| 58369B | No. 3 fuel pipe bracket | 58369-32010 |
| 58371B | Body outer lower back panel | 58371-32090 |
| 58396A | Wire harness clamp bracket | 58396-32010 |
| 58397C | Right body lower back panel cover | 58397-32010 |
| 58398C | Left body lower back panel cover | 58398-32010 |
