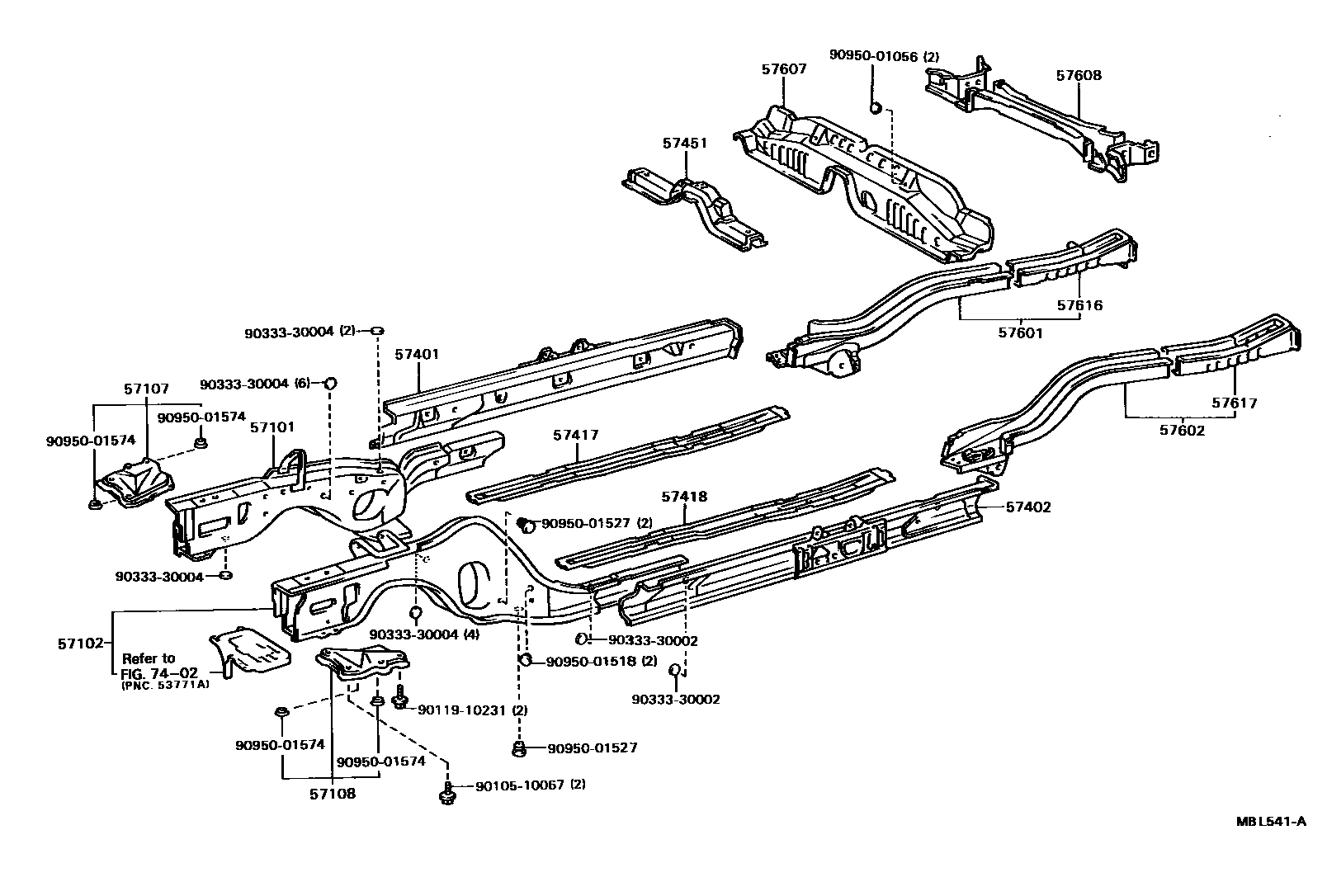

Toyota CAMRY Floor stringers — Figure 5305
Toyota CAMRY EPC diagram 5305, Floor stringers, with 1 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 57101 | Right front longitudinal beam sub-assembly | 57101-32050 · 57101-32080 |
| 57102 | Left front longitudinal beam sub-assembly | 57102-32050 |
| 57107 | Right support rod bracket sub-assembly | 57107-32020 |
| 57108 | Left support rod bracket sub-assembly | 57108-32020 |
| 57401 | Main floor right longitudinal beam sub-assembly | 57401-32060 |
| 57402 | Main floor left longitudinal beam sub-assembly | 57402-32060 |
| 57417 | Front floor lower right reinforcement | 57417-32030 |
| 57418 | Front floor lower left reinforcement | 57417-32030 |
| 57451 | front floor cross member | 57408-32020 |
| 57601 | Rear floor right longitudinal beam sub-assembly | 57601-32060 · 57601-32100 |
| 57602 | Rear floor left longitudinal beam sub-assembly | 57602-32060 · 57602-32090 |
| 57607 | Rear floor No. 1 cross member sub-assembly | 57605-32030 |
| 57608 | Rear floor No. 2 cross member sub-assembly | 57606-32030 · 57606-32040 |
| 57616 | Rear floor right rear longitudinal member | 57615-32903 · 57615-32904 · 57615-32905 · 57615-32906 |
| 57617 | Rear floor left rear longitudinal member | 57616-32903 · 57616-32904 · 57616-32905 · 57616-32911 · 57616-32912 |
