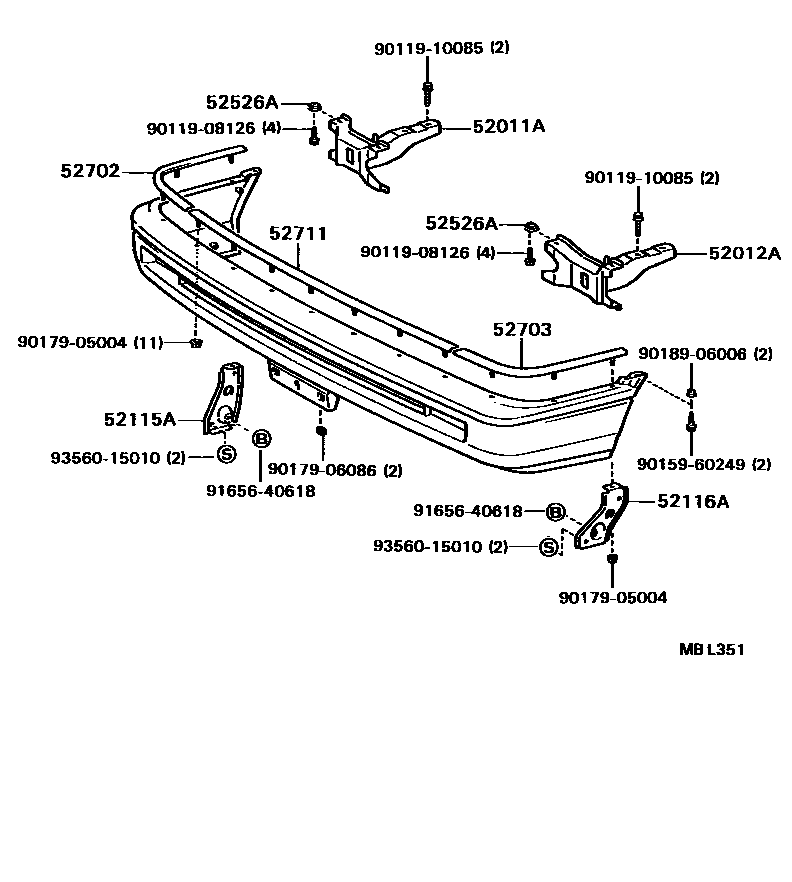

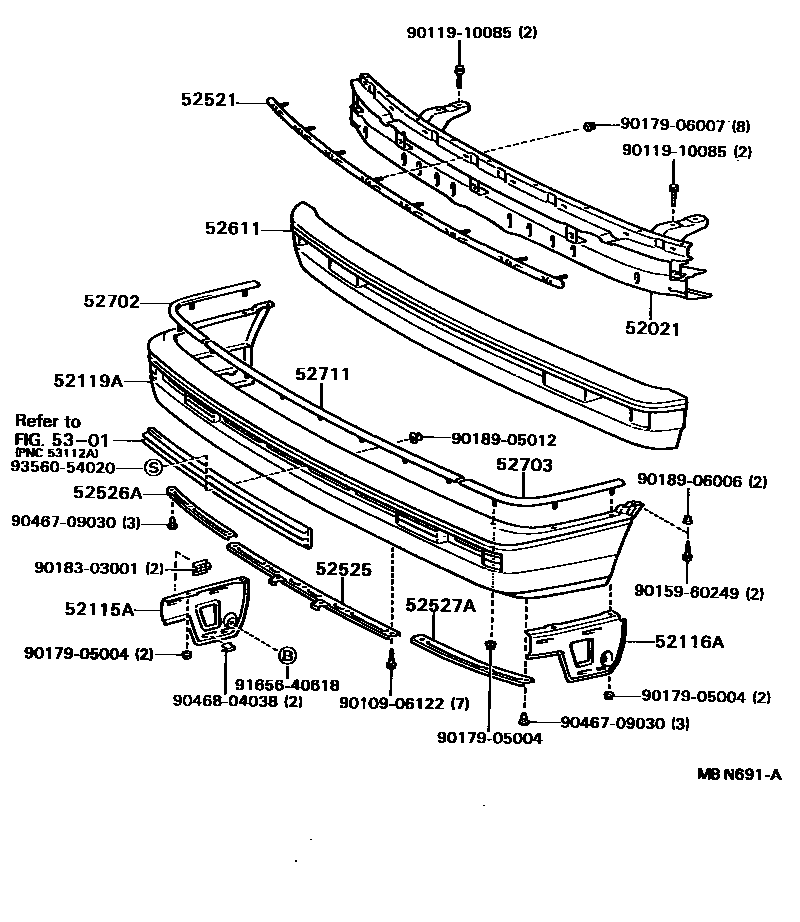

Toyota CAMRY 前保险杠及附件 — Figure 5201
Toyota CAMRY EPC diagram 5201, 前保险杠及附件, with 2 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52011A | Front bumper right arm sub-assembly | 52011-32070 |
| 52012A | Front bumper left arm sub-assembly | 52012-32050 |
| 52021 | Front bumper reinforcement sub-assembly | 52021-32050 |
| 52115A | Front bumper right side bracket | 52115-32030 · 52115-32040 |
| 52116A | Front bumper left bracket | 52116-32030 · 52116-32040 |
| 52119A | front bumper cover | 52119-32905 |
| 52521 | Front bumper upper center fixing bracket | 52521-32070 |
| 52525 | Front bumper lower center fixing bracket | 52525-32030 |
| 52526A | Front bumper No. 1 lower fixing bracket | 52526-32050 · 52565-12040 |
| 52527A | Front bumper No. 2 lower center fixing bracket | 52527-32020 |
| 52611 | front bumper energy absorber | 52611-32080 |
| 52702 | Front bumper right side protective strip sub-assembly | 52702-32030 · 52702-32040 |
| 52703 | Front bumper left protective strip sub-assembly | 52703-32030 · 52703-32040 |
| 52711 | Front bumper protection strip | 52711-32030 · 52711-32040 |
