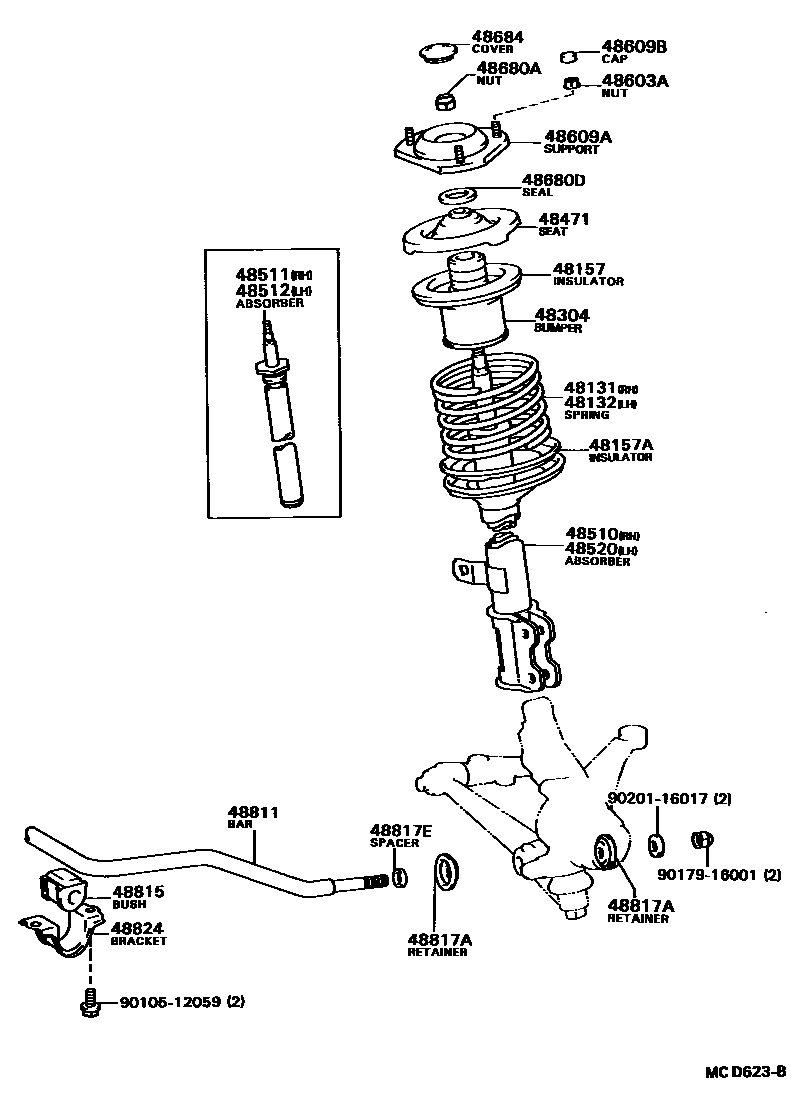

Toyota CAMRY Front Spring & Shock Absorber — Figure 4803
Toyota CAMRY EPC diagram 4803, Front Spring & Shock Absorber, with 1 images and 21 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 48131 | Right front coil spring | 48131-32300 · 48131-32320 · 48131-32350 · 48131-32360 · 48131-32380 · 48131-32860 |
| 48132 | Left front coil spring | 48131-32300 · 48131-32320 · 48131-32350 · 48131-32360 · 48131-32380 · 48131-32860 |
| 48157 | Front coil spring upper vibration isolation pad | 48157-32020 |
| 48157A | Front coil spring lower vibration isolation pad | 48158-32020 |
| 48304 | No. 1 front spring buffer block sub-assembly | 48304-32030 |
| 48471 | Front spring seat | 48044-32020 |
| 48510 | Right front shock absorber assembly | 48510-32140 |
| 48511 | Right front shock absorber (for adhesive cartridge type) | 48511-32070 |
| 48512 | Left front shock absorber (for adhesive cartridge type) | 48511-32070 |
| 48520 | Left front shock absorber assembly | 48520-32140 |
| 48603A | Nut (for front suspension mount) | 90179-10095 |
| 48609A | Front suspension support sub-assembly | 48609-32030 |
| 48609B | Cover (for front suspension mounts) | 90339-15002 |
| 48680A | Nut (for front mount to front shock absorber) | 94182-11400 |
| 48680D | Dust seal (for front suspension mount) | 90303-22049 |
| 48684 | Bearing dust cover | 48684-32010 |
| 48811 | front stabilizer bar | 48811-32080 · 48811-32090 · 48811-32120 |
| 48815 | Front stabilizer bar bushing No. 1 | 48815-32040 · 48815-32060 |
| 48817A | Crash pad block No. 1 (for front stabilizer bar) | 90948-02102 · 90948-02106 · 90948-02115 · 90948-02117 · 90948-02118 · 90948-02124 |
| 48817E | Spacer (for stabilizer bar) | 90560-16005 |
| 48824 | front stabilizer bar bracket | 48824-32030 |
