Toyota CAMRY 制动配管和卡箍 — Figure 4708

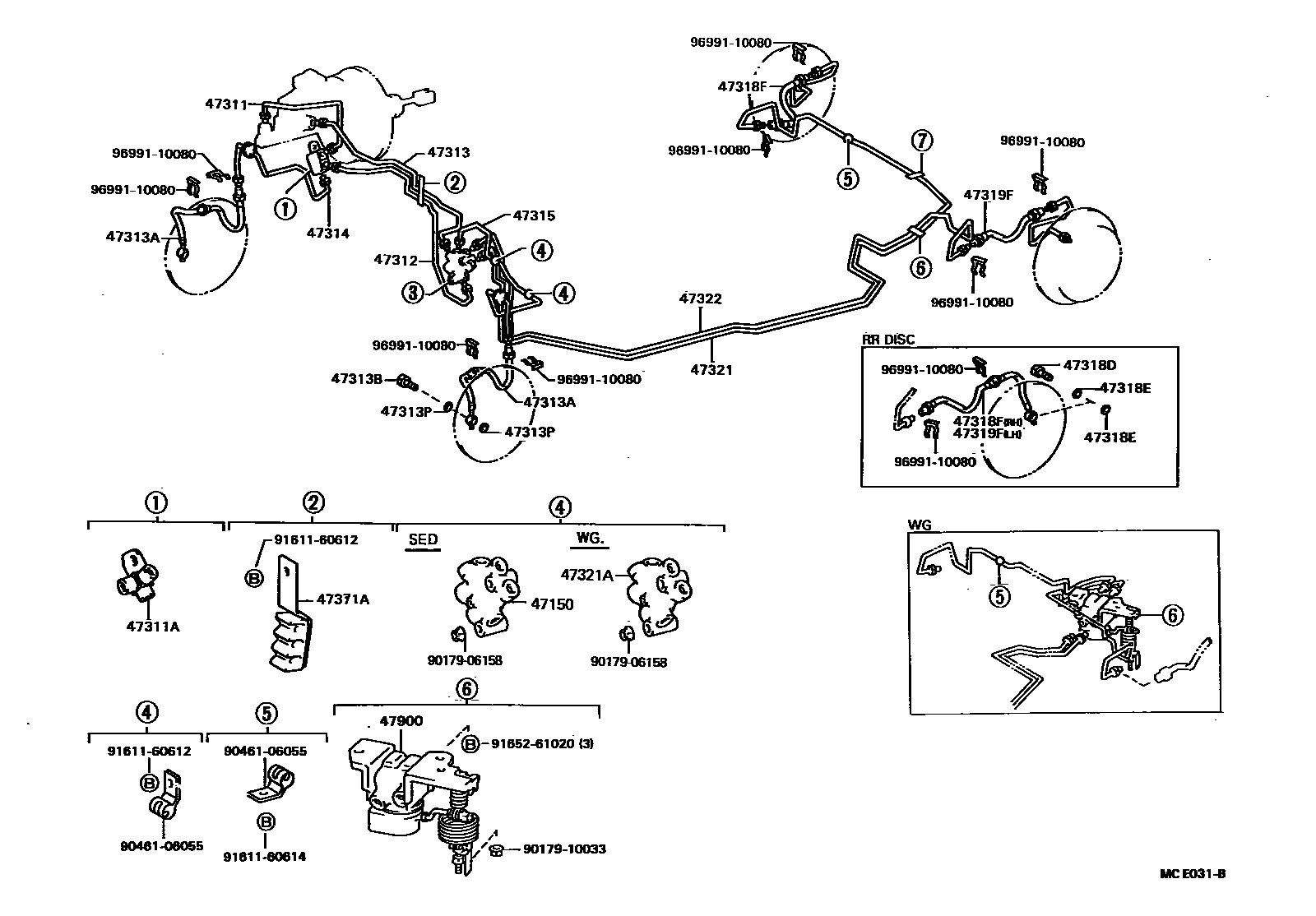

Toyota CAMRY EPC diagram 4708, 制动配管和卡箍, with 1 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 47150 | Proportional valve assembly | 47150-20130 · 47150-20140 |
| 47311 | No. 1 front brake pipe | 47311-32080 |
| 47311A | Pipe fitting (for front brake pipe) | 90413-10122 · 90413-10193 |
| 47312 | No. 2 front brake pipe | 47312-32130 |
| 47313 | No. 3 front brake pipe | 47313-32120 |
| 47313A | No. 1 front flexible hose | 90947-02496 |
| 47313B | Connector bolt (for front flex hose) | 90401-10015 |
| 47313P | Gasket (for front flex hose) | 90430-10074 |
| 47314 | No. 4 front brake pipe | 47314-32080 |
| 47315 | No. 5 front brake pipe | 47315-32060 |
| 47318D | Connector bolt (for rear flex hose) | 90401-10015 |
| 47318E | Gasket (for rear flex hose) | 90430-10074 |
| 47318F | Right rear flexible hose | 90947-02497 · 90947-02498 |
| 47319F | Left rear flexible hose | 90947-02497 · 90947-02498 |
| 47321 | No. 1 rear brake pipe | 47321-32110 |
| 47321A | Pipe fitting (for rear brake pipe) | 90413-10205 |
| 47322 | No. 2 rear brake pipe | 47322-32100 |
| 47371A | No. 1 brake pipe clamp | 47371-32010 |
| 47900 | Load sensing valve assembly with spring | 47900-32010 · 47900-32011 · 47900-32020 · 47900-32021 |
