Toyota CAMRY 后鼓式制动器分泵和底板 — Figure 4706

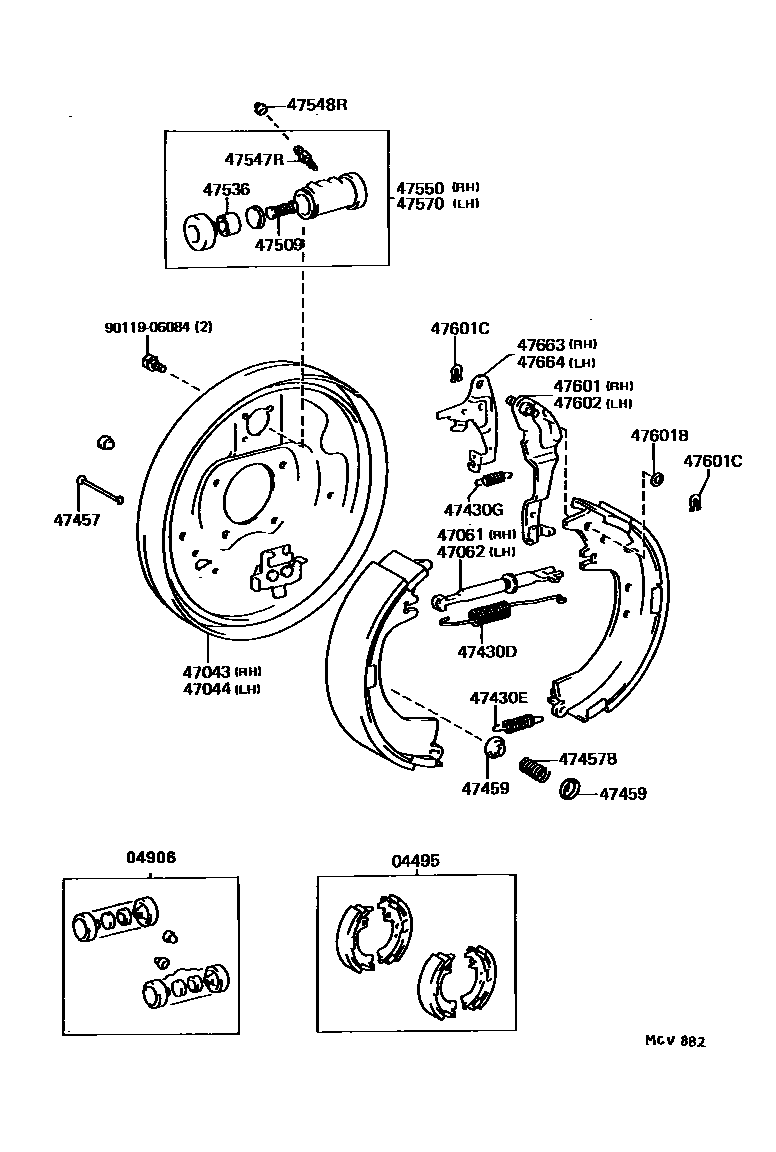

Toyota CAMRY EPC diagram 4706, 后鼓式制动器分泵和底板, with 1 images and 24 PNC and OE references.

Toyota CAMRY 后鼓式制动器分泵和底板 EPC diagram — MCV882
后鼓式制动器分泵和底板 — MCV882 (198611 – 999999)

PNC and OE references

PNCPart nameOE numbers
04495Rear brake shoe assembly04495-32020 · 04495-32021
04906Rear wheel pump cup assembly04906-12030
47043Right rear brake base plate sub-assembly47043-32020
47044Left rear brake base plate sub-assembly47044-32020
47061Right parking brake shoe push rod assembly47061-32020
47062Left parking brake shoe push rod assembly47062-32020
47430DTension spring (for rear brake shoe return)90506-29008 · 90506-29009
47430ETension spring (for rear brake shoe return)90506-23346
47430GTension spring (for rear wheel brake automatic adjustment lever)90506-12011
47457Brake shoe limit spring pin (for rear wheel brake)47447-20030
47457BCompression spring (for rear brake shoe limit spring pin)90501-18017
47459Brake shoe limit spring seat (for rear wheel brake)47449-30020
47509Rear wheel pump piston spring sub-assembly47509-12010
47536Wheel brake cylinder piston (for rear wheel brake)47051-22031
47547RBleed plug (for rear drum brake)47547-22020
47548RBleeder plug cap (for rear drum brake)31478-30010
47550Rear wheel brake cylinder assembly (for front right or upper right)47550-32020
47570Rear wheel brake cylinder assembly (for front left or upper left)47570-32020
47601Right parking brake shoe lever sub-assembly (for rear wheel brake)47601-32020
47601BRear parking brake shoe lever gasket90564-08150 · 90564-08151 · 90564-08152 · 90564-08172 · 90564-08173 · 90564-08174
47601CC-shaped washer (for rear brake)90213-06013
47602Left parking brake shoe lever sub-assembly (for rear wheel brake)47602-32020
47663Right automatic adjustment lever (for rear brake)47643-32020
47664Left side automatic adjustment lever (for rear brake)47644-32020
