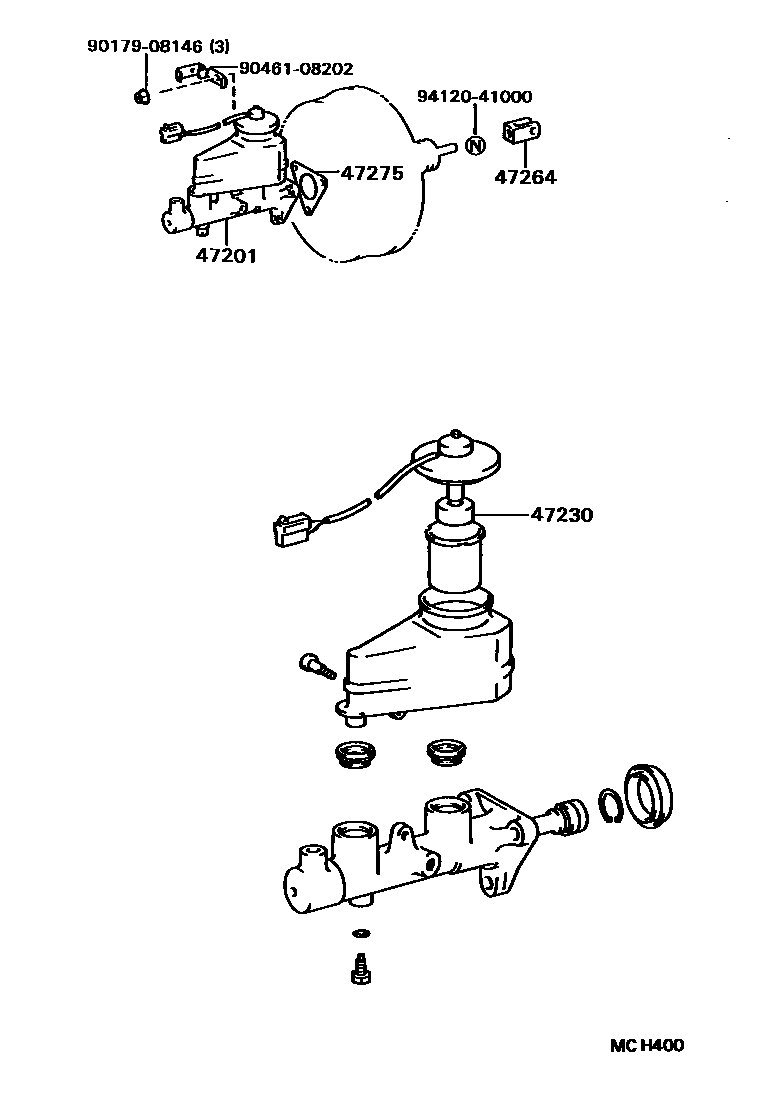

Toyota CAMRY 制动总泵 — Figure 4702
Toyota CAMRY EPC diagram 4702, 制动总泵, with 2 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 47201 | Brake master cylinder sub-assembly | 47201-32140 |
| 47202 | Brake master cylinder reservoir sub-assembly | 47220-20060 · 47220-32040 |
| 47230 | Brake master cylinder fluid reservoir filler cap assembly | 47230-20060 · 84460-20110 |
| 47230B | Dust seal (for reservoir filler cap) | 90304-43001 |
| 47264 | Master cylinder push rod U-shaped clamp | 47264-20040 |
| 47275 | brake master cylinder gasket | 47275-32010 |
| 47295 | switch operated float | 47295-20040 |
| 47299 | Brake master cylinder reservoir filter | 47299-20030 |
