Toyota CAMRY 前转向齿轮和连杆 — Figure 4505

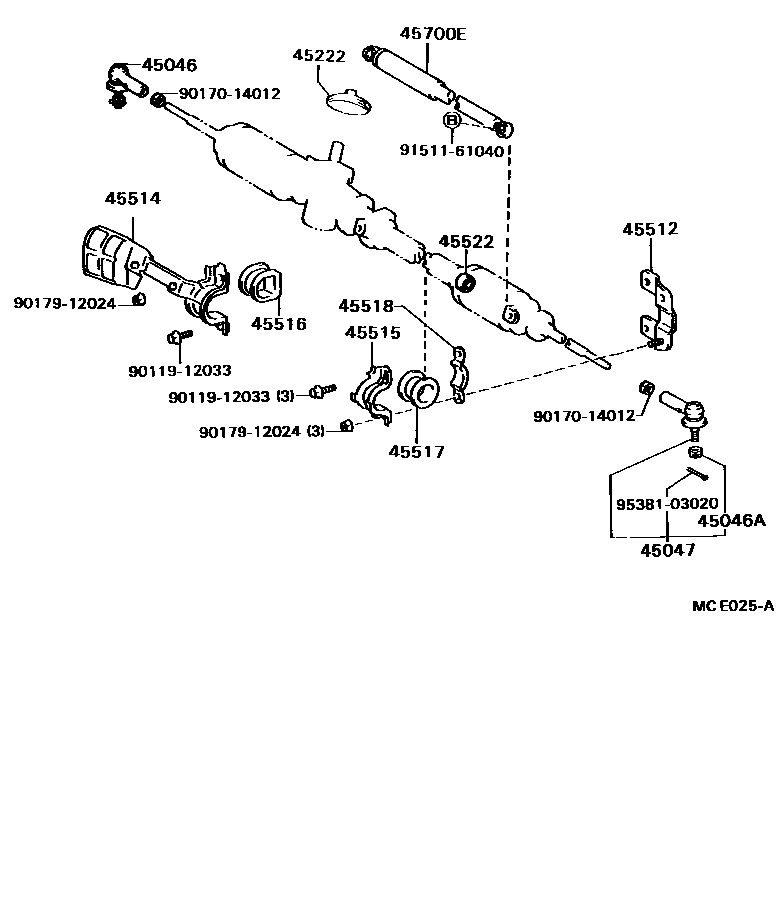

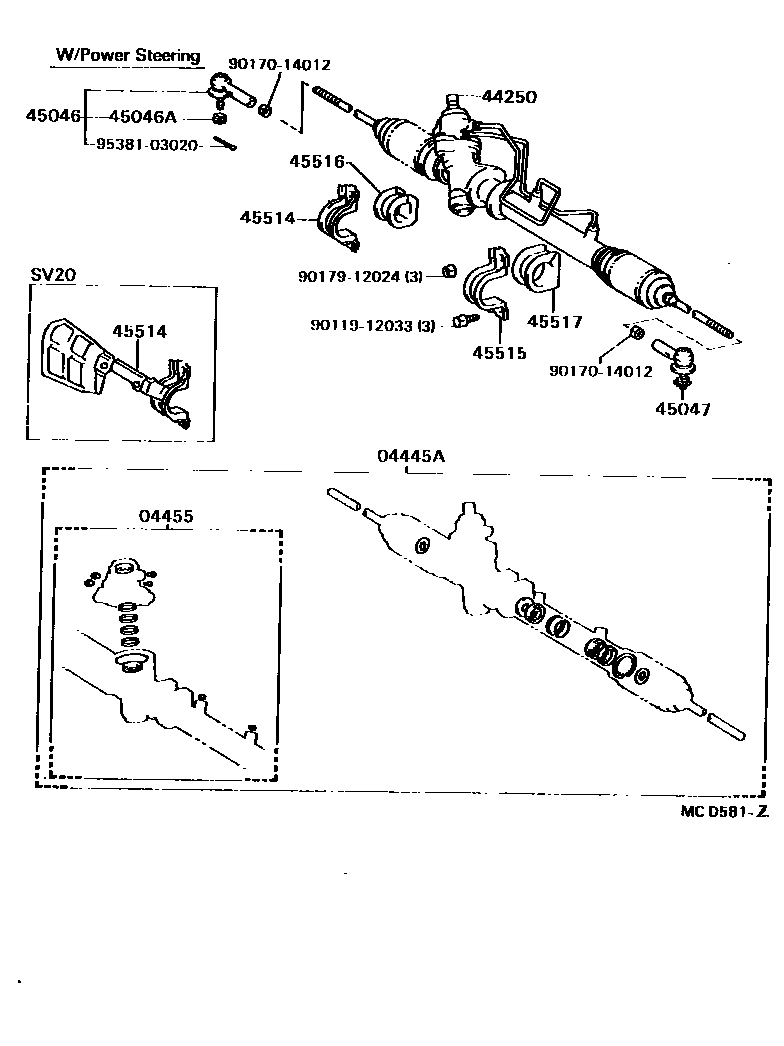

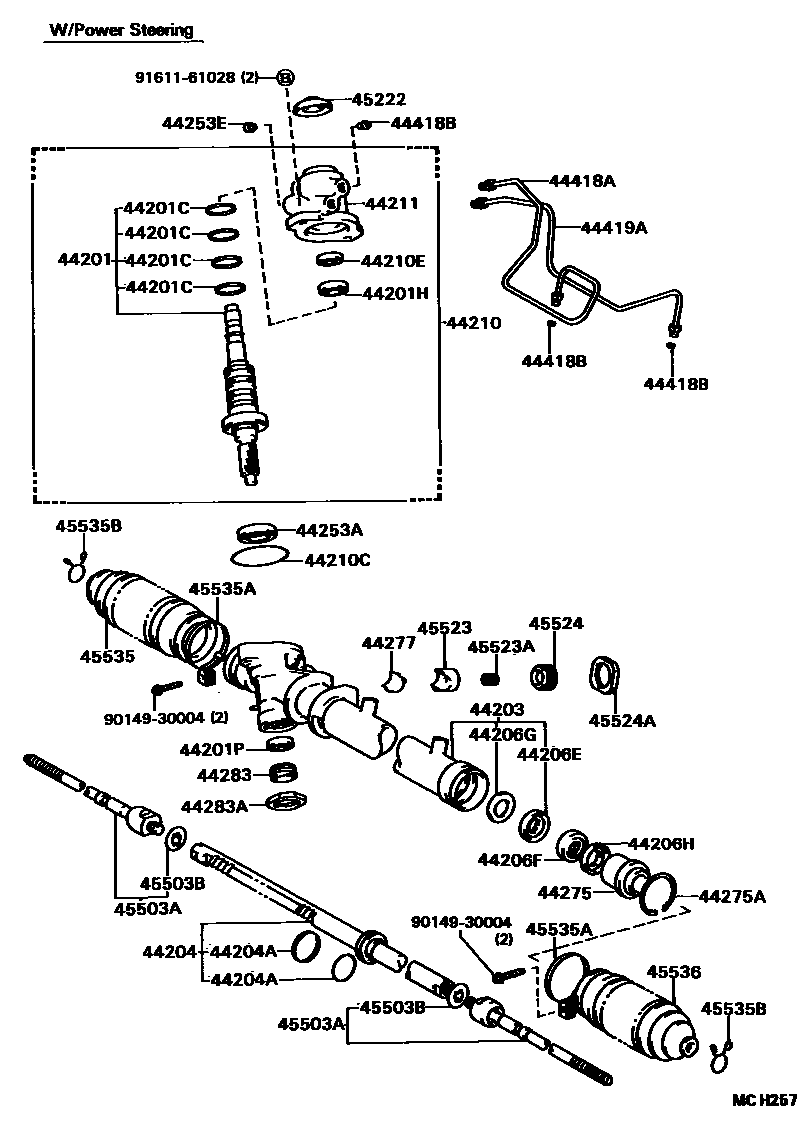

Toyota CAMRY EPC diagram 4505, 前转向齿轮和连杆, with 3 images and 50 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04445A | Power steering gear gasket assembly (for rack and pinion) | 04445-32030 |
| 04455 | Power steering control valve overhaul gasket assembly | 04455-32020 |
| 44201 | Power steering control valve sub-assembly | 44201-32030 |
| 44201C | Ring (for power steering control valve) | 90562-33002 |
| 44201H | Bearing (for upper power steering control valve) | 90363-19002 |
| 44201P | Bearing (for lower power steering control valve) | 90363-13002 |
| 44203 | Power steering rack housing sub-assembly | 44203-32050 · 44203-32051 |
| 44204 | Power steering rack sub-assembly | 44204-32030 · 44204-32040 |
| 44204A | Ring (for steering rack piston) | 90301-36004 · 90562-40001 |
| 44206E | No. 1 oil seal (for power steering cylinder barrel) | 90310-25013 |
| 44206F | No. 2 oil seal (for power steering cylinder barrel) | 90310-25011 |
| 44206G | No. 1 spacer (for power steering cylinder barrel) | 90560-26009 |
| 44206H | No. 2 spacer (for power steering cylinder barrel) | 90560-26008 |
| 44210 | Power steering control valve assembly | 44210-32050 |
| 44210C | O-ring (for power steering control valve) | 96711-24060 |
| 44210E | Oil seal (for power steering control valve) | 90311-19006 |
| 44211 | control valve housing | 44211-20100 |
| 44250 | Power steering gear assembly (for rack and pinion) | 44250-32050 · 44250-32060 |
| 44253A | Oil seal (for power steering rack housing) | 90310-28001 |
| 44253E | Connector seat (for power steering rack housing) | 90410-06002 |
| 44275 | Cylinder end stop | 44275-32010 · 44275-32011 |
| 44275A | Bore snap ring (for cylinder end stop) | 90521-53002 |
| 44277 | Rack guide block seat | 44277-24010 |
| 44283 | Rack housing cover | 45524-16010 |
| 44283A | Nut (for rack housing cover) | 90179-36002 |
| 44418A | Right steering pressure oil pipe | 44418-32050 |
| 44418B | Joint seat (for steering pressure oil pipe) | 90410-04003 · 96390-71200 |
| 44419A | Left steering pressure oil pipe | 44419-32050 |
| 45046 | Right tie rod end sub-assembly | 45046-19175 |
| 45046A | Castle nuts (for tie rod ends) | 90171-12028 |
| 45047 | Left tie rod end sub-assembly | 45046-19175 |
| 45222 | Steering gear dust cover | 45222-20010 · 45222-32010 |
| 45503A | No. 1 steering rack end sub-assembly | 45503-29105 |
| 45503B | Jaw washer (for steering rack end) | 90214-14002 |
| 45512 | steering rack housing adapter | 45512-32010 |
| 45514 | No. 1 steering rack housing bracket | 45505-32040 · 45505-32050 · 45514-32060 · 45514-32090 |
| 45515 | No. 2 steering rack housing bracket | 45515-32070 · 45515-32080 |
| 45516 | No. 1 steering rack housing seal | 45516-32020 · 45516-32030 |
| 45517 | No. 2 steering rack housing seal | 45517-32020 · 45517-32030 |
| 45518 | No. 3 steering rack housing bracket | 45518-32040 |
| 45522 | steering rack bushing | 45522-10021 |
| 45523 | Rack guide block (for steering gear) | 45523-24010 |
| 45523A | Spring (for steering gear rack guide block) | 90501-23023 |
| 45524 | Steering rack guide block spring cover | 45524-16010 |
| 45524A | Nut (for steering rack guide spring cover) | 90179-36002 |
| 45535 | No. 1 steering rack dust cover | 45535-20050 |
| 45535A | Clamp (for steering rack dust boot) | 90461-10709 · 90949-01082 |
| 45535B | Clamp (for steering rack dust boot) | 90467-18003 |
| 45536 | No. 2 steering rack dust cover | 45535-32030 |
| 45700E | Steering damper assembly | 45700-32030 |
