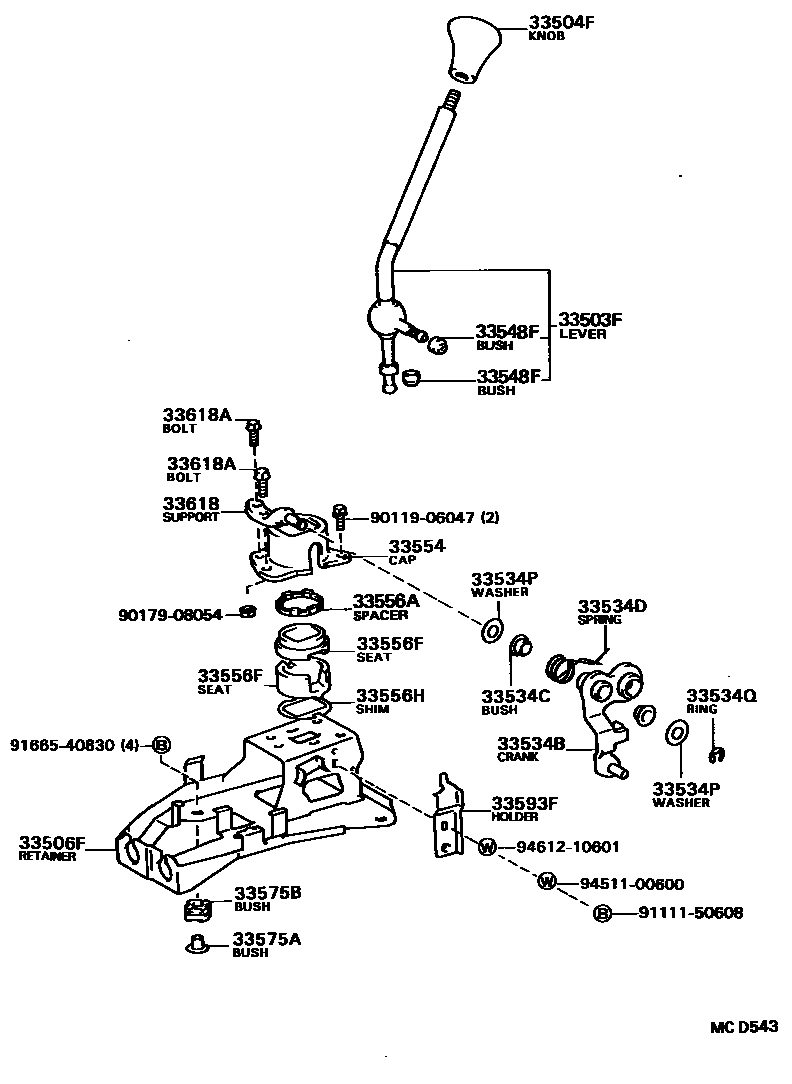

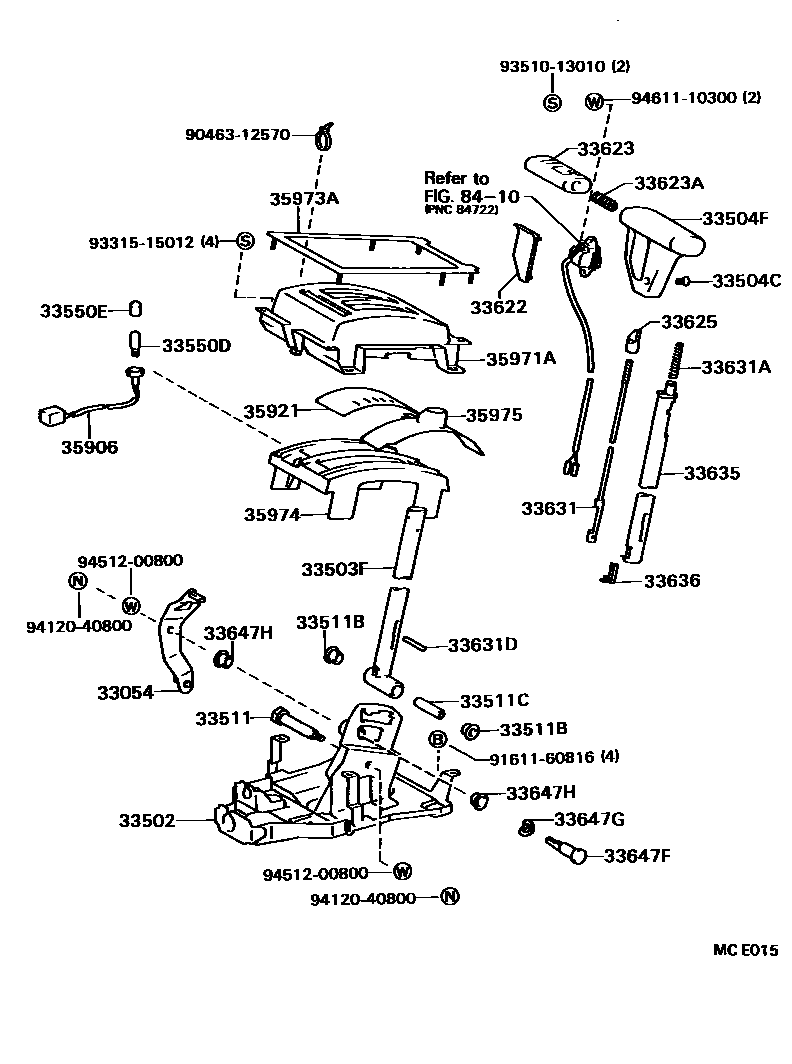

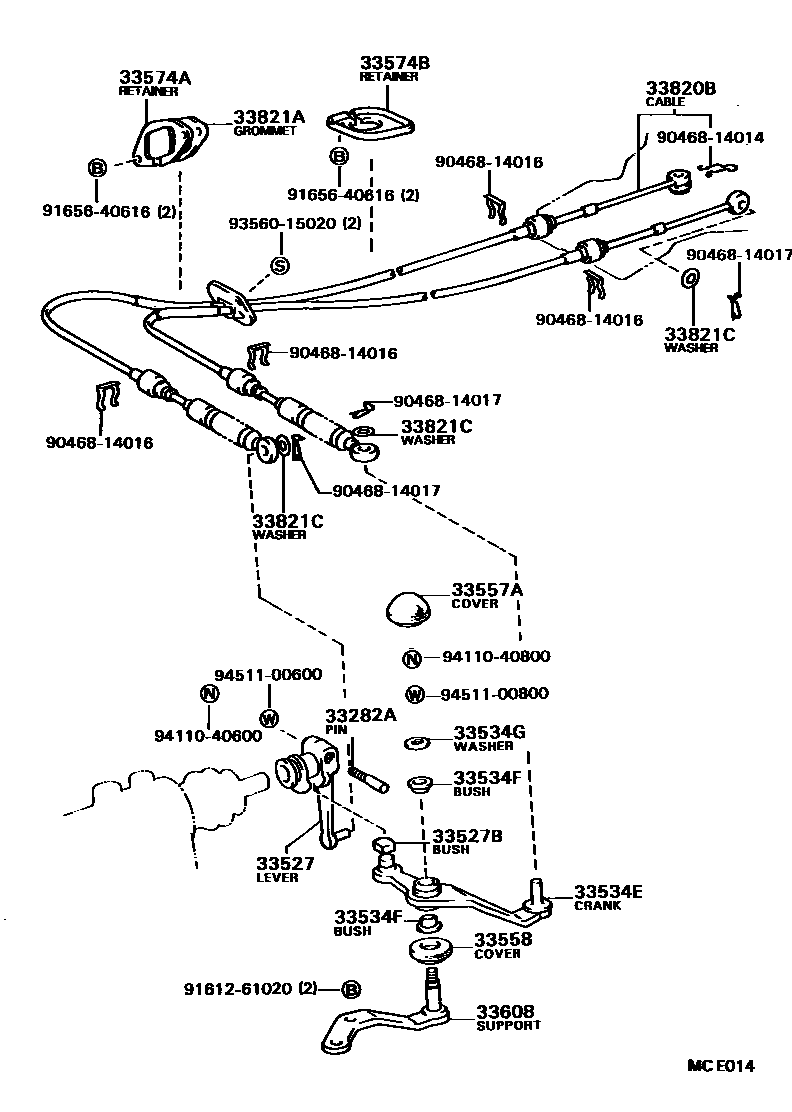

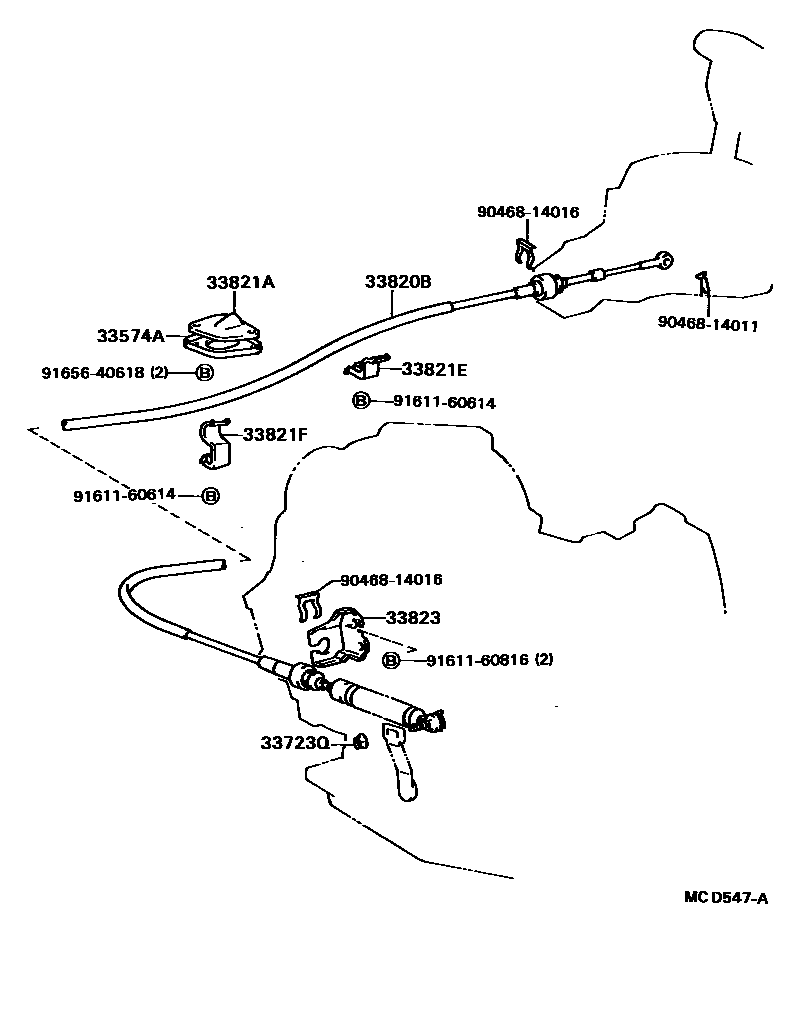

Toyota CAMRY Shift Lever & Retainer — Figure 3312
Toyota CAMRY EPC diagram 3312, Shift Lever & Retainer, with 4 images and 56 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33054 | No. 2 shift lever sub-assembly (for floor shift) | 33054-32070 |
| 33282A | Shift lever lock pin (for shift lever) | 33282-35010 |
| 33502 | Shift lever base plate sub-assembly | 33502-32060 |
| 33503F | Shift lever sub-assembly (for floor shift) | 33503-12231 · 33503-12260 · 33503-32110 |
| 33504C | Screw (for securing shift lever knob) | 90159-40109 |
| 33506F | Shift control lever stopper sub-assembly (for floor shift) | 33506-32050 |
| 33511 | Control shaft (for floor shifting) | 33511-32020 |
| 33511B | Bushing (for control shaft) | 90385-11003 |
| 33511C | Shaft collar (for control shaft) | 90387-08082 |
| 33527 | Gear shift lever (for floor shift) | 33527-32010 |
| 33527B | Bushing (for shift control lever) | 90389-10009 |
| 33534B | No. 1 gear selection right-angle lever | 33509-12050 |
| 33534C | Bushing (for No. 1 gear selector right-angle lever) | 90386-12013 |
| 33534D | Torsion spring (for No. 1 gear selector right-angle lever) | 90508-20062 |
| 33534E | No. 2 gear selection right-angle lever | 33534-32030 |
| 33534F | Bushing (for No. 2 gear selector right-angle lever) | 90386-12022 |
| 33534G | Flat washer (for No. 2 gear selector right-angle lever) | 90201-08028 |
| 33534P | Flat washer (for No. 1 gear selector right-angle lever) | 90201-12029 |
| 33534Q | E-ring (for No. 1 gear selection right-angle lever) | 96160-00900 |
| 33548F | Shift lever bushing No. 1 (for floor shift) | 33548-12021 |
| 33550D | position indicator light bulb | 90981-11018 |
| 33550E | position indicator cover | 90339-04023 |
| 33554 | shift lever cover | 33554-12040 |
| 33556A | Spacer (for transmission shift lever ball seat) | 90561-35001 |
| 33556F | Transmission shift lever ball seat | 33556-12020 · 33556-12030 |
| 33556H | Spacer (for transmission shift lever ball seat) | 90564-30003 · 90564-30004 · 90564-30005 · 90564-30006 · 90564-30007 · 90564-30008 · 90564-30009 · 90564-30010 · 90564-30011 · 90564-30012 |
| 33557A | No. 1 gear selection right-angle lever dust cover | 33557-32010 |
| 33558 | No. 2 gear selection right-angle lever dust cover | 33558-32010 |
| 33574A | No. 1 shift cable retaining ring retaining ring | 33574-32110 · 33574-32120 |
| 33574B | No. 2 shift cable seal | 33574-32120 |
| 33575A | Bushing No. 1 (for shift lever stop) | 90389-08031 |
| 33575B | Bushing No. 2 (for shift lever stop) | 90389-10018 |
| 33593F | Spring retainer (for floor shift) | 33593-12020 |
| 33608 | Gear selection right-angle lever bracket sub-assembly | 33608-32020 |
| 33618 | No. 1 gear selection right angle lever bracket | 33618-12021 |
| 33618A | Bolt (for gear selector right-angle lever bracket) | 90105-08078 · 90119-06268 |
| 33623A | Compression spring (for shift lever knob button) | 90501-07009 |
| 33625 | Shift lever handle sleeve | 33625-32010 |
| 33631 | Locking lever | 33631-16050 |
| 33631A | Compression spring (for locking lever) | 90501-07005 |
| 33631D | Grooved pin (for locking lever) | 90256-04003 |
| 33635 | Cable guide (for gear selector) | 33635-12020 |
| 33636 | Cable guide No. 2 (for gear selector) | 33636-35010 |
| 33647F | Control linkage shaft (for floor shift) | 33647-32010 |
| 33647G | Wave washer (for controlling connecting rod shaft) | 90206-10003 |
| 33647H | Bushing (used to control connecting rod shaft) | 90386-10012 |
| 33723Q | Nut (for connecting rod swivel joint) | 90179-08054 |
| 33820B | Transmission control cable assembly | 33820-32140 · 33820-32160 · 33820-32161 |
| 33821A | No. 1 retaining ring (for transmission control cable) | 90480-01357 · 90480-01366 · 90480-01367 |
| 33821C | Flat Washer (for transmission control cable) | 90201-08267 · 90201-10042 |
| 33821E | Clamp No. 1 (for transmission control cable) | 90949-01374 |
| 33821F | Clamp No. 2 (for transmission control cable) | 90949-01377 |
| 33823 | No. 1 transmission control cable bracket | 33823-32020 |
| 35906 | Indicator light wiring harness sub-assembly | 35906-35050 · 35906-35051 |
| 35921 | control position indicator board | 35921-32060 |
| 35974 | Position indicator light lower shell | 35974-32050 |
