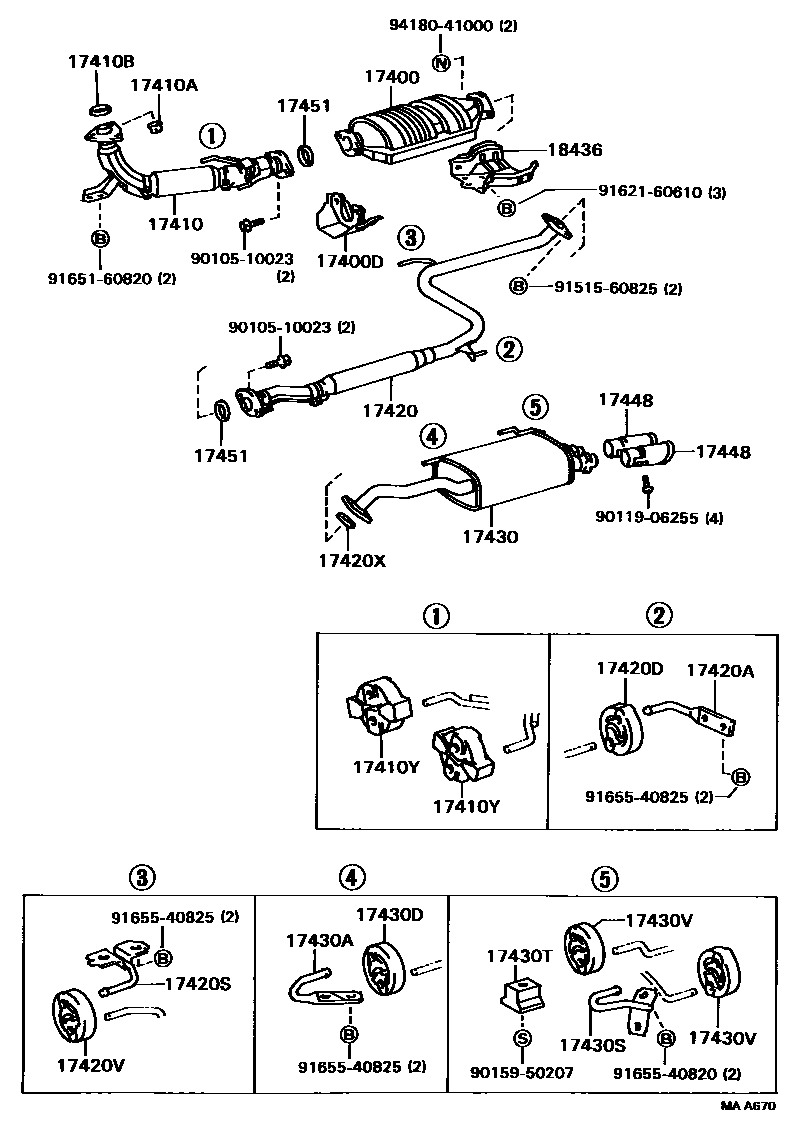

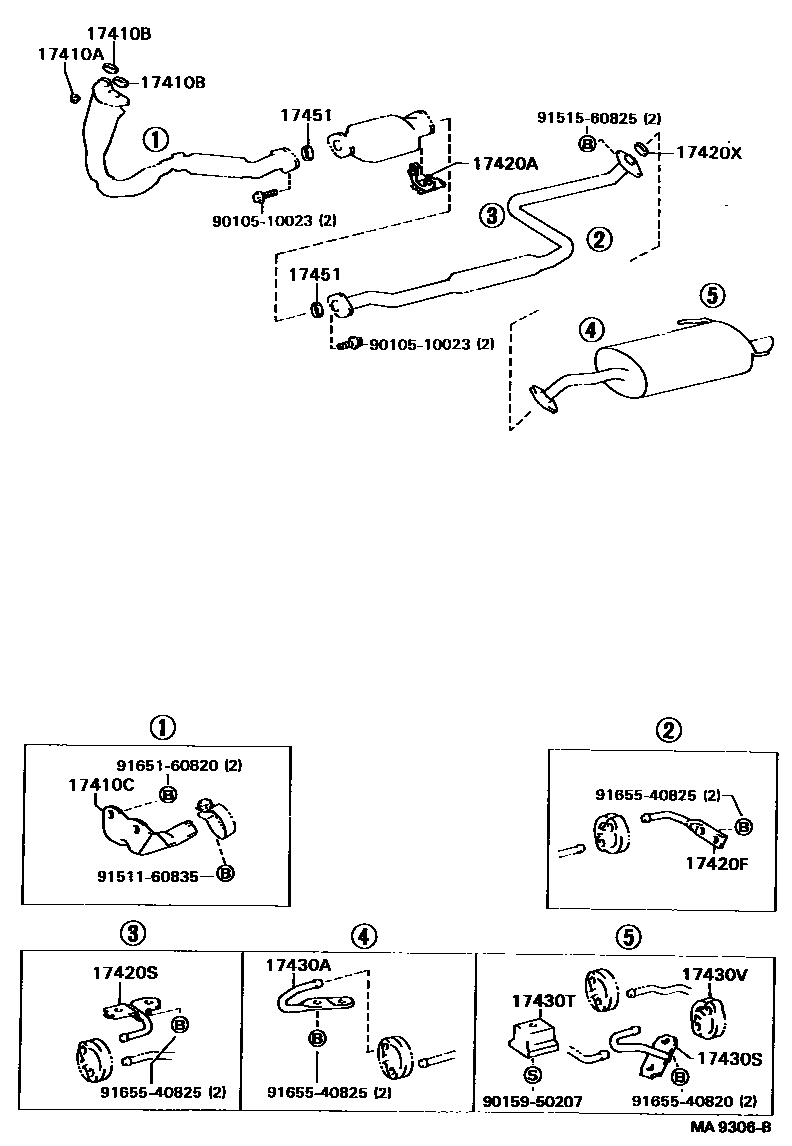

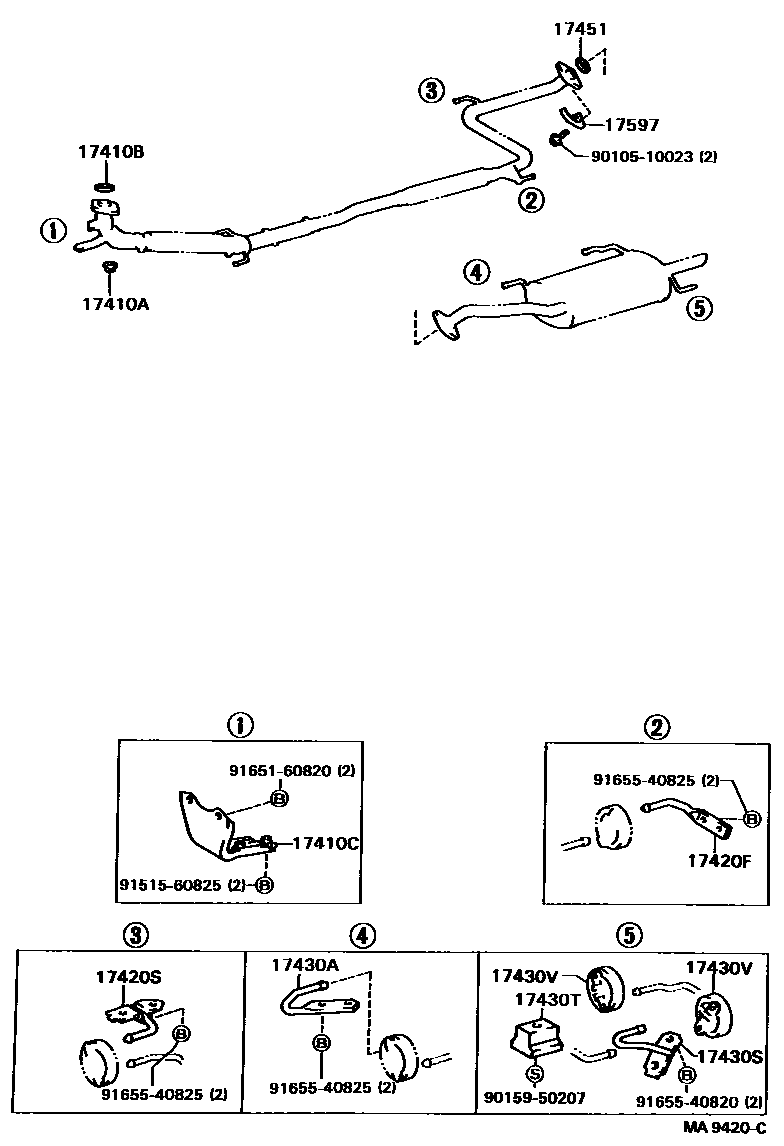

Toyota CAMRY Exhaust Pipe — Figure 1702
Toyota CAMRY EPC diagram 1702, Exhaust Pipe, with 3 images and 24 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17400 | Three-way catalytic converter assembly with catalyst | 18450-62040 |
| 17400D | Three-way catalytic converter bracket | 17503-62020 |
| 17410 | Front exhaust pipe assembly | 17410-62020 |
| 17410A | Exhaust pipe fixing studs and nuts | 90179-10070 |
| 17410B | Exhaust pipe gasket | 90917-06004 · 90917-06005 · 90917-06039 |
| 17410C | Front exhaust pipe bracket (for front) | 17571-63060 · 17571-74050 |
| 17410Y | Front exhaust pipe bolts or rings (for rear) | 17565-62010 |
| 17420 | Central exhaust pipe assembly | 17420-62040 |
| 17420A | Center exhaust pipe front bracket | 17503-16100 · 17572-63050 |
| 17420D | Center exhaust pipe front bolt or ring | 17565-62010 |
| 17420F | Central exhaust pipe bracket | 17572-63050 |
| 17420S | Center exhaust pipe rear bracket | 17507-63030 |
| 17420V | Center exhaust pipe rear bolt or ring | 17565-62010 |
| 17420X | Center exhaust pipe liner | 90917-06012 · 90917-06045 · 90917-06047 |
| 17430 | Exhaust tailpipe assembly | 17430-62040 |
| 17430A | Exhaust tailpipe bracket (for front) | 17563-63080 |
| 17430D | Exhaust tailpipe bolts or rings (for front) | 17565-55020 |
| 17430S | Exhaust tailpipe bracket (for rear) | 17509-63060 |
| 17430T | Exhaust tailpipe cushion (for rear) | 17591-36010 · 17591-36011 |
| 17430V | Exhaust tailpipe bolts or rings (for rear) | 17565-63120 |
| 17448 | Exhaust pipe tail throat | 17448-79025 |
| 17451 | Exhaust pipe gasket | 90917-06004 · 90917-06012 · 90917-06030 · 90917-06039 · 90917-06045 · 90917-06047 |
| 17597 | Exhaust pipe fender | 17597-74020 |
| 18436 | No. 1 integrated three-way catalytic converter protection device | 18436-63010 |
