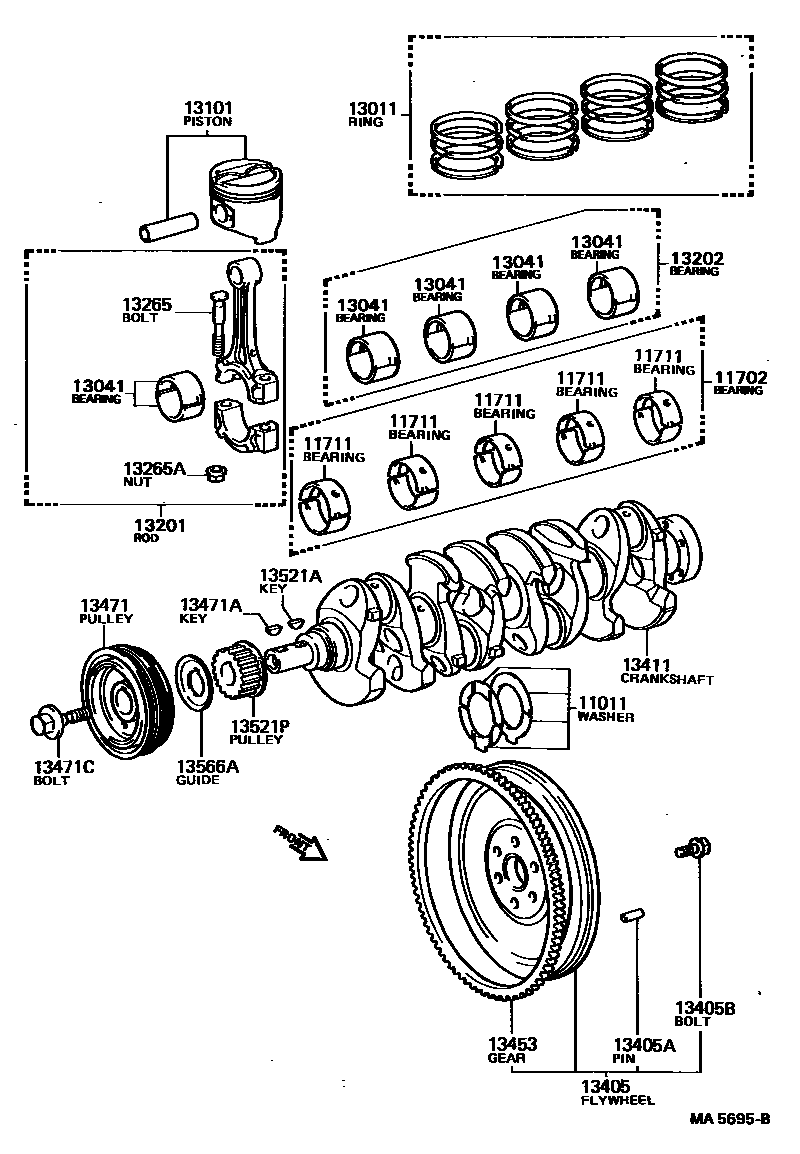

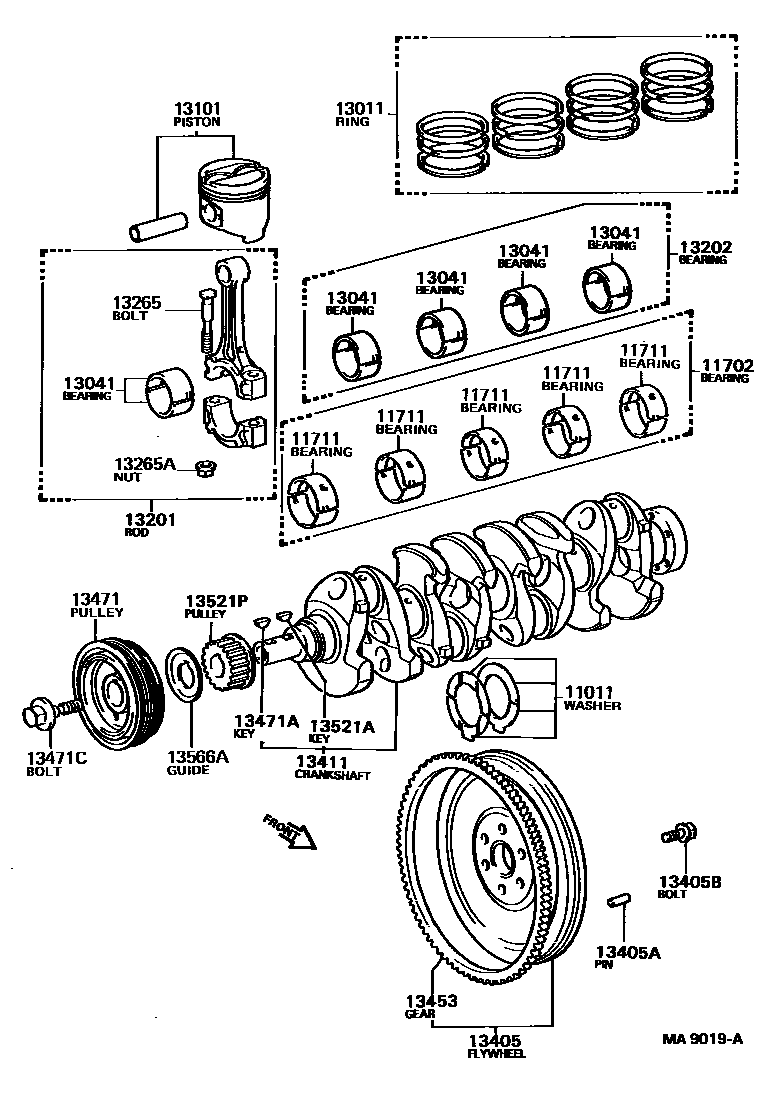

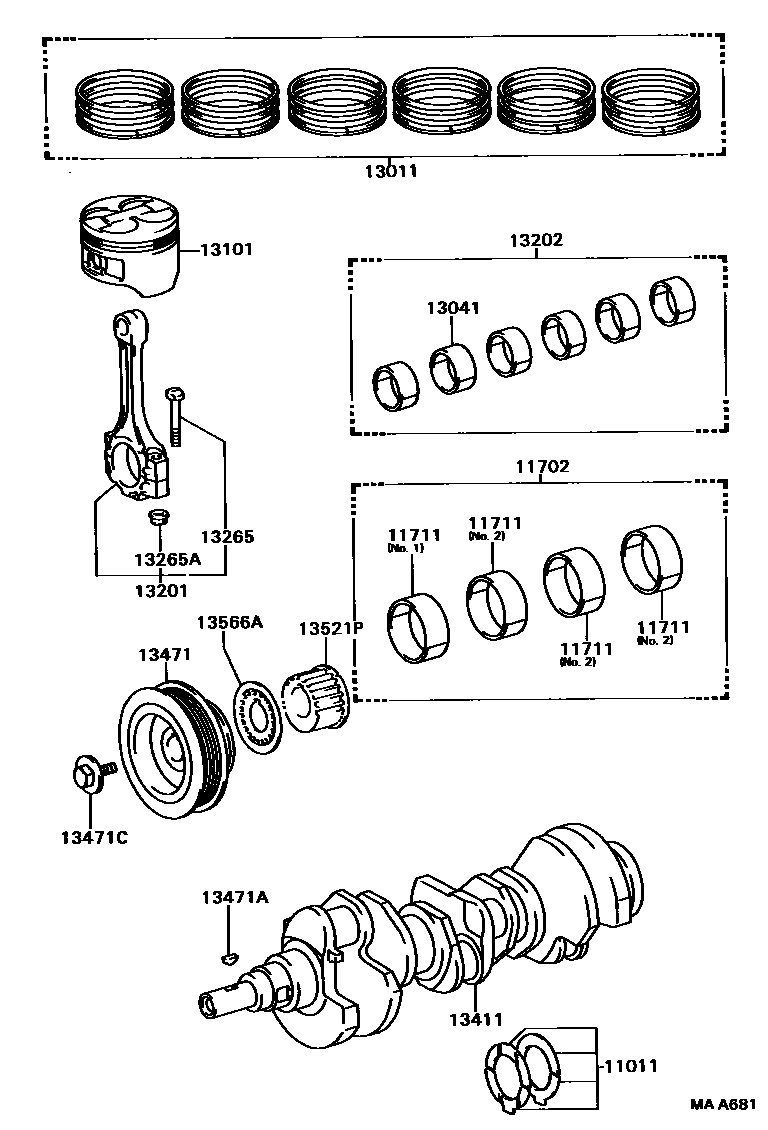

Toyota CAMRY Crankshaft & Piston — Figure 1301
Toyota CAMRY EPC diagram 1301, Crankshaft & Piston, with 3 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11011 | Crankshaft thrust washer assembly | 11011-25010 · 11011-62010 |
| 11702 | crankshaft bearing assembly | 11704-62010 · 11704-63021 |
| 11711 | crankshaft bearings | 11071-63020 · 11701-63021 |
| 13011 | Piston ring assembly | 13011-62040 · 13011-63010 · 13011-63011 · 13011-72040 · 13011-74070 · 13011-74071 · 13013-63010 · 13013-63011 · 13014-63010 · 13014-63011 · 13015-63010 · 13015-63011 |
| 13101 | Piston sub-assembly with pin | 13101-63011 · 13101-74040 · 13103-62020 · 13103-63011 · 13103-74040 · 13104-63011 · 13105-63011 |
| 13201 | Connecting rod sub-assembly | 13201-69055 · 13201-69085 |
| 13202 | Connecting rod bearing assembly | 13204-62010 · 13204-63020 |
| 13265 | Connecting rod bolts | 13265-62010 · 13265-63010 |
| 13265A | Hexagonal nut (for connecting rod bolts) | 90179-08014 · 90179-09001 |
| 13405 | Flywheel sub-assembly | 13405-69056 · 13405-74020 |
| 13405A | Direct sales (for flywheel) | 90250-08054 |
| 13405B | Flywheel fixing bolt | 90105-10071 |
| 13411 | crankshaft | 13411-62901 · 13411-63010 · 13411-74901 |
| 13453 | flywheel ring gear | 13453-20010 · 13453-74010 |
| 13471 | crankshaft pulley | 13408-62010 · 13408-63020 · 13408-74020 |
| 13471A | Crankshaft key (for crankshaft pulley assembly) | 90280-05010 · 95161-10519 · 95161-20519 |
| 13471C | Bolt (for crankshaft pulley assembly) | 90105-14057 · 90105-16031 · 90119-14015 · 90119-14027 |
| 13521A | Key (for crankshaft timing gear) | 95161-10519 · 95161-20519 |
| 13521P | crankshaft timing pulley | 13521-62020 · 13521-63010 · 13521-74020 |
| 13566A | timing belt guide | 13567-62010 · 13567-63010 · 13567-74010 |
