Toyota CAMRY Engine Overhaul Gasket Kit — Figure 1103

Toyota CAMRY EPC diagram 1103, Engine Overhaul Gasket Kit, with 3 images and 2 PNC and OE references.

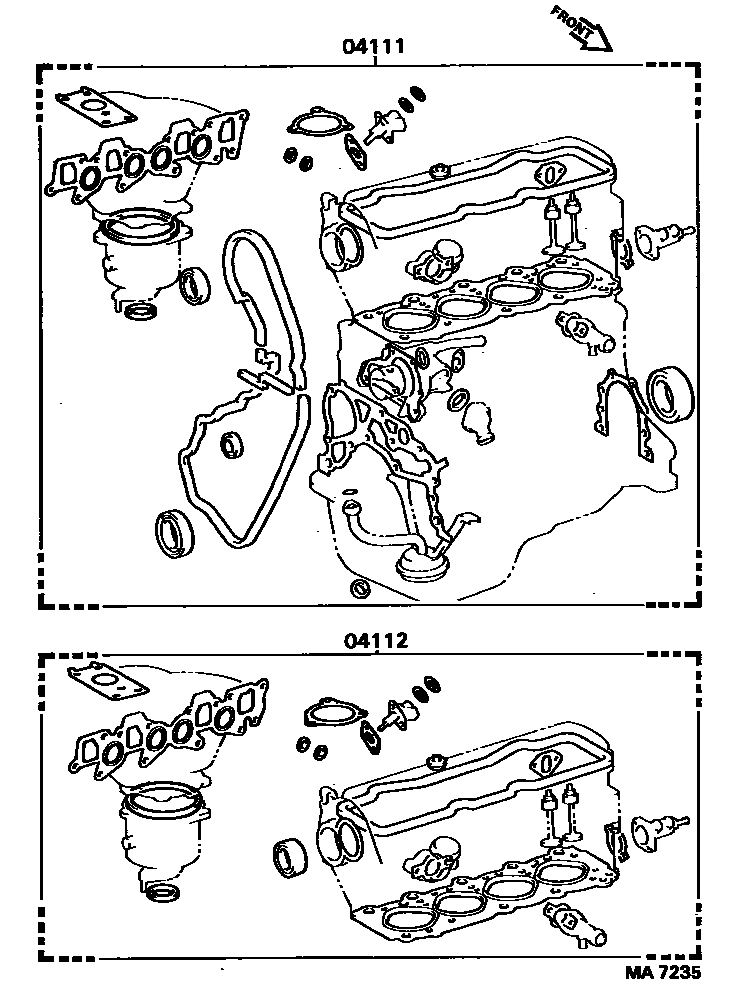

Toyota CAMRY Engine Overhaul Gasket Kit EPC diagram — MA7235 — Engine Overhaul Gasket Kit — MA7235 (198611 – 999999)

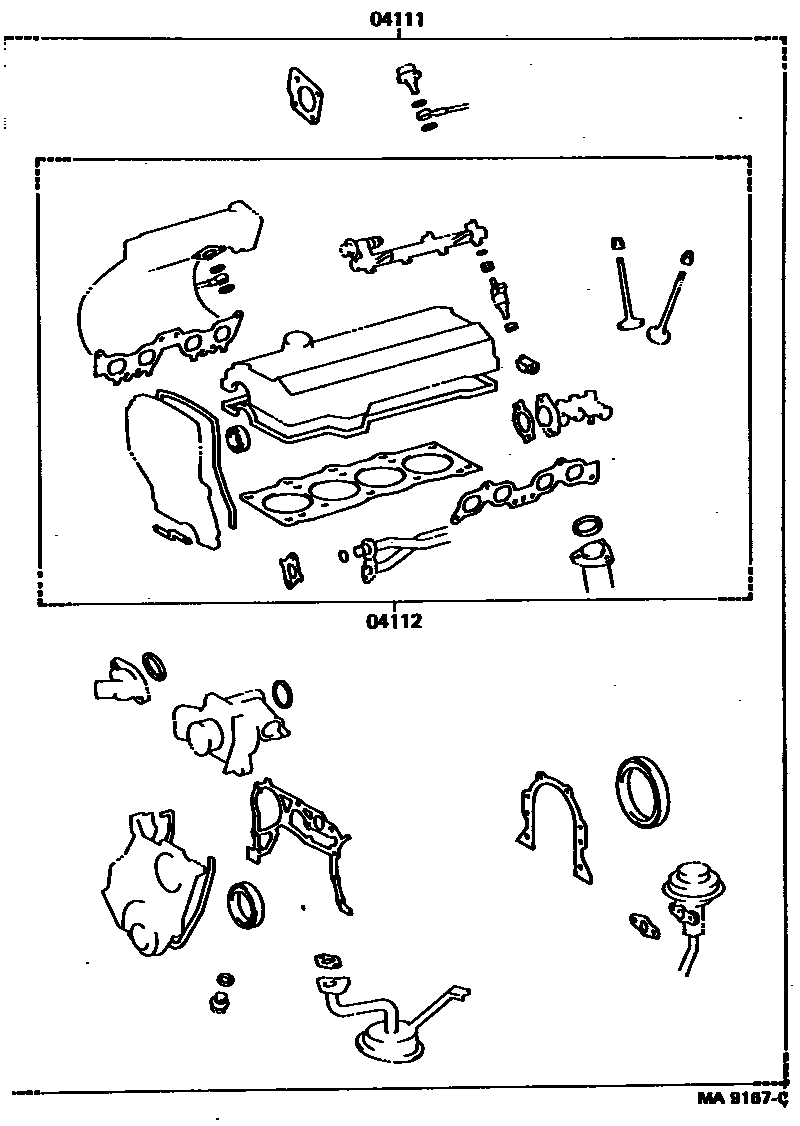

Toyota CAMRY Engine Overhaul Gasket Kit EPC diagram — MA9167C — Engine Overhaul Gasket Kit — MA9167C (198611 – 999999)

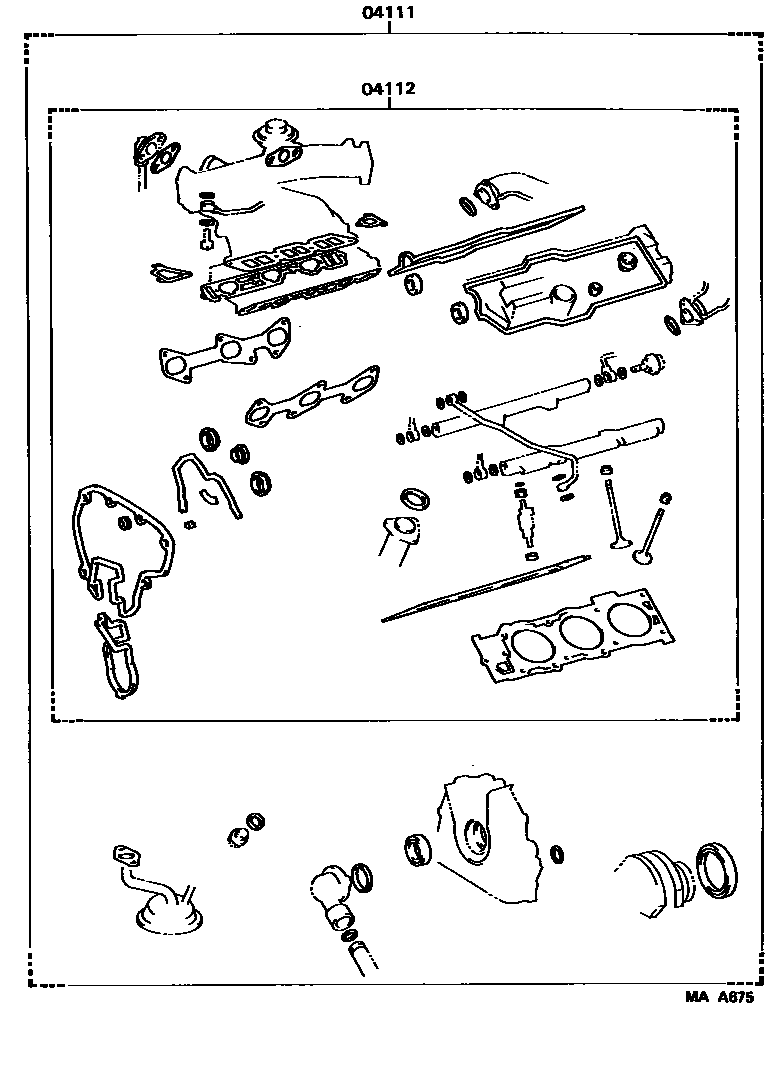

Toyota CAMRY Engine Overhaul Gasket Kit EPC diagram — MAA675 — Engine Overhaul Gasket Kit — MAA675 (198802 – 999999)

PNC and OE references

PNC	Part name	OE numbers
04111	Engine overhaul gasket assembly	04111-62020 · 04111-63032 · 04111-74051
04112	Engine valve grinding pad assembly	04112-62020 · 04112-63031 · 04112-74050
