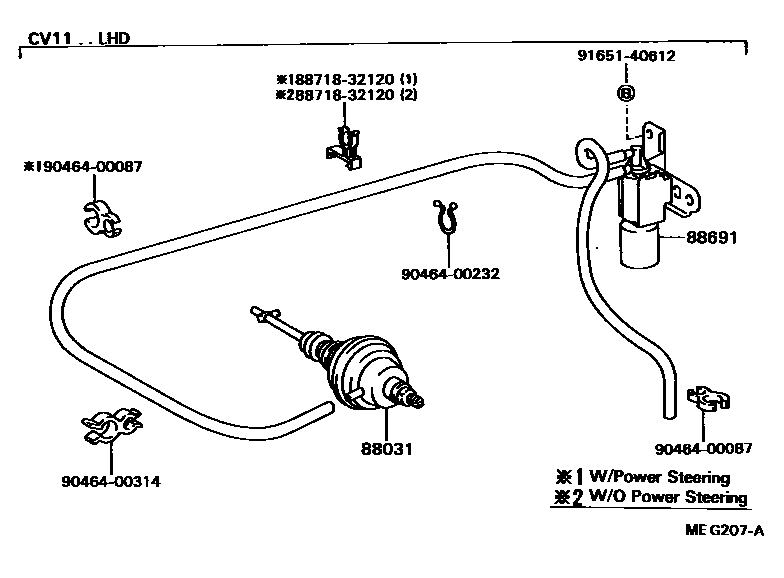

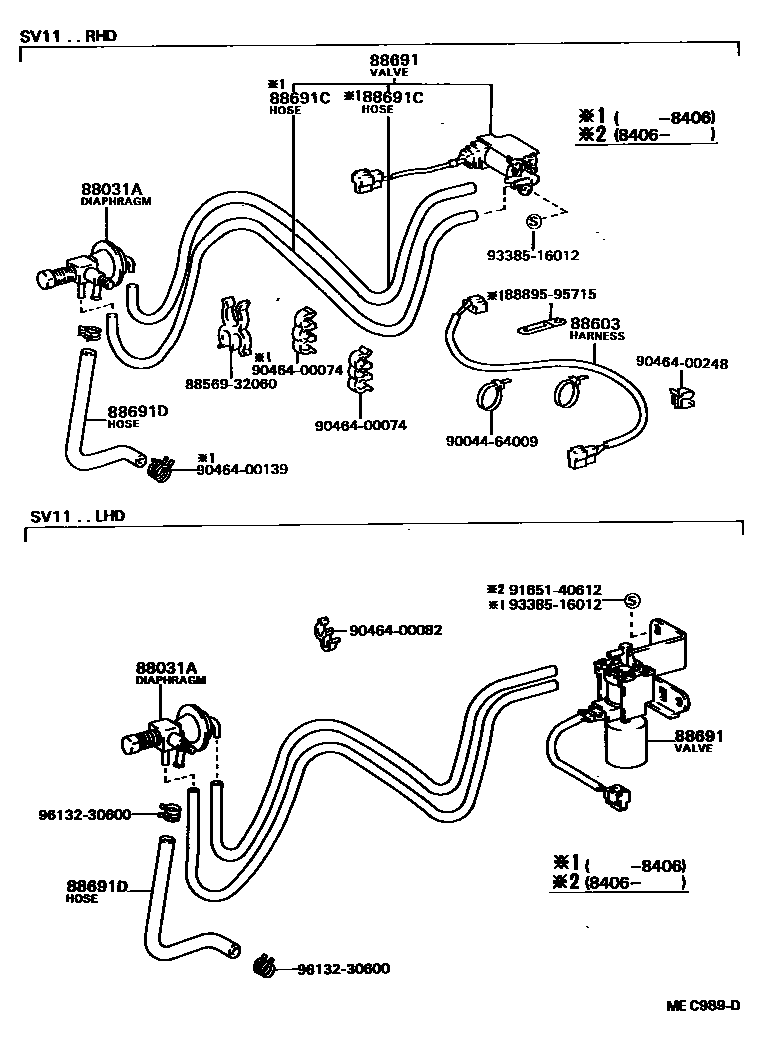

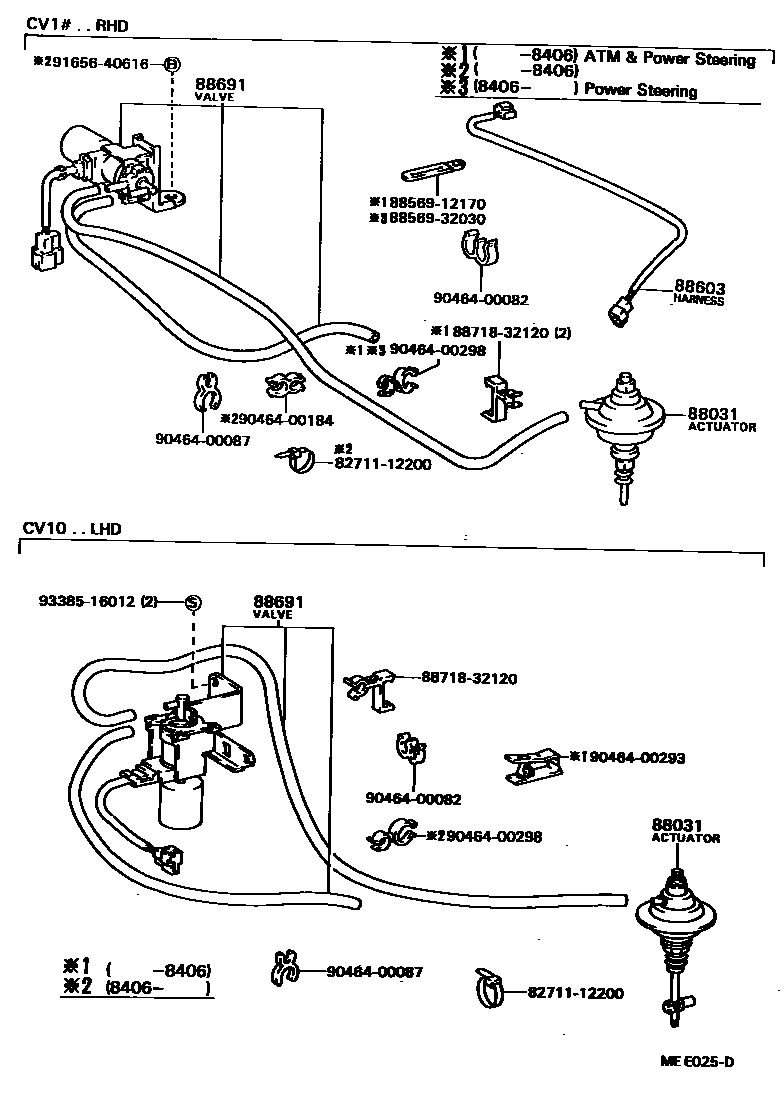

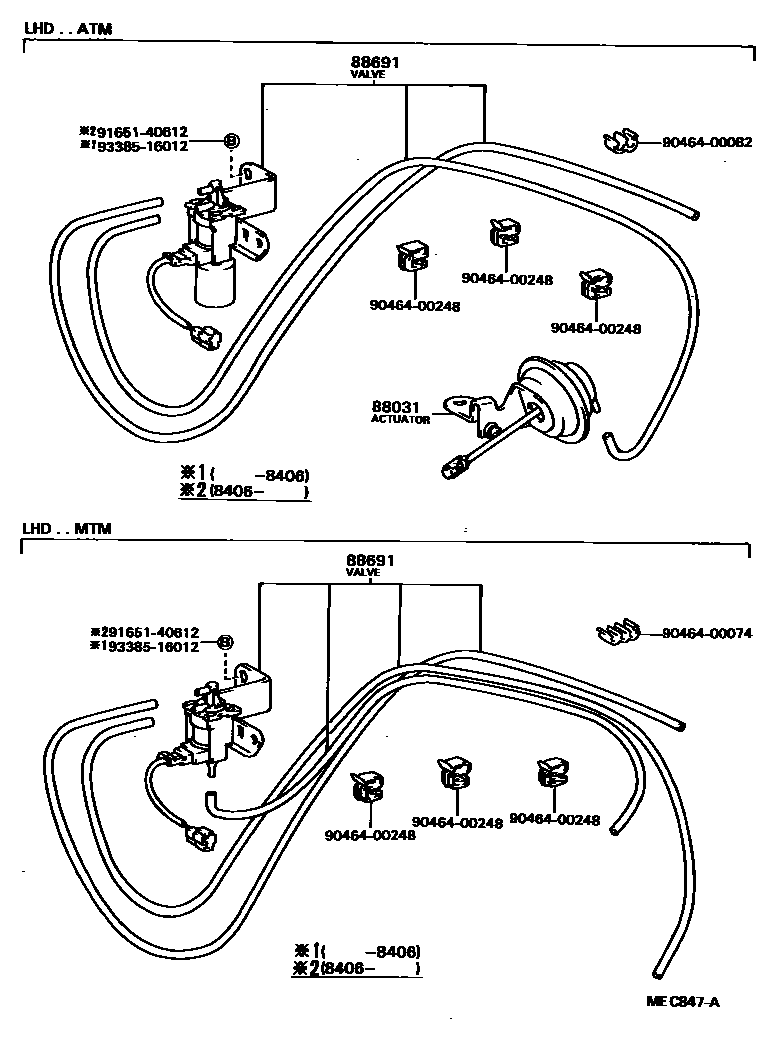

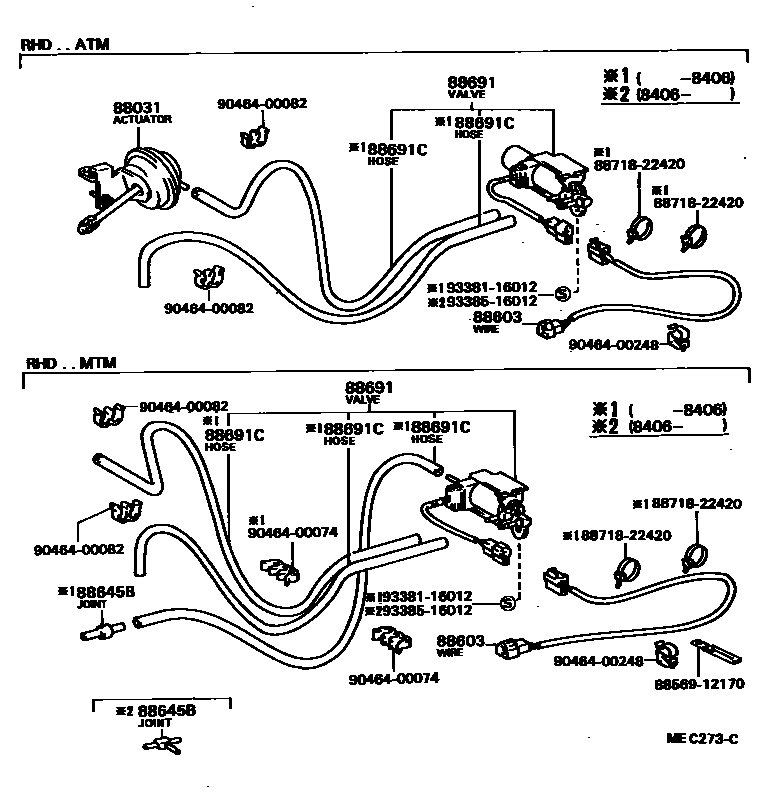

Toyota CAMRY 暖风和空调系统 - 真空管 — Figure 8717
Toyota CAMRY EPC diagram 8717, 暖风和空调系统 - 真空管, with 5 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88031 | Idle speed lift actuator assembly | 88031-12120 · 88031-30070 · 88031-32010 |
| 88031A | Idle speed lift actuator diaphragm sub-assembly | 88606-14020 |
| 88603 | Idle speed lifting device wiring harness | 88605-32020 · 88605-32260 |
| 88645B | Connector No. 1 (for idle speed lifting device) | 90405-05127 · 90413-04001 |
| 88691 | Solenoid valve (for idle speed lifting device) | 88690-32070 · 88690-32100 · 88690-32110 · 88690-32120 · 88690-32140 · 88690-32180 · 88690-32210 · 88690-32230 |
| 88691C | Vacuum hose No. 1 (for idle lift) | 95411-10030 · 95411-10060 · 95411-19960 |
| 88691D | Vacuum hose No. 2 (for idle lift) | 88689-32010 · 88689-32030 |
