Toyota CAMRY 暖风和空调系统 - 冷却器组件 — Figure 8714

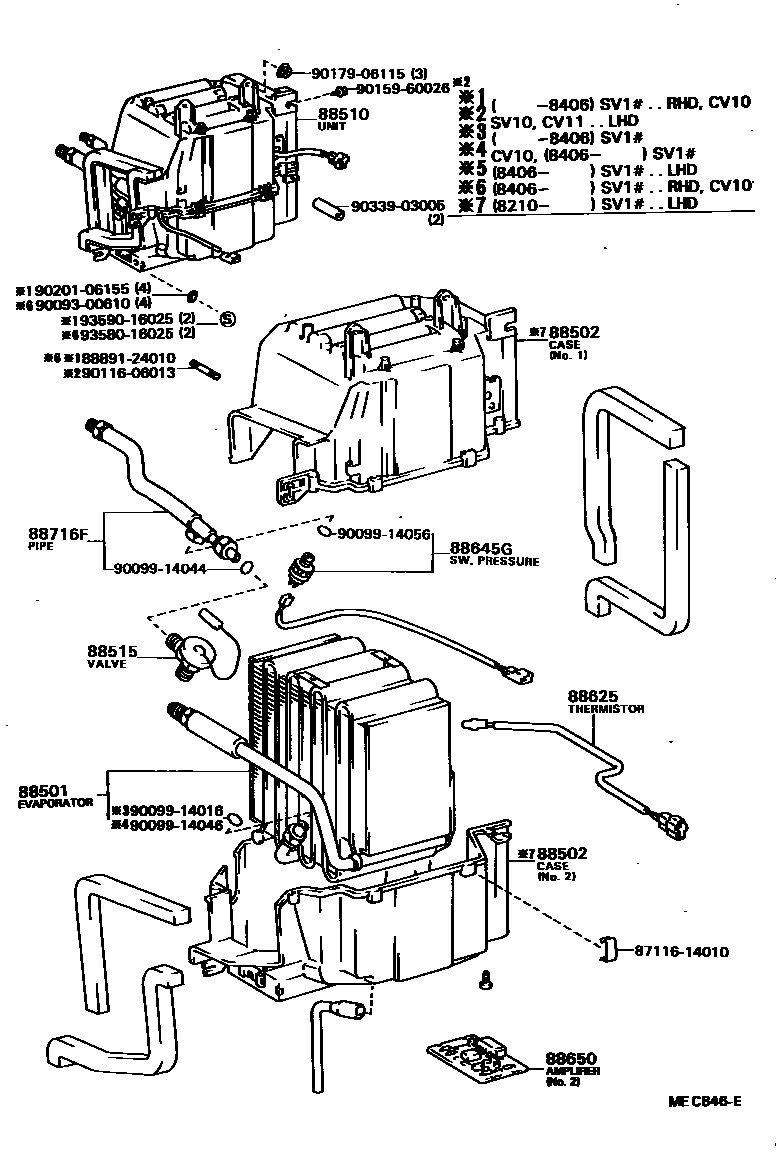

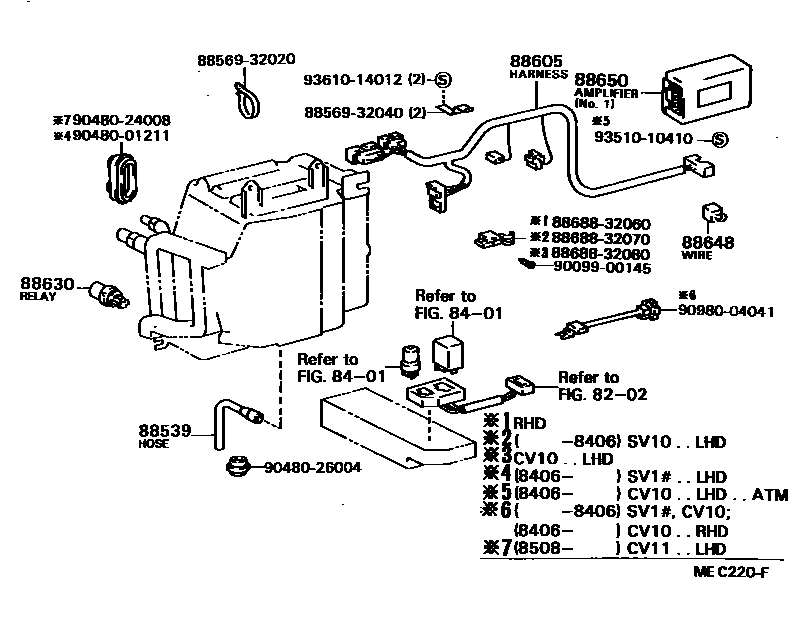

Toyota CAMRY EPC diagram 8714, 暖风和空调系统 - 冷却器组件, with 2 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88501 | Cooler No. 1 evaporator sub-assembly | 88501-32010 · 88501-32020 · 88501-32021 · 88501-32030 · 88501-32031 |
| 88502 | Cooling device shell sub-assembly | 88502-32010 · 88502-32020 |
| 88510 | Cooler device assembly | 88510-32020 · 88510-32050 · 88510-32060 · 88510-32070 · 88510-32080 · 88510-32110 · 88510-32120 · 88510-32140 · 88510-32150 · 88510-32170 · 88510-32180 |
| 88515 | Cooler expansion valve | 88515-20050 |
| 88539 | No. 1 Cooler Unit Drain Hose | 88539-32010 · 88539-32020 |
| 88605 | No. 1 cooler wiring harness sub-assembly | 88605-32070 · 88605-32080 · 88605-32090 · 88605-32120 · 88605-32150 · 88605-32160 · 88605-32190 · 88605-32200 · 88605-32240 |
| 88625 | Cooler No. 1 Thermistor | 88625-90A00 |
| 88630 | Cooler relay assembly | 90987-03001 |
| 88645G | pressure switch | 88645-22020 · 88645-30250 |
| 88648 | No. 1 cooler wiring harness | 88648-32060 |
| 88650 | Cooler stabilized amplifier assembly | 88650-32010 · 88650-32020 · 88650-32030 · 88650-32050 · 88650-32060 · 88650-32070 · 88650-32090 |
| 88716F | Cooler refrigerant liquid pipe F | 88716-32010 · 88716-32140 |
