Toyota CAMRY 挡风玻璃清洗器 — Figure 8503

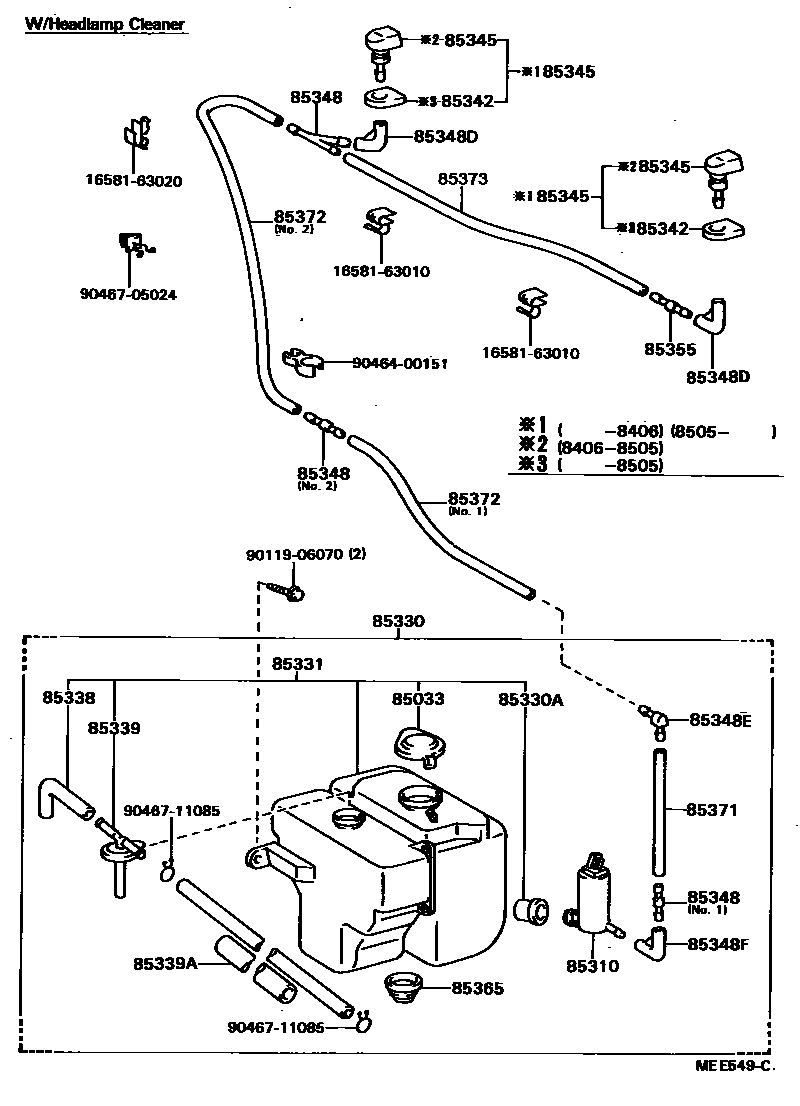

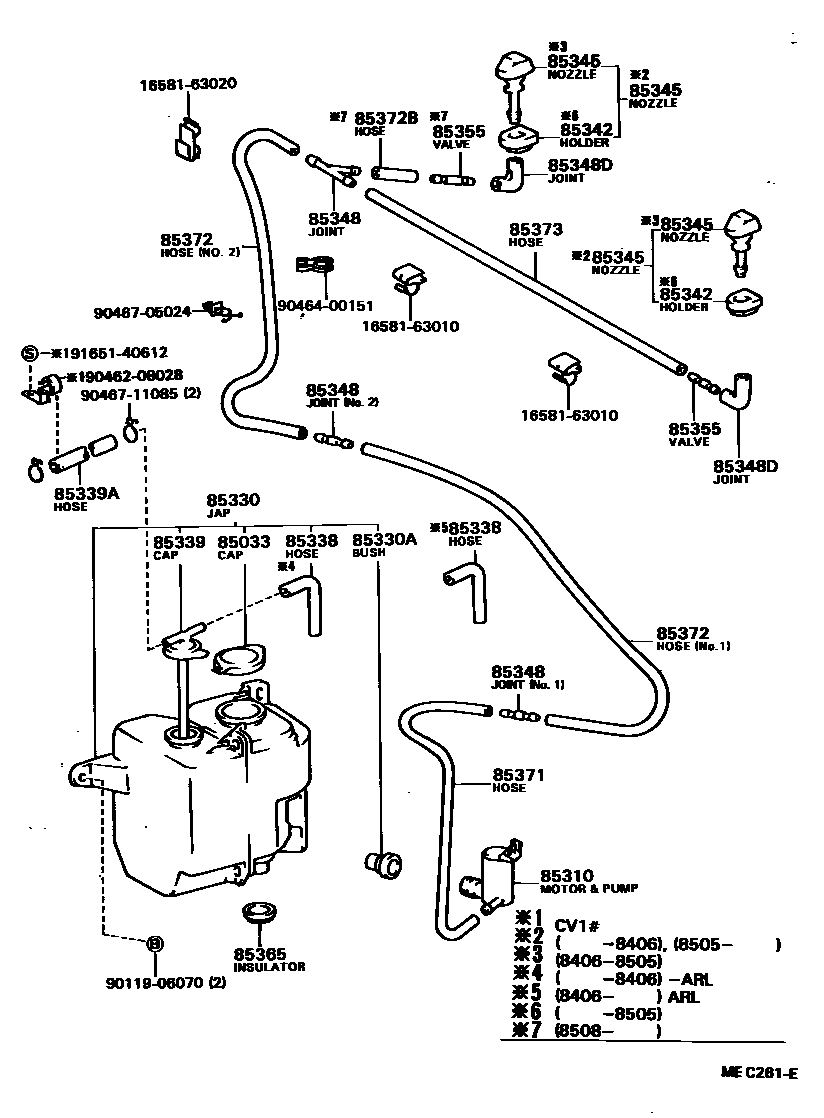

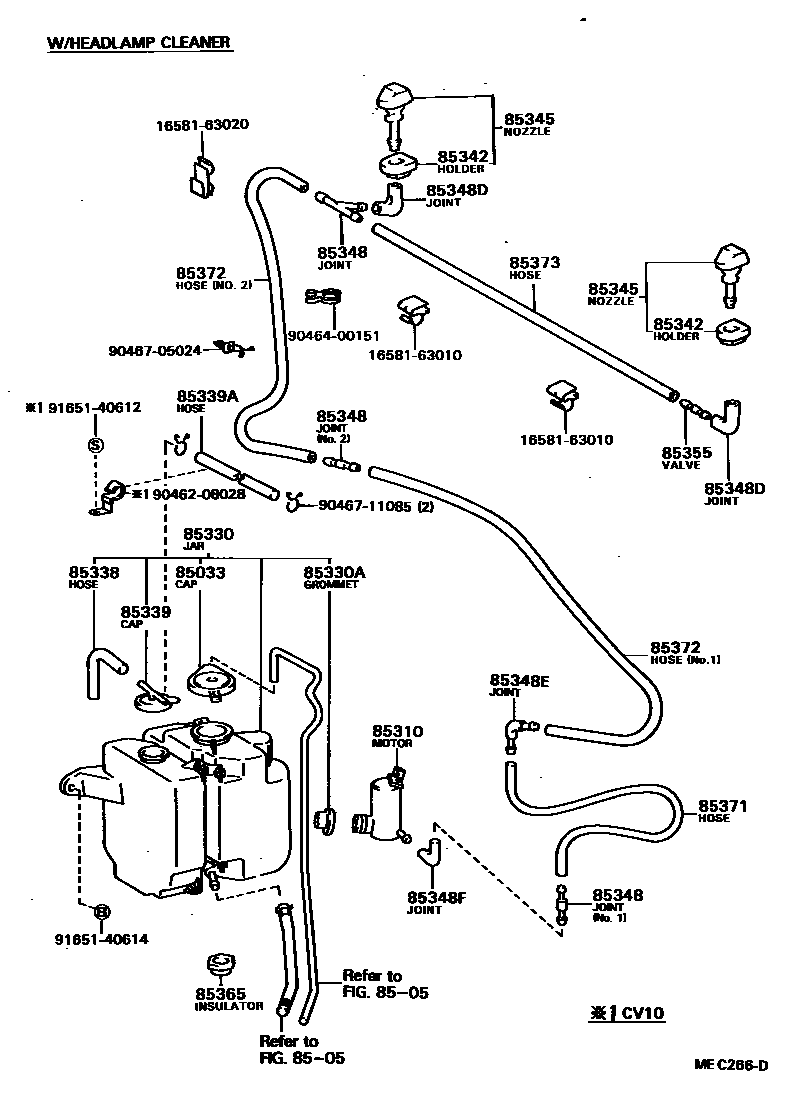

Toyota CAMRY EPC diagram 8503, 挡风玻璃清洗器, with 3 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85033 | Windshield washer cover assembly | 85332-12320 · 85332-16010 · 85332-22040 · 85332-32090 |
| 85310 | Windshield washer motor and pump assembly | 85310-22080 |
| 85330 | Windshield washer fluid tank assembly | 85330-32010 · 85330-32030 · 85330-32040 · 85330-32041 · 85331-32010 · 85331-32100 · 85331-32110 |
| 85330A | Windshield washer fluid tank bushing | 90099-32089 |
| 85331 | Windshield washer fluid tank sub-assembly | 85331-32041 |
| 85338 | Breather hose | 85338-12010 · 85338-14010 · 85338-32010 |
| 85339 | Liquid storage tank cover sub-assembly | 85339-12010 · 85339-32010 · 85339-32020 |
| 85339A | Hoses (for radiator reservoir) | 90099-33376 · 90099-33377 |
| 85342 | Washer nozzle retainer | 85342-14010 |
| 85345 | windshield washer nozzle | 85035-19025 · 85035-32030 · 85035-32031 · 85035-32040 · 85035-32041 |
| 85348 | Windshield washer hose connector No. 1 | 85348-12250 · 85349-89122 · 85355-14010 · 85355-87201 |
| 85348D | No. 1 windshield washer elbow joint | 85355-20070 |
| 85348E | No. 2 windshield washer elbow joint | 85355-20070 · 85355-32010 |
| 85348F | No. 3 windshield washer elbow joint | 85355-20070 · 85355-32010 |
| 85355 | Windshield washer hose valve | 85031-12250 · 85031-14080 |
| 85365 | Windshield washer fluid tank vibration isolation pad | 85312-32010 |
| 85371 | Windshield washer hose (from motor to connector) | 90446-06013 |
| 85372 | Windshield washer hose No. 1 (from connector to connector) | 90099-33299 · 90446-07001 · 90446-07005 |
| 85372B | Windshield washer hose No. 2 (from connector to connector) | 90446-07001 |
| 85373 | Windshield washer hose (from connector to nozzle) | 90446-06013 |
