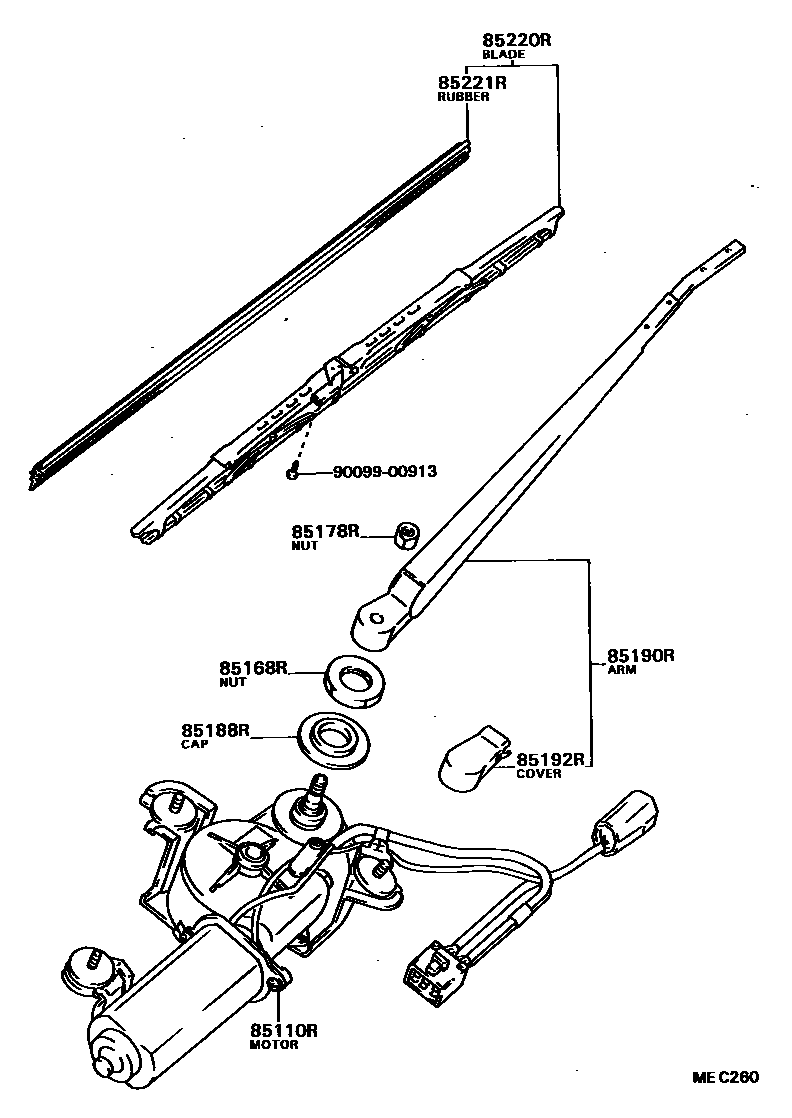

Toyota CAMRY 后刮水器 — Figure 8502
Toyota CAMRY EPC diagram 8502, 后刮水器, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85110R | Rear wiper motor assembly | 85110-32030 · 85110-32130 · 85110-32131 |
| 85168R | No. 1 rear wiper link pivot nut | 90099-05157 |
| 85178R | Nut (for securing rear wiper arm) | 90179-06115 |
| 85188R | No. 1 rear wiper pivot cover | 85179-16150 |
| 85190R | Rear wiper arm assembly | 85190-32060 · 85190-32190 |
| 85192R | Rear wiper arm cover | 85192-32010 |
| 85220R | Rear wiper blade assembly | 85220-32120 |
| 85221R | Rear wiper blade | 85221-14210 |
