Toyota CAMRY 开关和继电器和ECU — Figure 8401

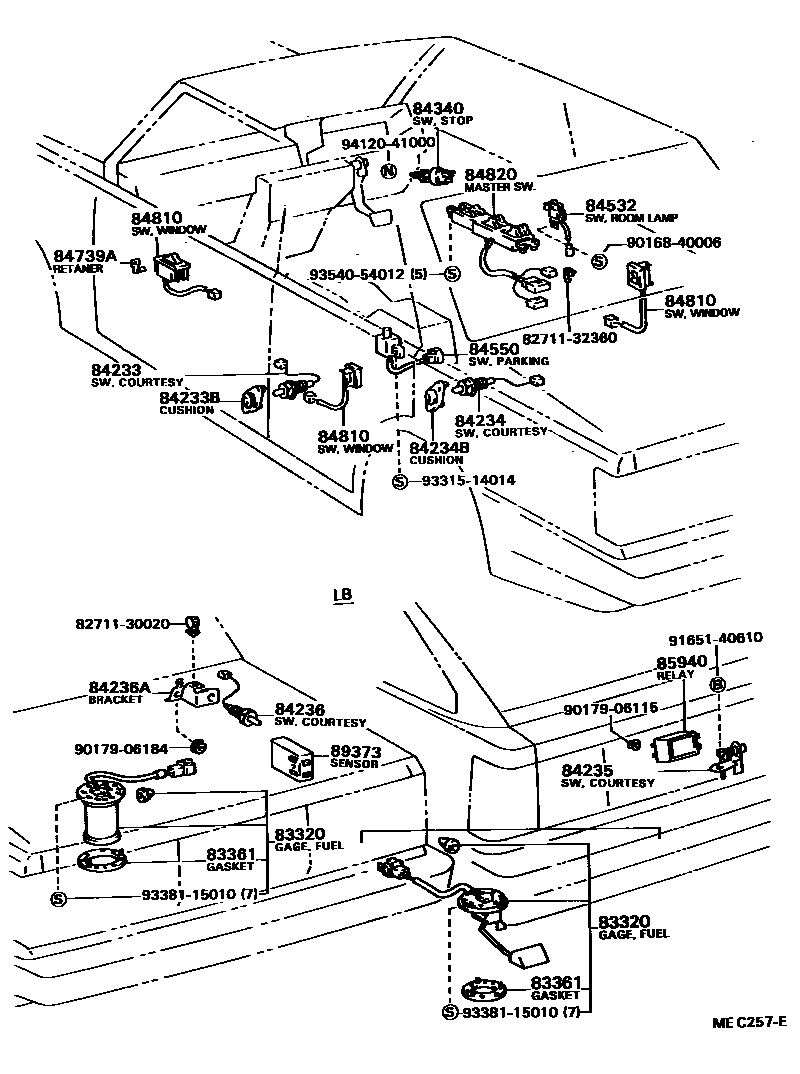

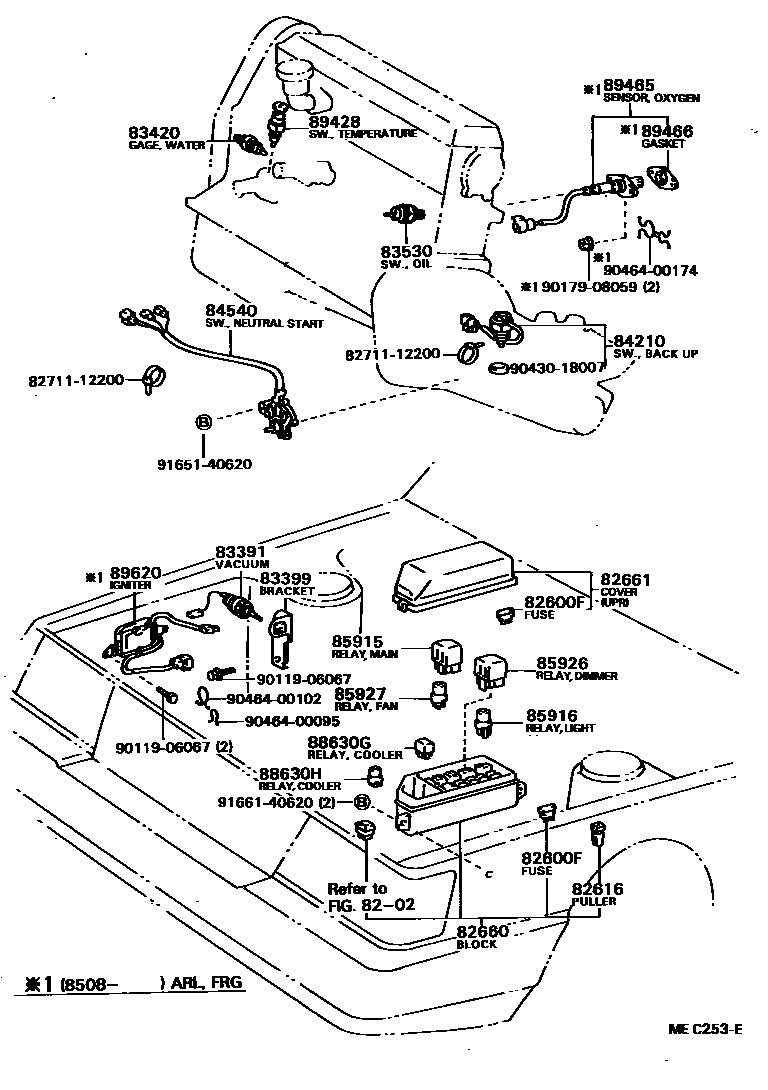

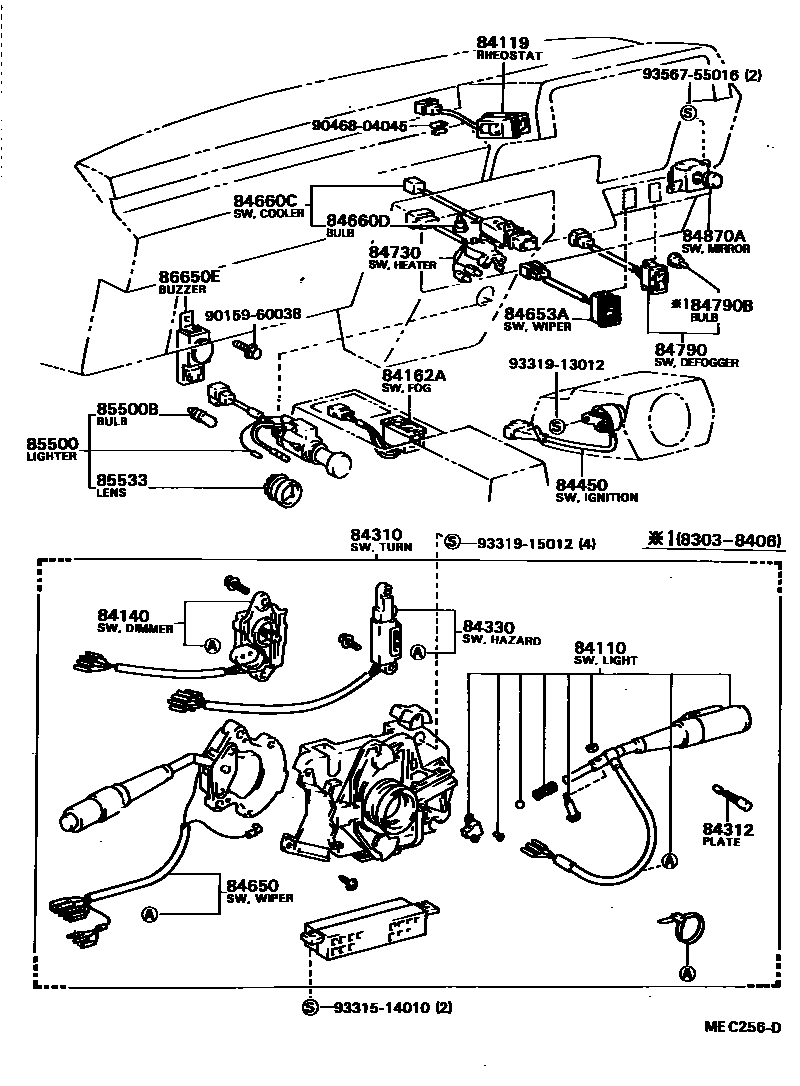

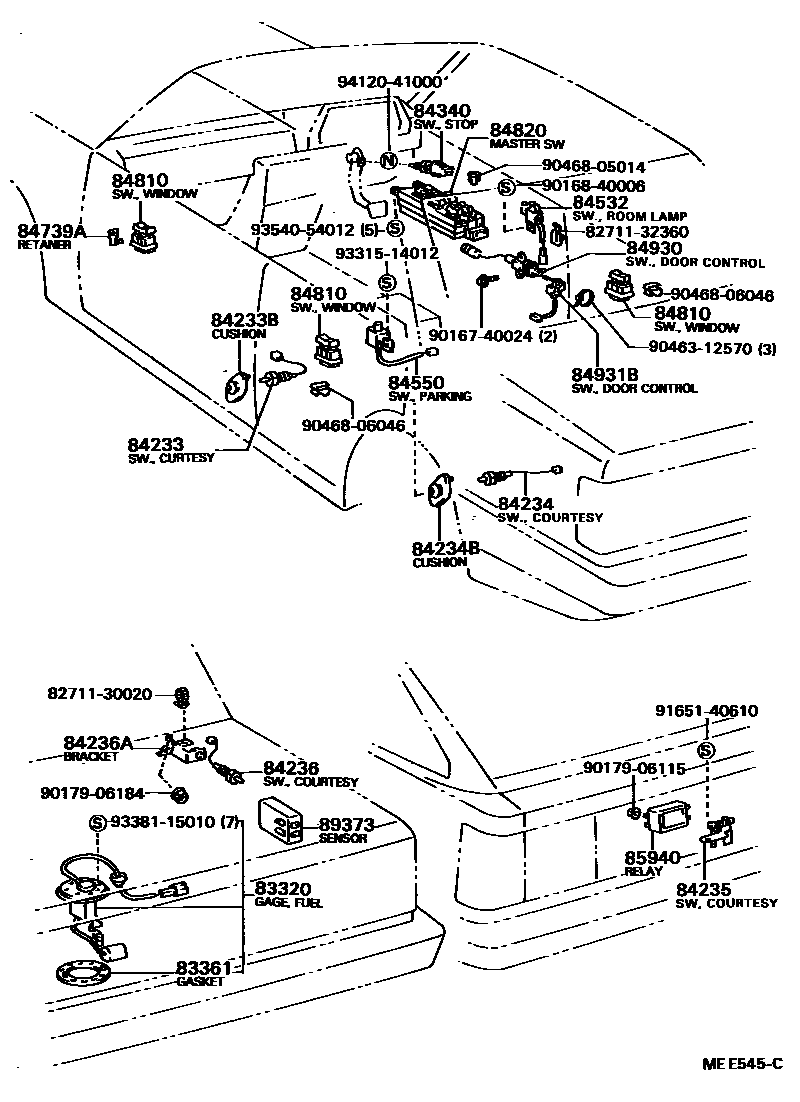

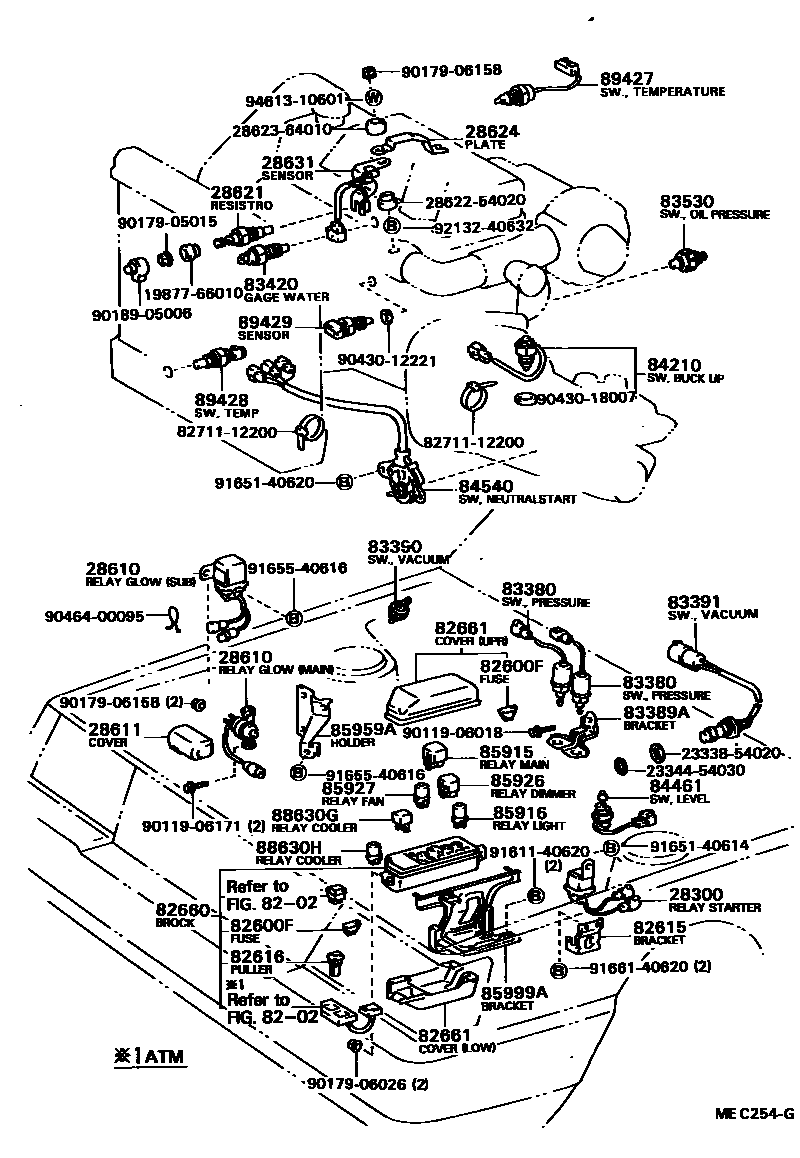

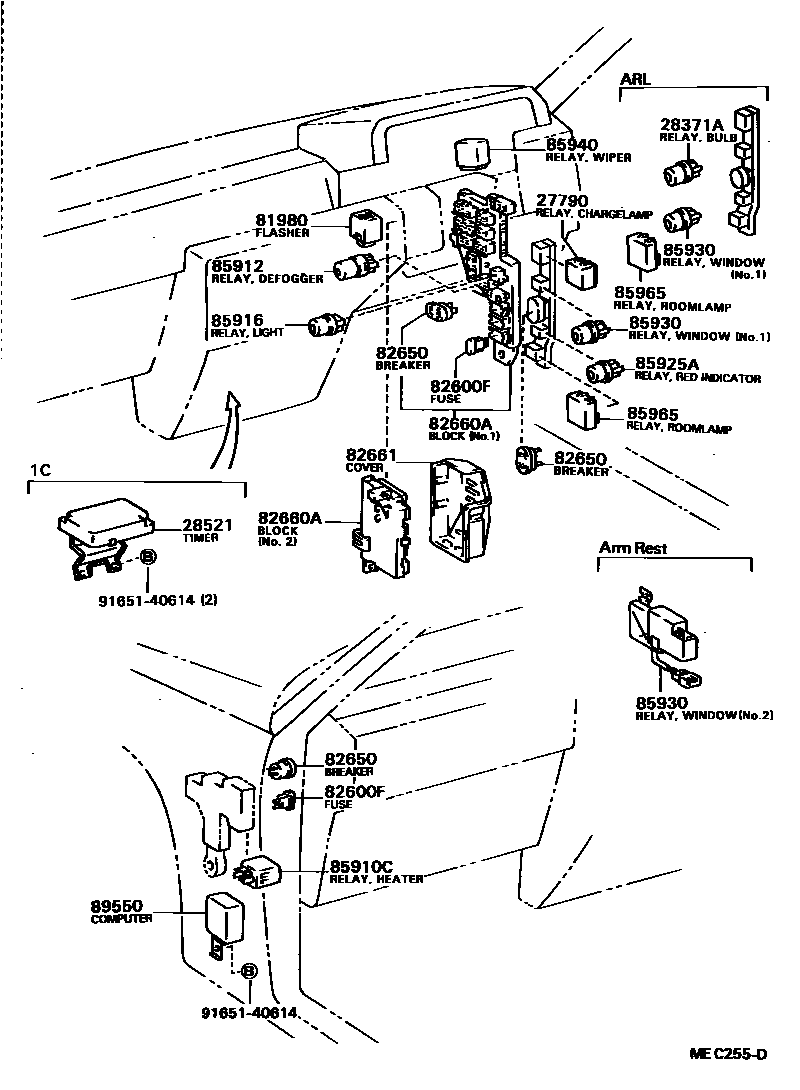

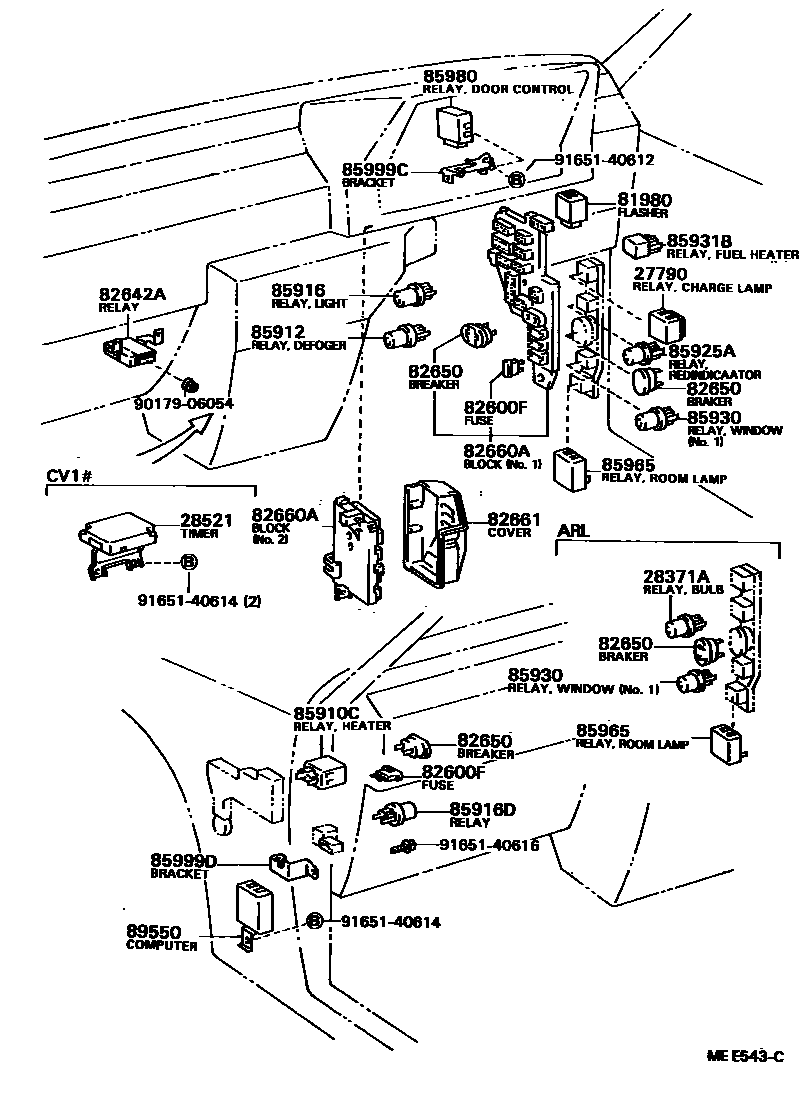

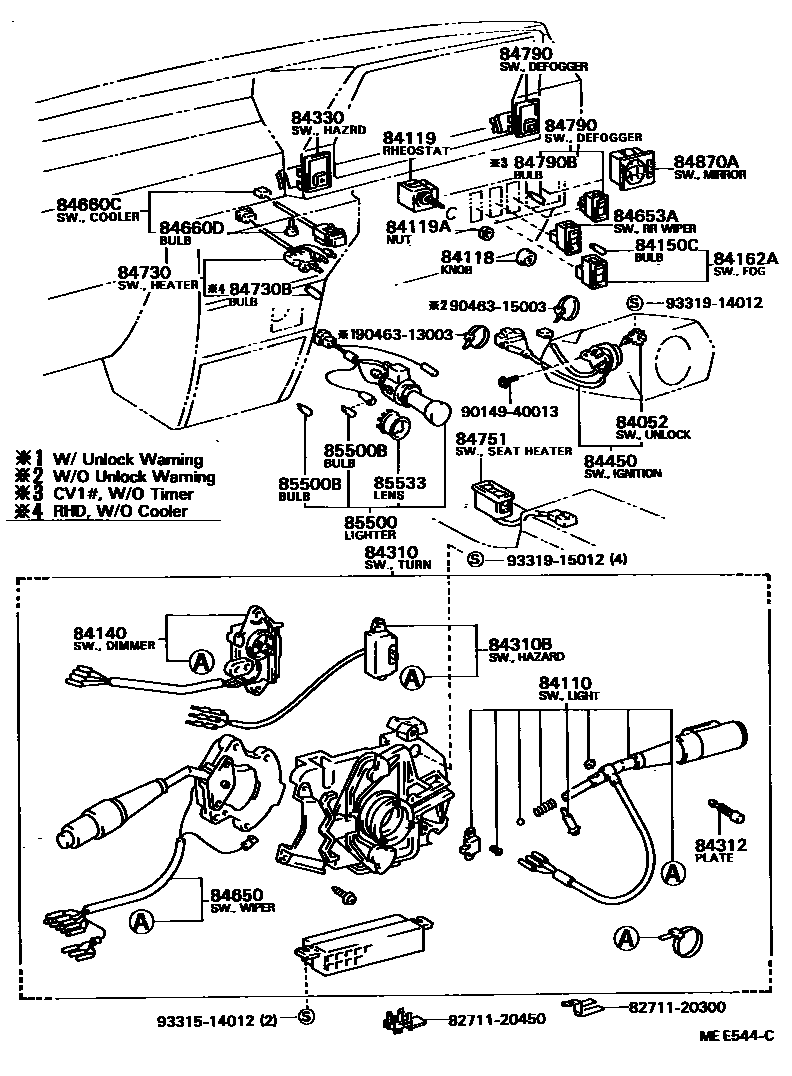

Toyota CAMRY EPC diagram 8401, 开关和继电器和ECU, with 8 images and 99 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 27790 | Charging indicator light relay assembly | 27790-13010 · 27790-35020 |
| 28300 | Starter relay assembly | 28300-54070 |
| 28371A | Bulb check relay | 90987-02004 |
| 28521 | Preheat timer | 28521-64150 · 28521-64220 · 28521-64221 · 28521-64222 · 28521-64230 · 28521-64232 · 28521-64233 |
| 28610 | Intake air heater or glow plug relay assembly | 28610-64010 · 28610-64020 |
| 28611 | Glow plug relay cover | 28611-64010 |
| 28621 | glow plug resistor | 28621-64011 · 28621-64020 |
| 28624 | Current sensor chip | 28624-64020 |
| 28631 | glow plug current sensor | 28631-64030 |
| 81980 | Turn signal flasher relay assembly | 81980-16010 · 81980-22070 |
| 82600F | Spare fuse | 90982-09002 · 90982-09003 · 90982-09004 · 90982-09005 |
| 82615 | fuse holder | 82615-32010 |
| 82616 | fuse puller | 82616-12010 |
| 82642A | driving light relay | 82642-32010 |
| 82650 | No. 1 circuit breaker assembly | 82650-20011 · 82650-32020 |
| 82660 | Engine room relay box assembly | 82660-32030 · 82660-32040 · 82660-32050 · 82660-32180 · 82660-32210 · 82660-32220 |
| 82660A | Front wall side relay box assembly | 82660-32010 · 82660-32060 · 82660-32061 · 82660-32070 · 82660-32071 · 82660-32110 · 82660-32240 · 82660-32251 |
| 82661 | No. 1 relay box cover | 82661-32010 · 82661-32020 · 82661-32030 · 82661-32040 · 82661-32050 · 82661-32070 · 82661-32090 · 82661-32110 |
| 83320 | Fuel gauge sensor assembly | 83320-29885 · 83320-39325 · 83320-39326 · 83320-39327 · 83320-39328 · 83320-39335 · 83320-39336 · 83320-39535 · 83320-39536 · 83320-39537 · 83320-39625 |
| 83361 | fuel gauge sensor gasket | 83361-32010 |
| 83380 | Pressure switch assembly | 83381-30010 · 83381-30021 · 83381-32020 |
| 83389A | Pressure switch bracket | 83389-32010 |
| 83390 | Vacuum warning switch assembly | 83390-30020 |
| 83391 | Vacuum switch | 83391-14070 · 83391-32020 |
| 83399 | Vacuum switch bracket | 83399-32030 |
| 83420 | Water temperature sensor assembly | 83420-20020 |
| 83530 | Oil pressure switch assembly (for engine) | 83530-10020 · 83530-12040 · 83530-14020 · 83530-14030 · 83530-30043 |
| 84052 | Unlock warning switch assembly | 84052-10020 |
| 84110 | No. 1 light control switch assembly | 84112-29375 · 84112-29385 · 84112-39155 · 84112-39165 · 84112-39205 · 84112-39215 |
| 84118 | Light control rheostat button | 84118-20011 |
| 84119 | Light control rheostat | 84119-32040 · 84119-32050 |
| 84119A | Rheostat control retaining bolt or nut | 90170-09167 |
| 84140 | Headlight dimmer switch assembly | 84140-29215 · 84140-29225 · 84140-39075 · 84140-39085 · 84140-39095 · 84140-39105 |
| 84150C | fog light switch bulb | 84999-10130 |
| 84162A | Rear fog light switch | 84160-32020 · 84160-32030 |
| 84210 | Reversing light switch assembly | 84210-60010 · 84210-60021 |
| 84233 | Door control light switch assembly (for front door) | 84230-12120 · 84231-20080 |
| 84233B | Door light switch cushion (for front doors) | 84234-24010 |
| 84234 | Door control light switch assembly (for rear door) | 84230-12120 · 84231-20080 |
| 84234B | Door light switch cushion (for rear doors) | 84234-24010 |
| 84235 | Door control light switch assembly (for back door) | 84231-32010 |
| 84236 | Door control light switch assembly (for trunk) | 84230-32010 |
| 84236A | Door control light switch bracket (for luggage compartment) | 84233-32010 |
| 84310 | Turn signal switch assembly | 84310-32030 · 84310-32050 · 84310-32070 · 84310-32090 · 84310-32150 · 84310-32160 · 84310-32190 · 84310-32200 |
| 84310B | turn signal switch | 84332-39225 · 84332-39235 |
| 84312 | Speaker contact piece | 84312-32010 · 84312-32020 |
| 84330 | Hazard warning signal switch assembly | 84332-39135 · 84332-39145 · 84332-39175 · 84332-39185 |
| 84340 | brake light switch assembly | 84340-30030 · 84340-32010 |
| 84450 | Ignition or starter switch assembly | 84450-27040 · 84450-32010 |
| 84461 | Liquid level warning switch | 84461-12050 · 84461-26020 |
| 84532 | Interior light fixture switch | 84532-32010 |
| 84540 | Neutral start switch assembly | 84540-32010 · 84540-32020 · 84540-32050 |
| 84550 | Parking brake switch assembly | 84550-16010 · 84550-24010 |
| 84650 | Windshield wiper switch assembly | 84652-39215 · 84652-39235 · 84652-39255 · 84652-39275 · 84652-39375 · 84652-39385 · 84652-39415 · 84652-39425 |
| 84653A | Rear wiper switch | 84653-14020 · 84653-32010 · 84653-32020 |
| 84660C | Cooler switch | 84660-32010 · 84660-32020 |
| 84660D | Light bulb (for cooler switch) | 88607-32010 |
| 84730 | Heater blower switch assembly | 84732-32010 · 84732-32030 · 84732-32040 |
| 84730B | heater blower switch light bulb | 90981-11014 |
| 84739A | switch fixture | 84739-30020 |
| 84751 | Seat heater switch | 84751-14010 |
| 84790 | Rear window defogger switch assembly | 84790-20130 · 84790-32010 · 84790-32020 · 84790-32040 · 84790-32070 |
| 84790B | Bulb (for rear window defogger switch) | 84999-10110 · 84999-10130 |
| 84810 | Electric window lift switch assembly | 84810-32020 · 84810-32040 · 84810-32050 |
| 84820 | Electric window lift main switch assembly | 84820-32040 · 84820-32041 · 84820-32042 · 84820-32050 · 84820-32051 · 84820-32052 · 84820-32070 · 84820-32080 |
| 84870A | Exterior rearview mirror switch assembly | 84870-17010 · 84870-32010 |
| 84930 | Door control switch assembly | 84931-32010 |
| 84931B | door control switch | 84931-32020 |
| 85500 | Cigarette lighter assembly | 85500-32010 · 85500-32030 |
| 85500B | Cigarette lighter bulb | 90981-11014 |
| 85533 | Cigarette lighter indicator lamp shade | 85533-14020 |
| 85910C | Relay assembly (for heater blower motor) | 85913-30020 |
| 85912 | defogger relay | 90987-02004 |
| 85915 | main relay | 85913-30020 |
| 85916 | Light control relay | 90987-01003 |
| 85916D | fog light relay | 90987-02004 |
| 85925A | red indicator light relay | 90987-03001 |
| 85926 | Headlight dimmer relay | 85926-30020 |
| 85927 | cooling fan relay | 90987-03001 |
| 85930 | Electric window relay assembly | 85930-32010 · 85930-32020 · 90987-02004 |
| 85931B | Fuel heater relay | 28380-44030 |
| 85940 | Windshield wiper relay assembly | 85940-32030 · 85940-32040 · 85940-32050 |
| 85959A | Relay mounting parts | 85959-32030 |
| 85965 | Car interior light control relay | 85965-22021 |
| 85980 | Door control relay assembly | 85980-32020 · 85980-32041 |
| 85999A | No. 2 relay bracket | 85999-32050 · 85999-32060 |
| 85999C | No. 3 relay bracket | 85999-32070 |
| 85999D | No. 4 relay bracket | 85999-32090 |
| 86650E | Buzzer assembly | 86650-32010 |
| 88630G | Cooler relay assembly | 88630-32010 |
| 88630H | Cooler relay assembly | 90987-02004 |
| 89373 | Malfunction indicator light sensor | 89373-32020 · 89373-32050 · 89373-32070 · 89373-32100 · 89373-32110 |
| 89427 | Temperature detection switch | 89427-32020 · 89427-32021 |
| 89428 | No. 2 temperature detection switch | 89428-15011 · 89428-15030 · 89428-32010 |
| 89429 | oil temperature sensor | 89422-30020 |
| 89465 | oxygen sensor | 89465-39105 |
| 89466 | Oxygen sensor pad | 89466-32010 |
| 89550 | Emission control ECU assembly | 89550-32050 |
| 89620 | Ignition assembly | 89620-32050 |
