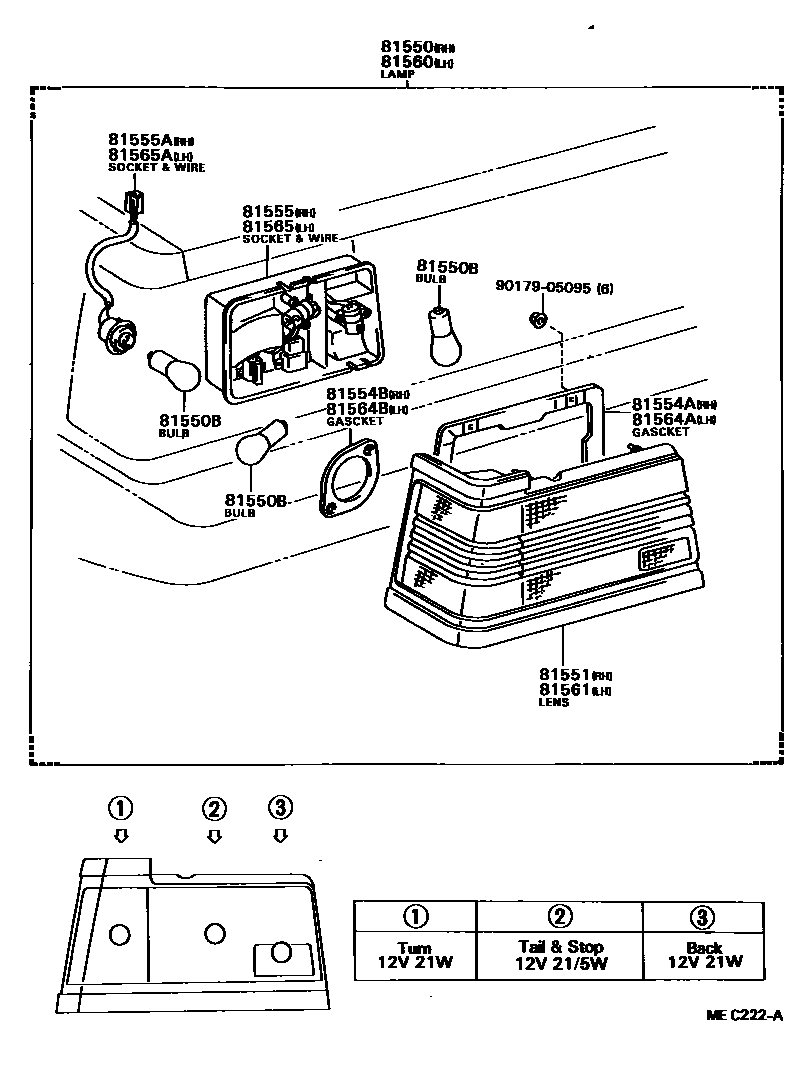

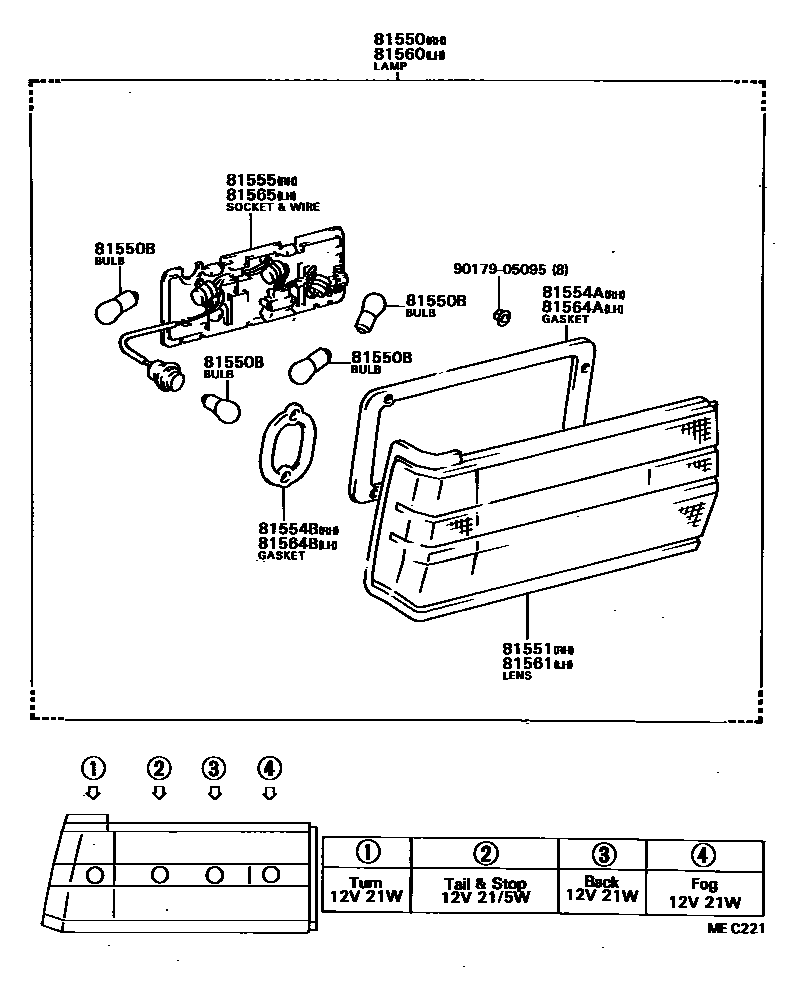

Toyota CAMRY 后组合灯 — Figure 8111
Toyota CAMRY EPC diagram 8111, 后组合灯, with 2 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81550 | Right rear combination light assembly | 81550-39725 · 81550-39745 · 81550-80224 · 81550-80225 |
| 81550B | Bulb (for rear combination lights) | 99132-11210 · 99132-21210 |
| 81551 | Right rear combination lamp shade | 81551-32030 · 81551-32031 · 81551-32070 · 81551-32071 |
| 81554A | No. 1 right rear combination lamp body gasket | 81552-32010 · 81554-32090 |
| 81554B | No. 2 right rear combination lamp body gasket | 81552-32090 · 81554-32010 |
| 81555 | Right rear combination lamp lamp holder and wiring harness sub-assembly | 81555-32030 · 81555-32031 · 81555-32070 · 81555-32091 |
| 81555A | Right rear combination lamp lamp holder and wiring harness sub-assembly | 81558-32070 |
| 81560 | Left rear combination light assembly | 81560-39685 · 81560-39705 · 81560-80229 · 81560-80230 |
| 81561 | Left rear combination lamp shade | 81561-32030 · 81561-32031 · 81561-32070 · 81561-32071 |
| 81564A | No. 1 left rear combination light lamp body gasket | 81552-32010 · 81554-32090 |
| 81564B | No. 2 left rear combination lamp body gasket | 81552-32090 · 81554-32010 |
| 81565 | Left rear combination lamp lamp holder and wiring harness sub-assembly | 81565-32030 · 81565-32031 · 81565-32070 · 81565-32091 |
| 81565A | Left rear combination lamp lamp holder and wiring harness sub-assembly | 81558-32070 |
