Toyota CAMRY 前示宽灯 — Figure 8104

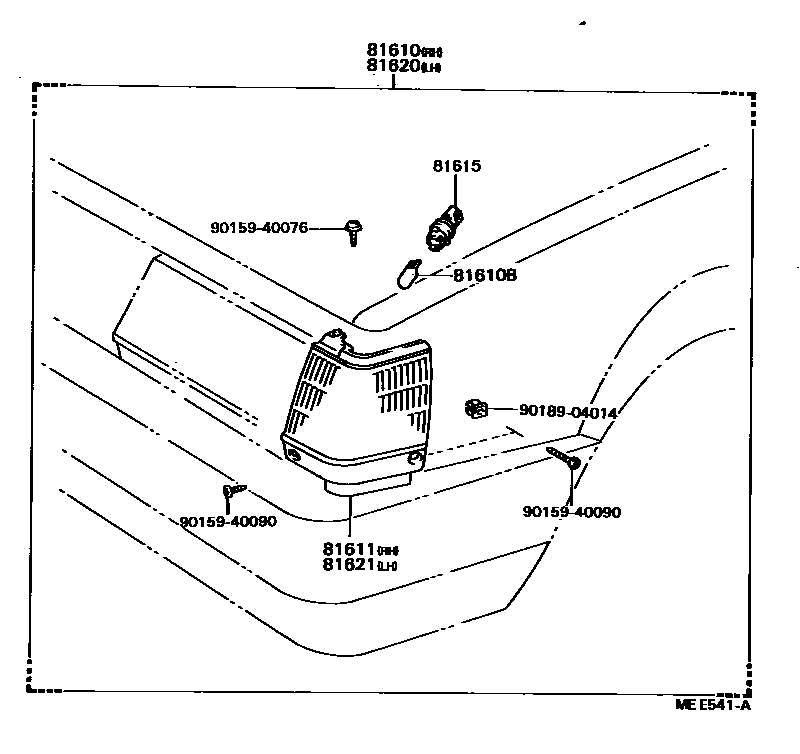

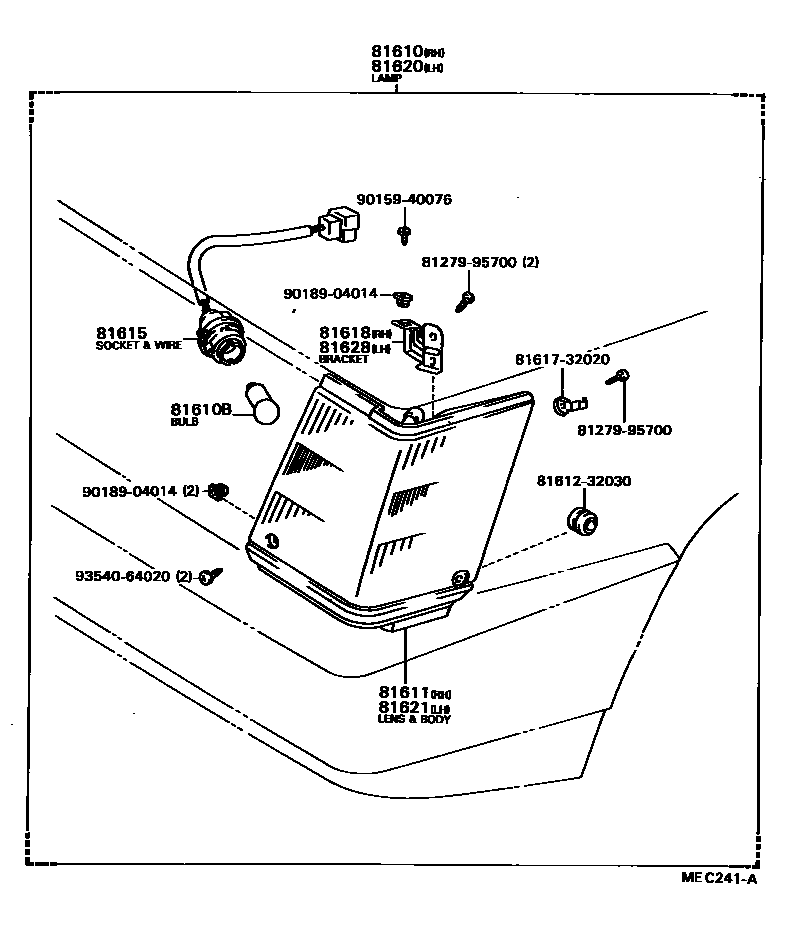

Toyota CAMRY EPC diagram 8104, 前示宽灯, with 2 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81610 | Right parking light and width indicator light assembly | 81610-39725 · 81610-39726 |
| 81610B | Bulbs (for parking lights and side lights) | 99132-11050 · 99132-12050 |
| 81611 | Right parking light and width indicator light cover | 81611-32030 · 81611-32031 |
| 81615 | Width light lamp holder and wiring harness | 81615-32030 · 81735-12180 |
| 81618 | Right parking light and width indicator bracket | 81618-32020 |
| 81620 | Left parking light and width indicator light assembly | 81620-39725 · 81620-39726 |
| 81621 | Left parking light and width indicator light cover | 81621-32030 · 81621-32031 |
| 81628 | Left parking light and width indicator bracket | 81628-32020 |
