Toyota CAMRY accelerator pedal connecting rod — Figure 7801

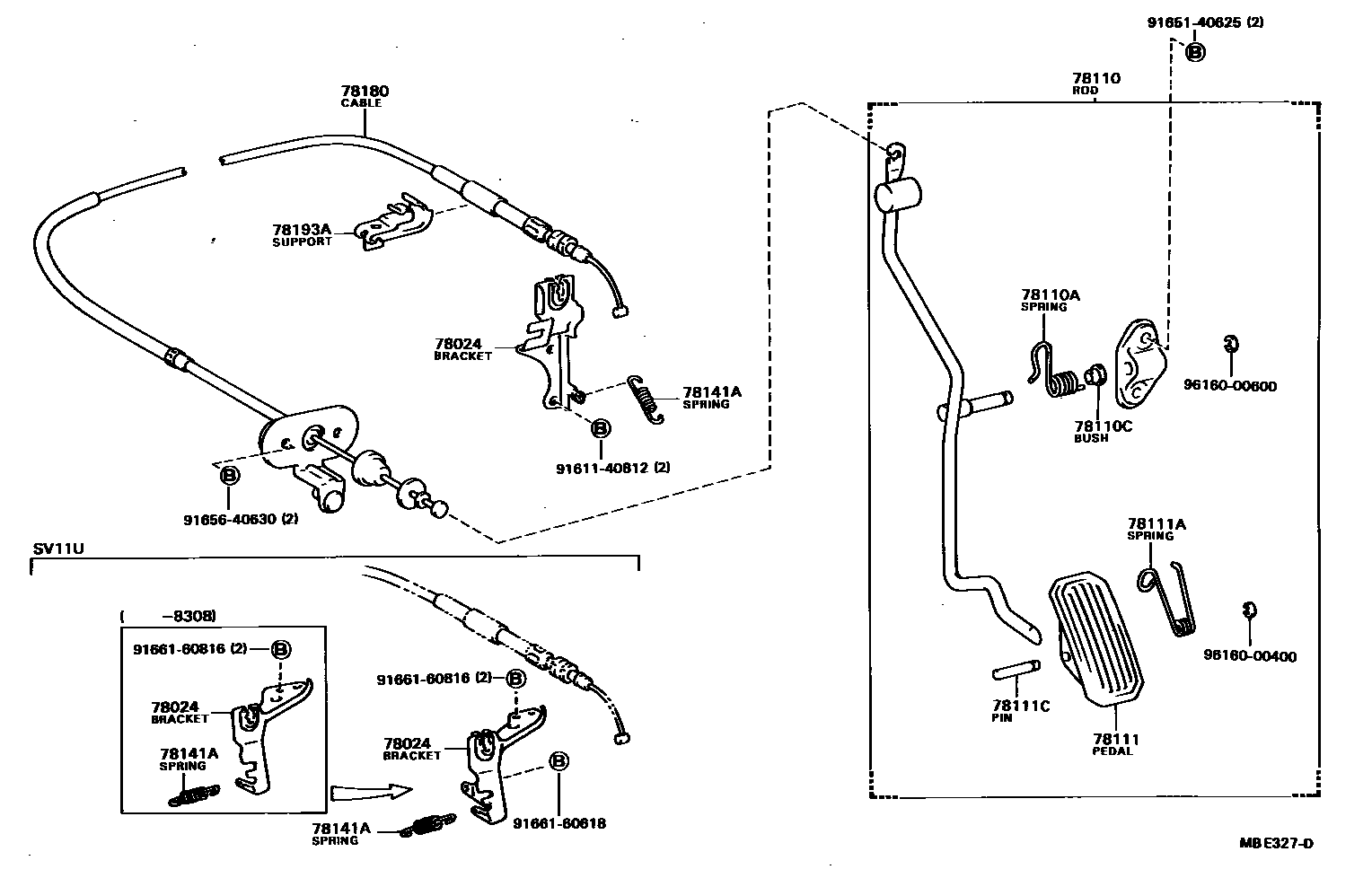

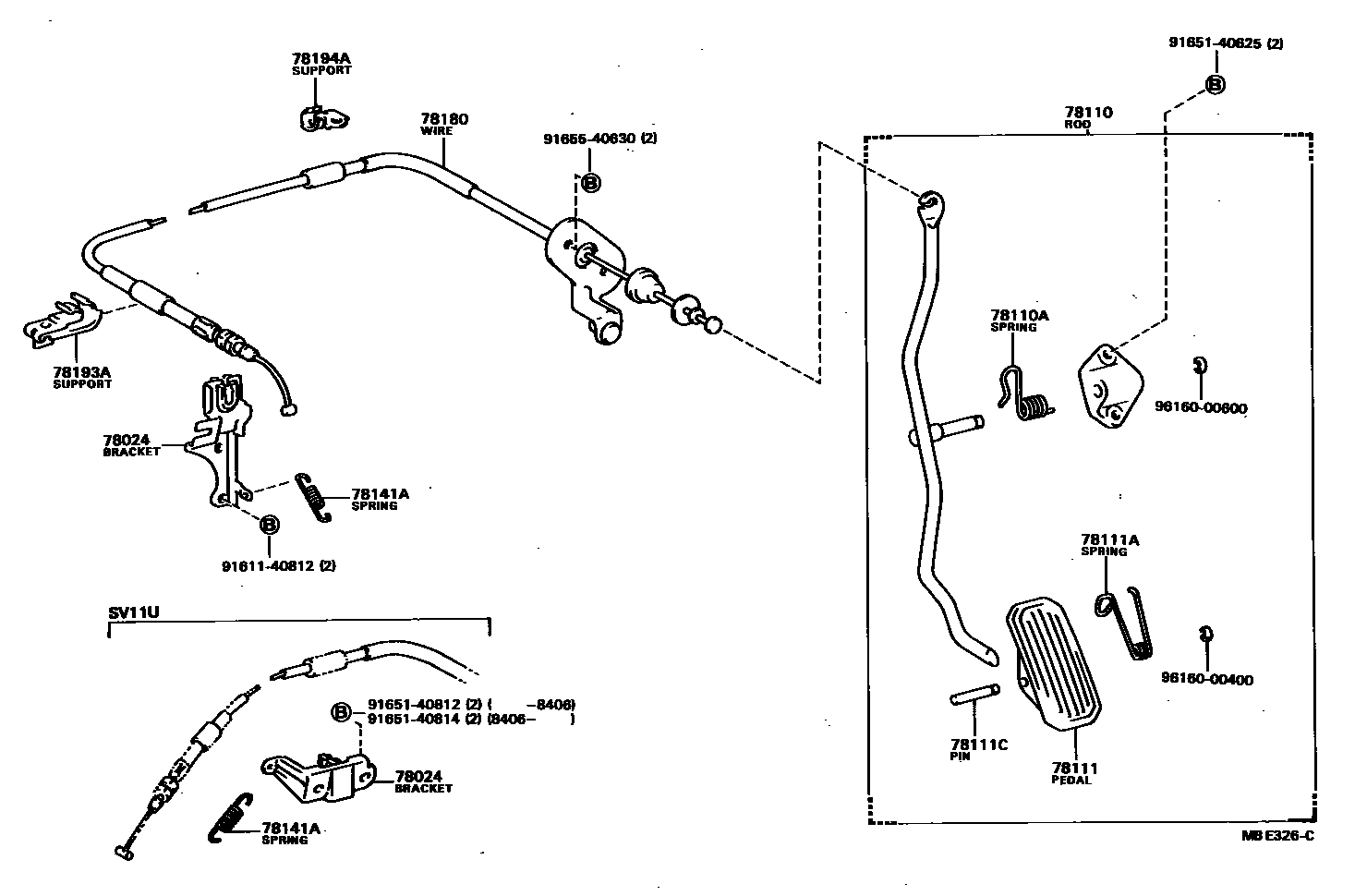

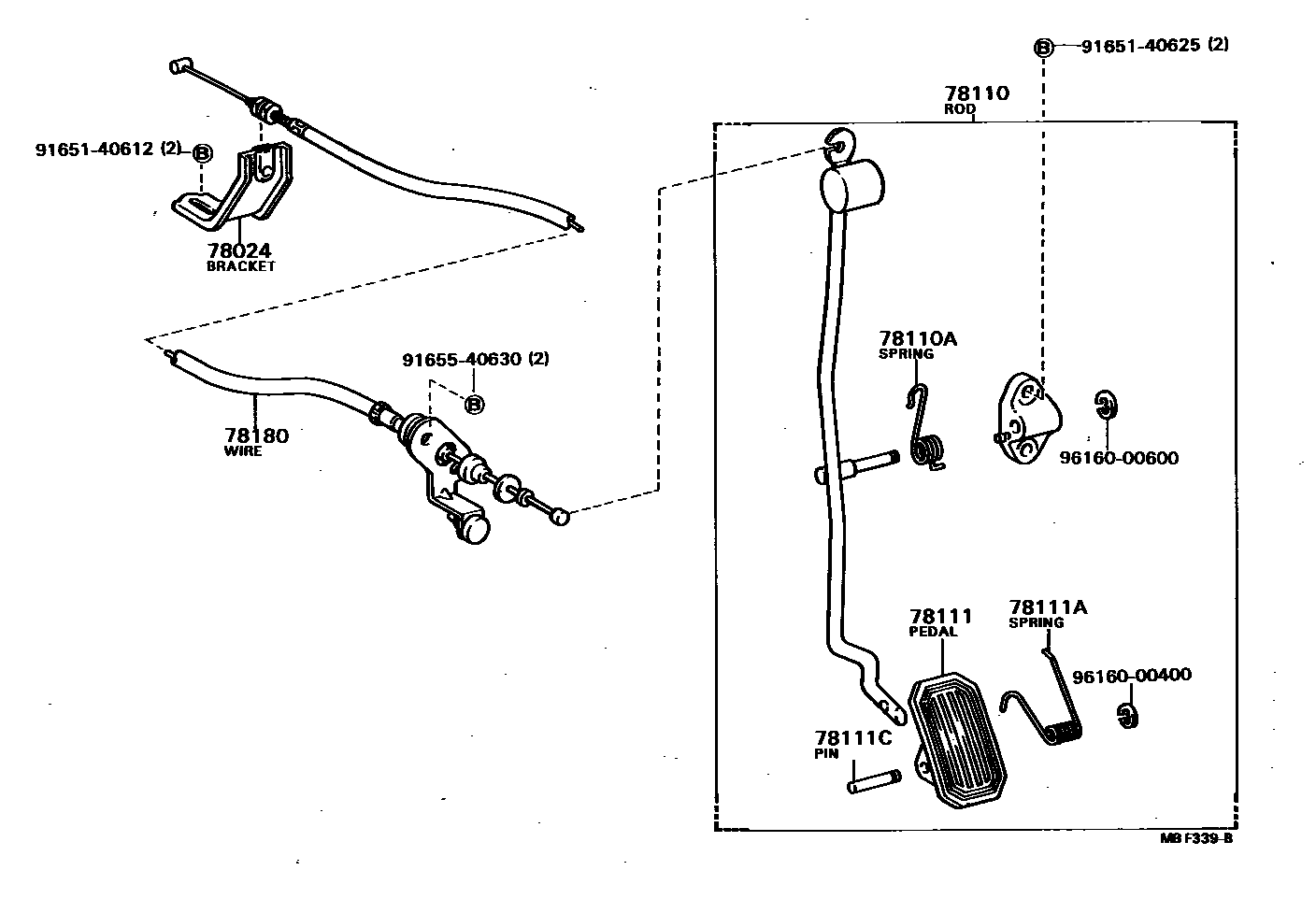

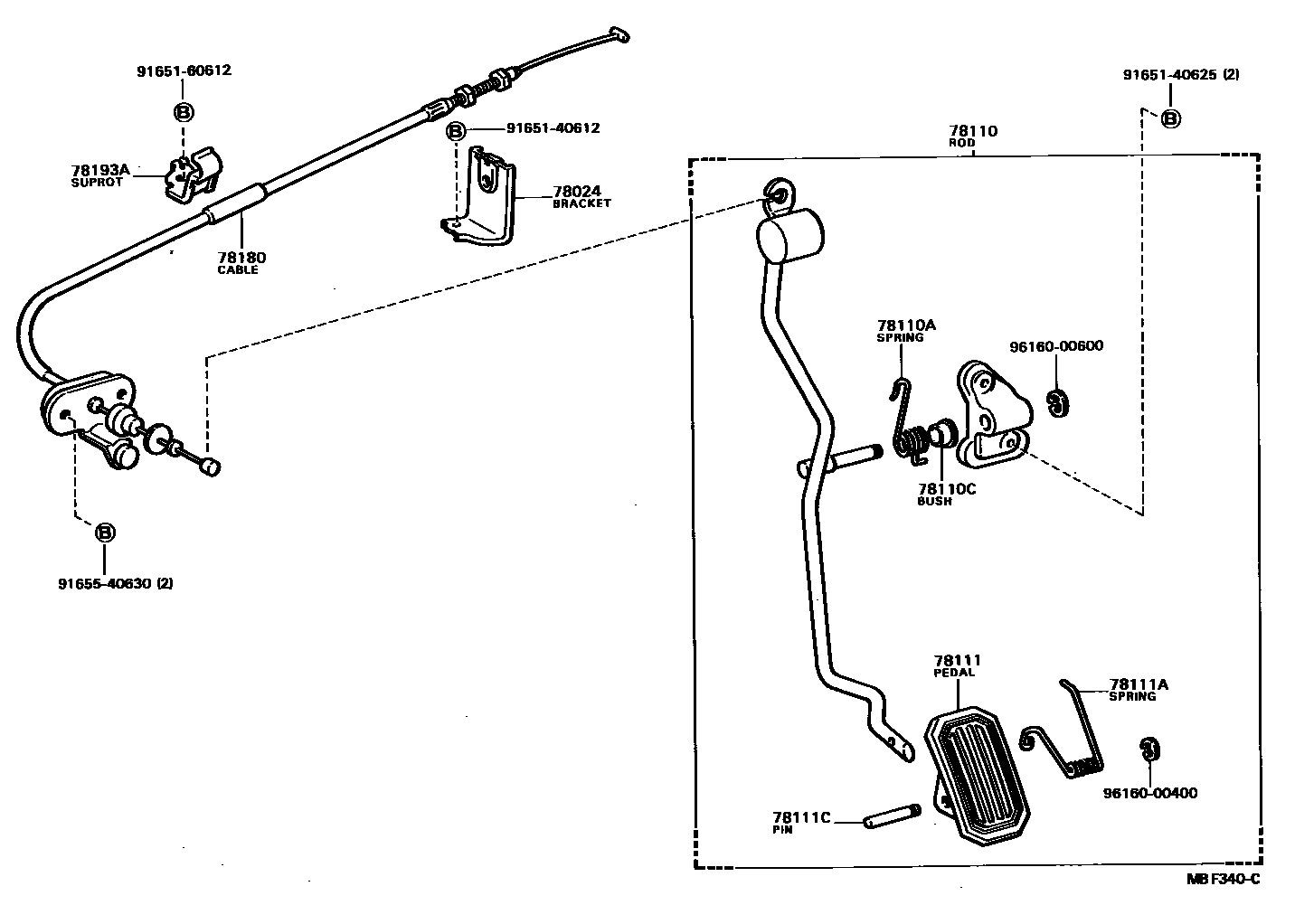

Toyota CAMRY EPC diagram 7801, accelerator pedal connecting rod, with 4 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 78024 | Accelerator pedal control cable bracket sub-assembly | 78024-32010 · 78024-32020 · 78024-32030 · 78024-32031 · 78024-32040 · 78024-32050 |
| 78110 | Accelerator pedal lever assembly | 78120-32010 · 78120-32020 · 78120-32030 · 78120-32040 · 78120-32050 |
| 78110A | Spring (for accelerator pedal lever) | 90508-18025 · 90508-23069 |
| 78110C | Bushing (for accelerator pedal lever) | 90386-12023 |
| 78111 | accelerator pedal | 78111-12100 · 78111-32010 |
| 78111A | Spring (for gas pedal) | 90508-18046 · 90508-23003 |
| 78111C | pin (for gas pedal) | 90249-05001 |
| 78141A | Tension spring (for throttle cable return spring) | 90506-12041 · 90507-10005 · 90507-10008 · 90507-10013 · 90507-11002 · 90507-11003 |
| 78180 | Throttle cable assembly | 78180-32010 · 78180-32040 · 78180-32060 · 78180-32070 · 78180-32090 · 78180-32100 · 78180-32110 |
| 78193A | No. 3 accelerator pedal control cable bracket | 78193-32010 · 78193-32030 |
| 78194A | No. 4 accelerator pedal control cable bracket | 78194-32010 |
