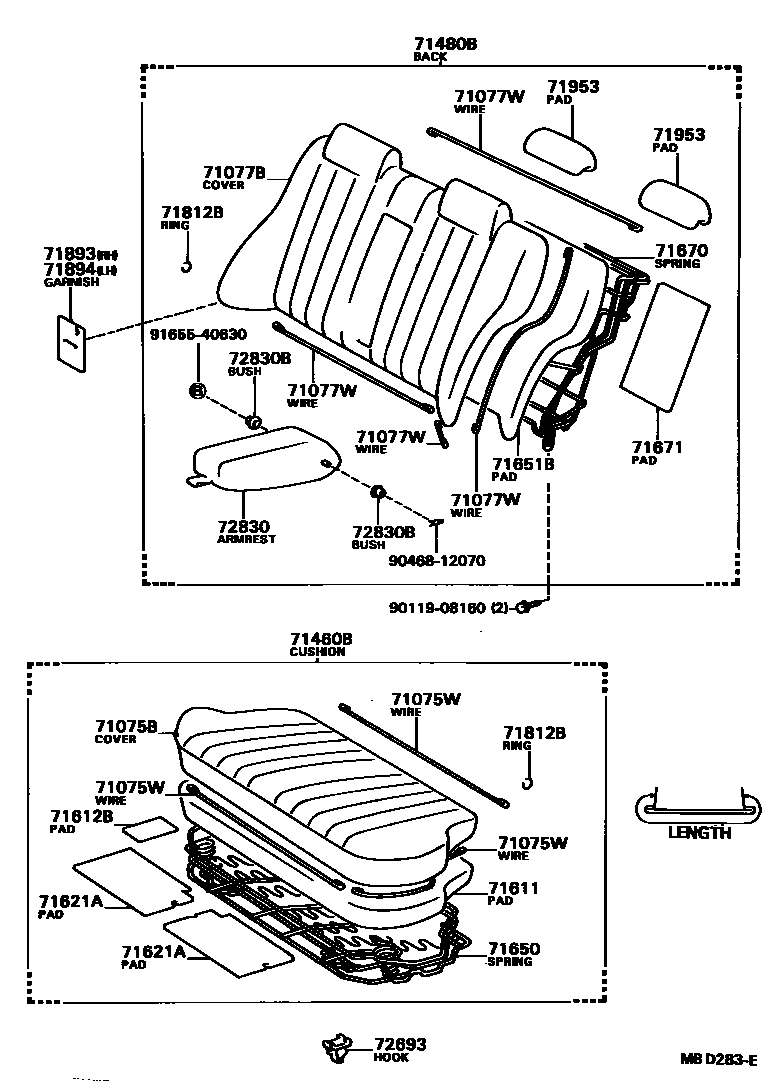

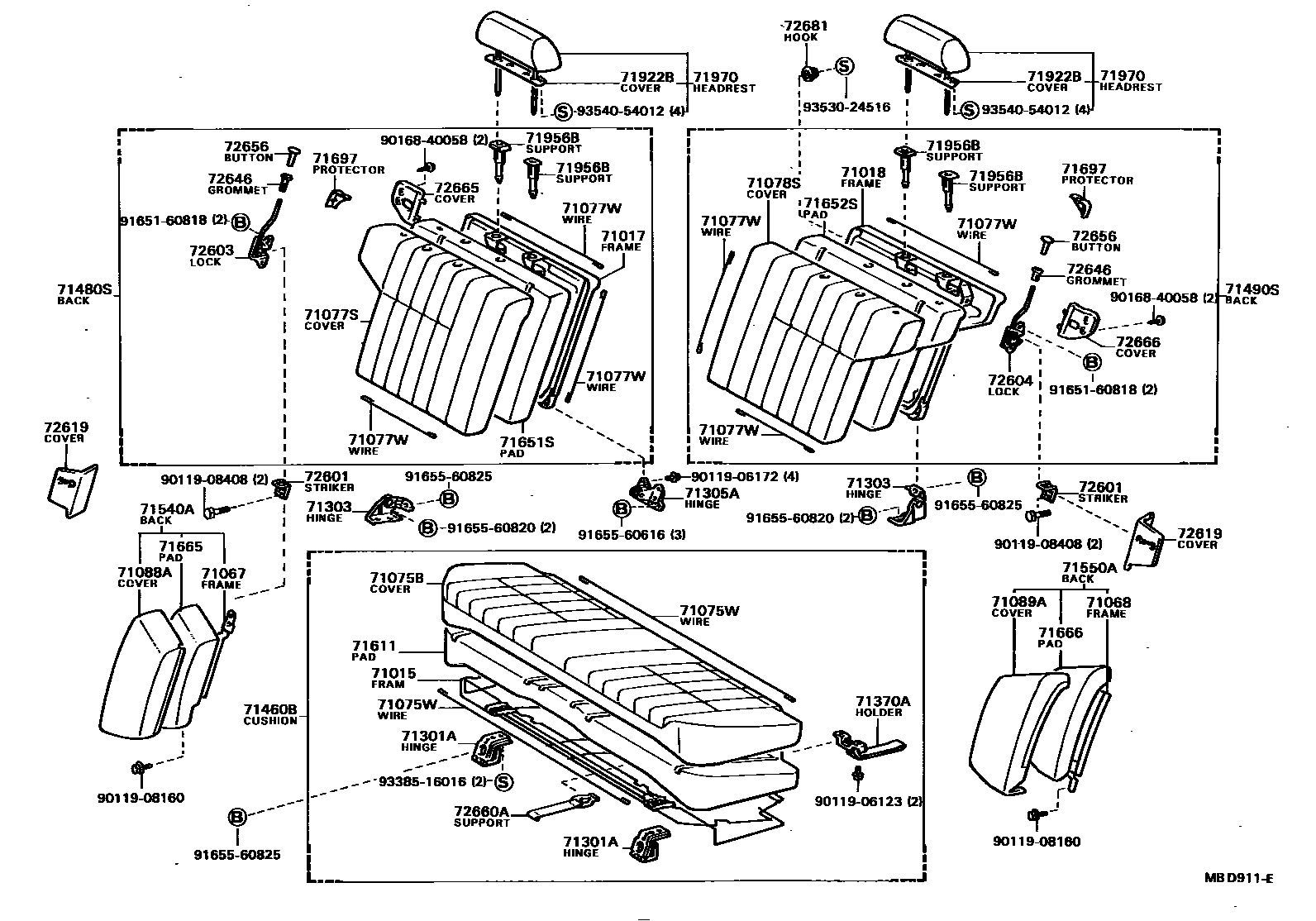

Toyota CAMRY 后排座椅和座椅滑轨 — Figure 7102
Toyota CAMRY EPC diagram 7102, 后排座椅和座椅滑轨, with 2 images and 31 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71015 | Rear seat cushion frame sub-assembly | 71015-32020 |
| 71017 | Right rear seat back frame sub-assembly | 71017-32010 |
| 71018 | Rear left seat back frame sub-assembly | 71018-32010 |
| 71067 | Rear right side seat back frame sub-assembly | 71067-32010 |
| 71068 | Rear left side seat back frame sub-assembly | 71068-32010 |
| 71075W | Rear seat cushion protective wire | 90580-20091 · 90580-20097 · 90580-20106 · 90580-20132 |
| 71077W | Rear seat backrest protective wire | 90580-20005 · 90580-20012 · 90580-20032 · 90580-20035 · 90580-20051 · 90580-20063 · 90580-20106 · 90580-20108 |
| 71301A | Rear seat cushion hinge sub-assembly | 71301-32010 |
| 71303 | Rear seat back hinge sub-assembly | 71303-32010 · 71304-32010 |
| 71305A | Rear center seat backrest hinge sub-assembly | 71305-32010 |
| 71611 | Rear seat cushion cushion | 71611-32010 · 71611-32020 · 71611-32030 · 71611-32040 · 71611-32050 · 71611-32060 · 71611-32070 · 71611-32080 |
| 71612B | Rear B seat cushion | 71524-20010 |
| 71621A | Rear seat A seat cushion muffler | 71621-32020 |
| 71650 | Rear seat cushion spring assembly | 71650-32010 |
| 71651B | Rear seat back cushions (for bench seats) | 71507-32010 · 71507-32020 · 71507-32030 · 71651-32030 · 71651-32040 |
| 71651S | Rear right seat back cushion (for split seats) | 71651-32010 · 71651-32020 · 71651-32050 · 71651-32060 |
| 71652S | Rear left seat back cushion (for split seats) | 71652-32010 · 71652-32020 · 71652-32030 · 71652-32040 |
| 71665 | Rear right seat backrest side cushion | 71665-32010 |
| 71666 | Rear left seat backrest side cushion | 71666-32010 |
| 71670 | Rear seat back spring assembly (for bench seat) | 71670-32010 · 71670-32020 · 71670-32030 · 71670-32050 |
| 71671 | Rear A seat back muffler | 71671-22090 |
| 71697 | Rear seat back edge protective cover | 71697-32010 |
| 71812B | Clip (for rear seat cushion cover) | 90468-18071 |
| 71893 | Lower side trim of rear right seat backrest | 71893-22010 |
| 71894 | Decorative part on the lower side of the rear left seat backrest | 71893-22010 |
| 71953 | Rear seat headrest cushion | 71953-32010 · 71953-32060 |
| 72601 | Rear seat lock sub-assembly | 72601-16040 |
| 72603 | Rear right seat back lock sub-assembly | 72630-32020 |
| 72604 | Rear left seat back lock sub-assembly | 72640-32020 |
| 72693 | Rear seat cushion hook | 72693-32010 |
| 72830B | Bushing (for rear seat center armrest) | 90386-06002 |
