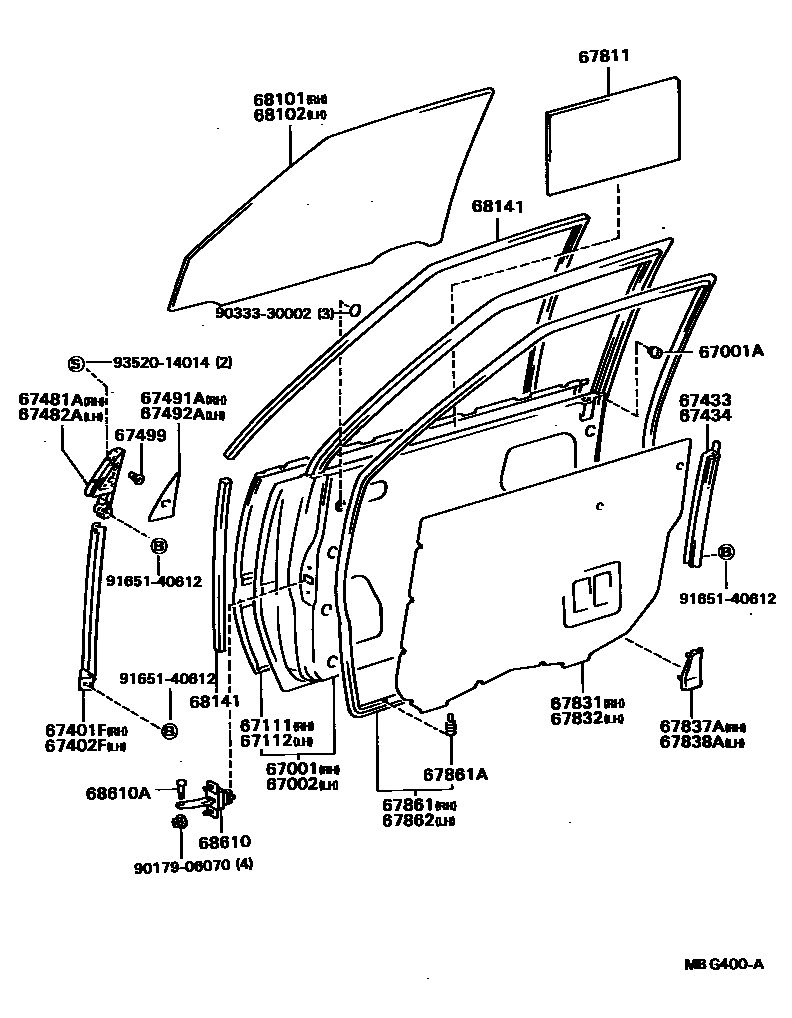

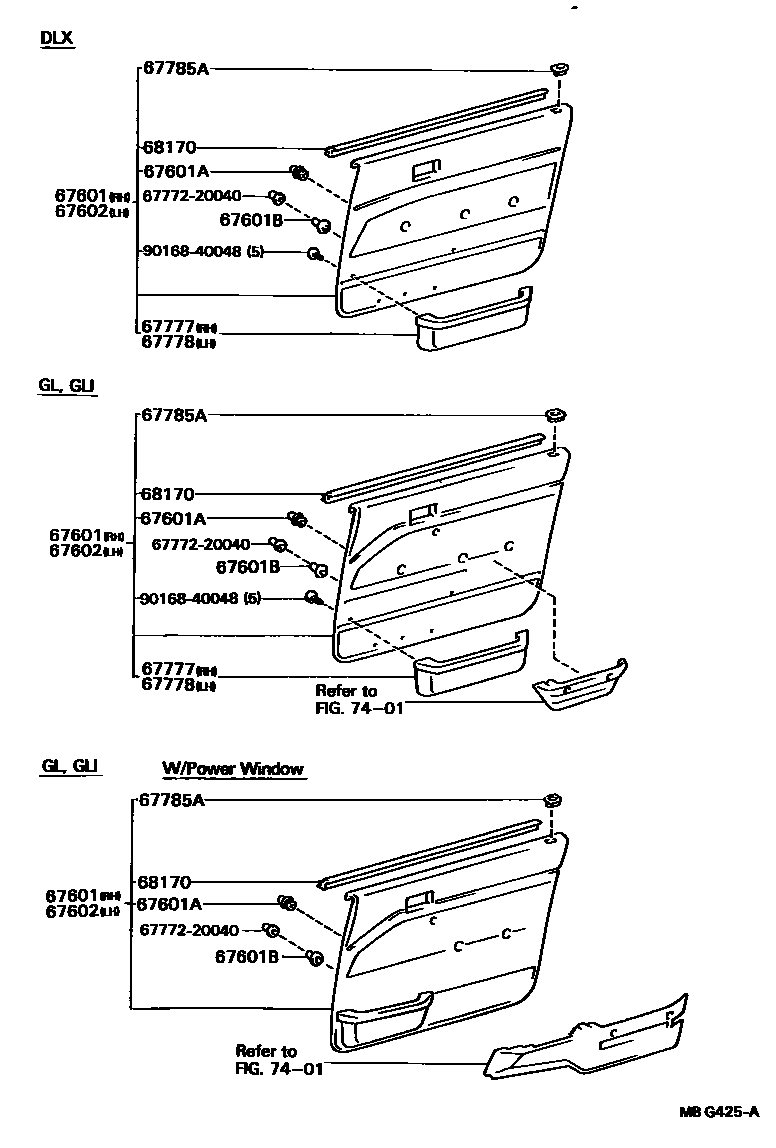

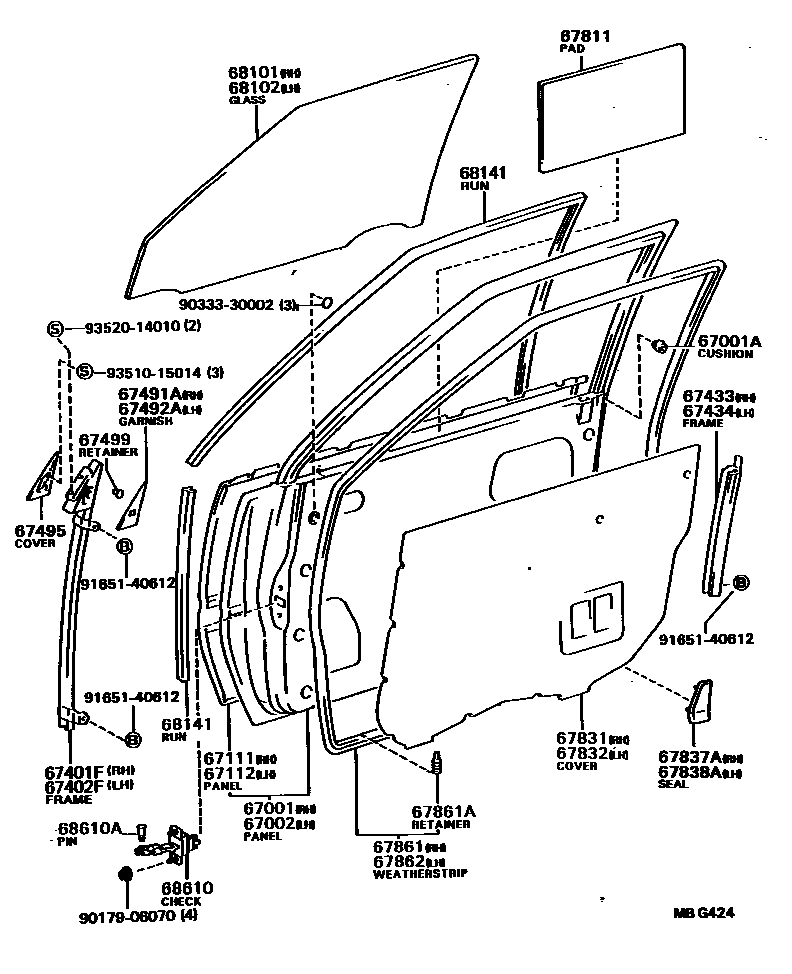

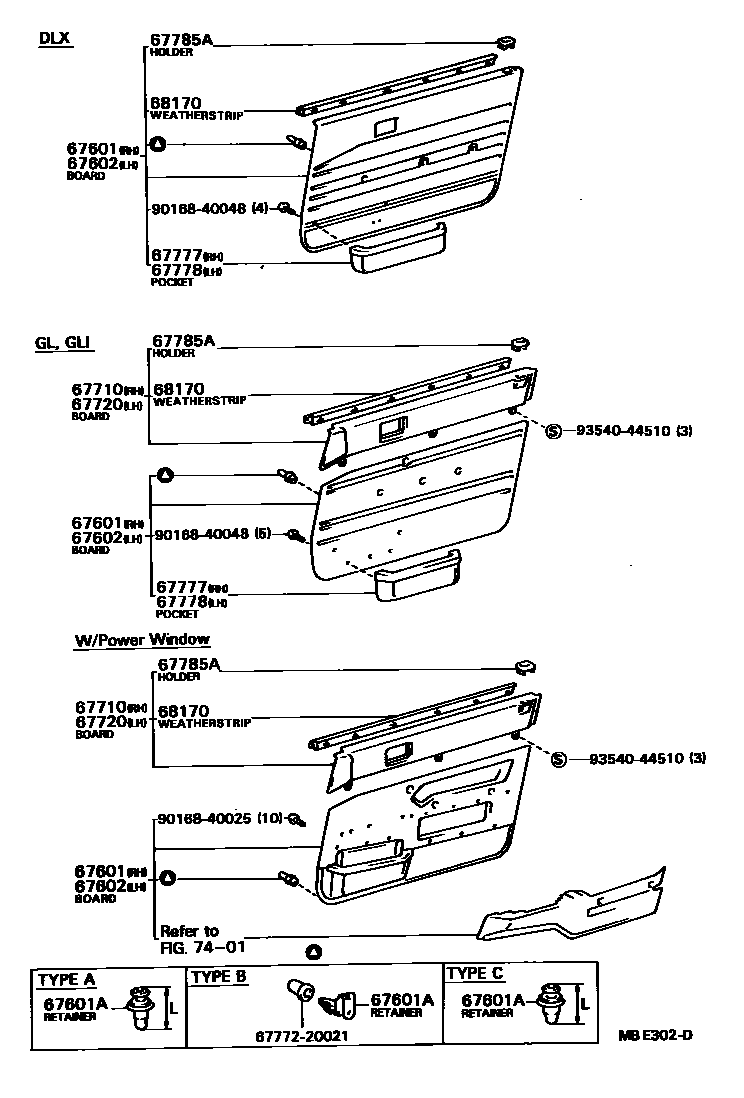

Toyota CAMRY 前门板和前门玻璃 — Figure 6701
Toyota CAMRY EPC diagram 6701, 前门板和前门玻璃, with 4 images and 31 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 67001 | Right front door panel sub-assembly | 67001-32030 · 67001-32080 · 67001-32110 |
| 67001A | Front door panel cushion | 90541-09006 |
| 67002 | Left front door panel sub-assembly | 67002-32030 · 67002-32080 · 67002-32110 |
| 67111 | Outer right front door panel | 67111-32010 · 67111-32020 |
| 67112 | Outer left front door panel | 67112-32010 · 67112-32020 |
| 67401F | Right front door front lower door frame sub-assembly | 67401-32020 · 67401-32021 · 67401-32030 · 67401-32031 · 67401-32060 |
| 67402F | Left front door front lower door frame sub-assembly | 67402-32020 · 67402-32021 · 67402-32030 · 67402-32031 · 67402-32060 |
| 67433 | Right front door window rear lower frame | 67433-32010 |
| 67434 | Left front door window rear lower frame | 67434-32010 |
| 67481A | Right front door front lower door frame seal | 67481-32060 · 67481-32070 |
| 67482A | Left front door front lower door frame seal | 67482-32050 · 67482-32060 |
| 67491A | Right front door lower door frame bracket decorative strip | 67491-32020 · 67491-32030 · 67491-32040 · 67491-32050 |
| 67492A | Left front door lower door frame bracket decorative strip | 67492-32020 · 67492-32030 · 67492-32040 · 67492-32050 |
| 67495 | Front door lower door frame upper cover | 67495-32010 · 67495-32011 · 67495-32020 · 67495-32021 · 67496-32010 · 67496-32011 · 67496-32020 · 67496-32021 |
| 67499 | Front door lower door frame bracket trim strip fixing | 67499-30010 |
| 67601A | Fixings (for front door trim) | 67771-12010 · 67771-14010 · 67771-22010 |
| 67785A | Door lock button collar fastener (for front doors) | 69751-20040 |
| 67811 | Front door silencer pad | 67811-32010 |
| 67831 | Right front door access hole cover | 67831-32010 · 67831-32020 · 67831-32030 |
| 67832 | Left front door access hole cover | 67831-32030 · 67832-32010 · 67832-32020 · 67832-32030 |
| 67837A | Right front door ventilator seal | 67837-32010 |
| 67838A | Left front door ventilator seal | 67838-32010 |
| 67861 | Right front door seal | 67861-32010 · 67861-32030 · 67861-32050 · 67861-32070 |
| 67861A | Fixing piece (for front door sealing strip) | 67868-30040 |
| 67862 | Left front door seal | 67862-32010 · 67862-32030 · 67862-32050 · 67862-32070 |
| 68101 | Right front door glass sub-assembly | 68111-32030 · 68111-32040 · 68111-32070 · 68111-32080 |
| 68102 | Left front door glass sub-assembly | 68112-32030 · 68112-32040 · 68112-32070 · 68112-32080 |
| 68141 | Front door glass lift chute | 68141-32020 · 68141-32040 · 68141-32050 · 68141-32060 · 68143-14020 · 68143-32020 · 68143-32030 |
| 68170 | Front door glass inner sealing strip assembly | 68170-32020 · 68170-32030 · 68220-32020 · 68220-32040 |
| 68610 | Front door opening limiter assembly | 68610-32010 · 68610-32030 |
| 68610A | Pin (for front door opening limiter) | 68617-12010 · 68617-22010 · 68617-90A00 |
