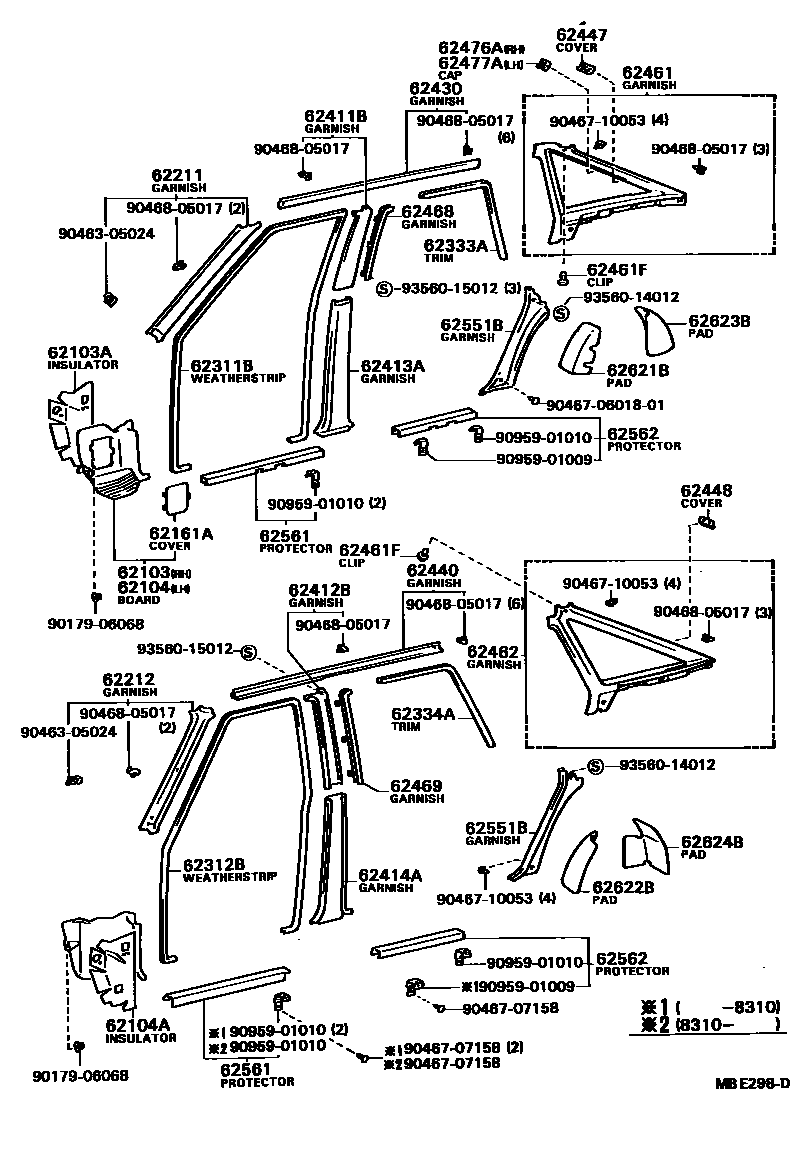

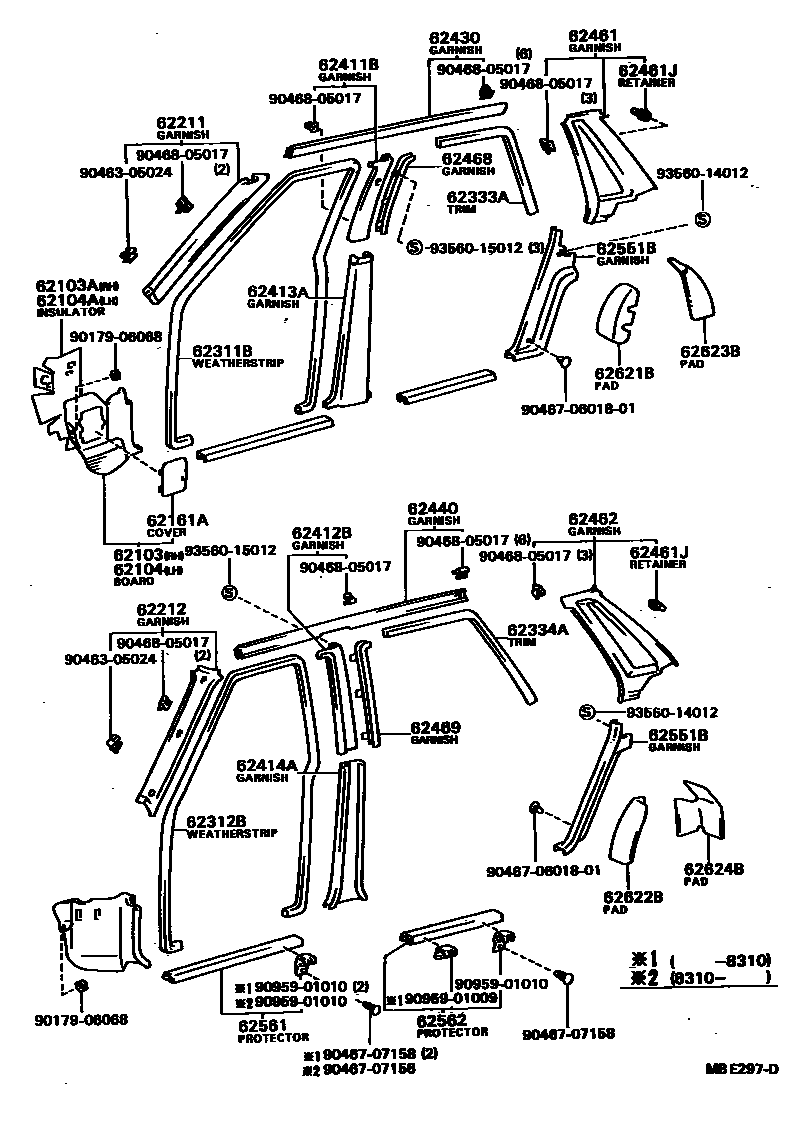

Toyota CAMRY 内饰板和车门防水胶条 — Figure 6401
Toyota CAMRY EPC diagram 6401, 内饰板和车门防水胶条, with 2 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 62103A | Right front wall side heat insulation pad sub-assembly | 62105-32010 · 62105-32020 |
| 62104A | Left front wall side heat insulation pad sub-assembly | 62106-32010 · 62106-32020 |
| 62461J | Roof side trim trim fixings | 67771-22020 |
| 62561 | Front door inner sill protection strip | 62561-32010 · 62562-32010 |
| 62562 | Rear door inner sill protection strip | 62563-32010 · 62564-32010 |
| 62621B | Right front side wheel housing lining block | 62621-32010 |
| 62622B | Left front side wheel housing lining block | 62622-32010 |
| 62623B | Right rear side wheel housing lining block | 62623-32010 |
| 62624B | Left rear side wheel housing lining block | 62624-32010 |
